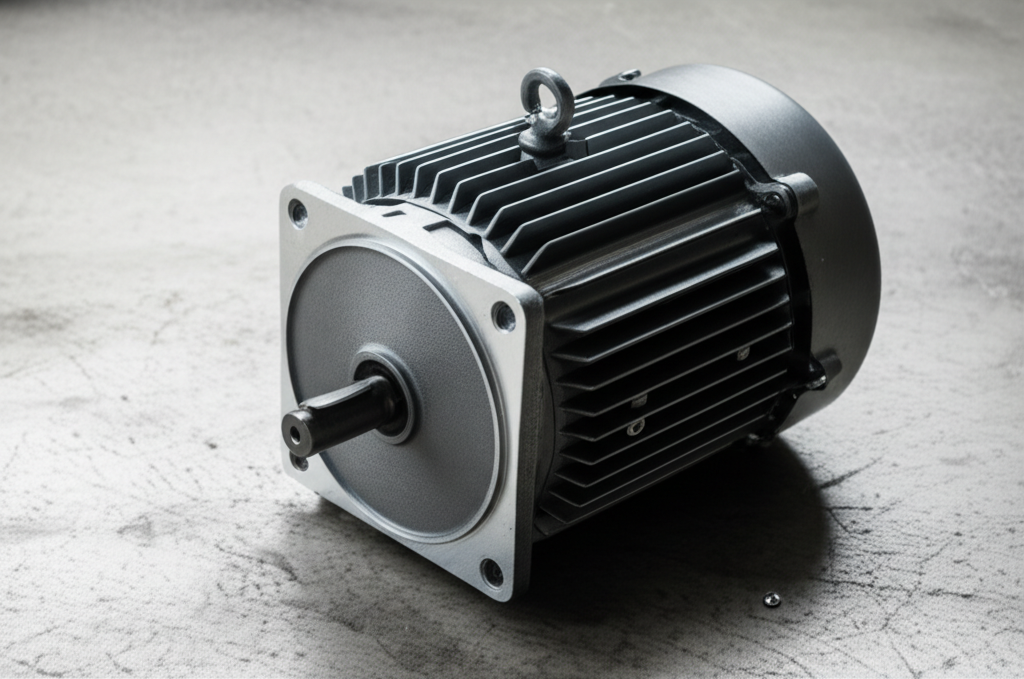

Why Is My Motor Shaking? A Comprehensive Guide to Diagnosis & Fixes

• Table of Contents
• Why Is My Motor Shaking? A Comprehensive Guide to Diagnosis & Fixes
• What is motor vibration and why should you care
• Is a shaking motor dangerous
• What are the most common mechanical causes
• What electrical faults make a motor shake
• Could the system around the motor be the real problem
• How do I diagnose motor shaking step by step
• What tools help you find the root cause
• How do I fix a shaking motor fast and right
• How much vibration is OK
• How do I keep vibration from coming back
• When do I repair and when do I replace
• How better cores and laminations cut vibration at the source
• Case studies, data, and a handy table
• Comprehensive checklist: look, listen, and measure
• FAQ
• Key takeaways
• References

A shaking motor is more than a noisy pain. It can break parts. It can waste energy. It can shut you down. In this simple guide I show you what causes motor vibration, how to diagnose it, and how to fix it fast. You will learn safe steps, real checks, and smart ways to prevent it.

I have seen motors in homes, shops, and plants. I have seen Electric Motors on pumps and fans. I have seen AC Motors, DC Motors, Induction Motors, and Synchronous Motors. When they shake you feel it in your shoes. Let’s stop that.

What is motor vibration and why should you care

Here is the problem. Motors make force as they spin. If that force is not even the motor moves and shakes. We call this motor vibration. It feels like a buzz or a thump. Sometimes it hums. Sometimes it rattles the floor.

Let’s agitate it a bit. Vibration beats up your Bearings. It loosens Motor Mounts and Fasteners. It cracks the Frame and End Bells. It bends the Shaft. It chews up the Coupling and Pulley. It makes heat in the Stator and Rotor. It hurts your Gearbox and Pump. It can lead to costly downtime.

Now the solution. You can find the root cause. You can fix it. You can keep it from coming back. This guide walks you through motor vibration causes, vibration analysis, and fast repairs. You get simple steps you can use today.

Is a shaking motor dangerous

Yes it can be. A violent shake can toss parts. It can snap a Keyway. It can break a Coupling and whip a Shaft. It can throw a Belt off a Pulley. Moving parts and live Wiring do not mix with hands. So treat it with care.

Use lockout and tagout. Power down first. Wait for the rotor to stop. Use guards. Wear PPE. If the motor trips a Circuit Breaker or Motor Protection Relay you stop and inspect. If you smell smoke or see sparks you call a pro. Safety first.

What are the most common mechanical causes

Here is the big one. Unbalanced rotors shake. If weight is not even you get Static unbalance or Dynamic unbalance. A bent Fan or Impeller can do it. Debris can stick to blades. A Broken fan blade will wobble. A Pulley wobble makes belts slap. An Unbalanced rotor drives up force and makes the whole Foundation hum.

Misalignment is next. Angular misalignment and Parallel misalignment in the Shaft or Coupling cause Axial vibration and Radial vibration. Hot and cold growth can twist things. A bad install can set it up wrong. A drift in the Motor Baseplate can move feet.

Worn or damaged bearings cause rumble. You may hear grinding. You may feel heat. Improper lubrication and dirt kill Ball Bearings and Bushings. Over-tightened belts push side load. Then the Bearing fails. You also see trouble from Loose bolts, Loose motor mounts, and Soft foot where one foot does not sit flat.

A Bent shaft motor can shake like a paint mixer. Dropping a motor can do that. A Coupling that is worn or the wrong type can shake too. A Keyway that is loose allows play and knocks.

What electrical faults make a motor shake

Power problems can shake a motor. Phase unbalance motor and Voltage fluctuations motor cause uneven pull. You see Electrical unbalance motor with high current on one leg. That makes heat. It makes hum. Harmonics in power supply vibration can buzz the frame. High current motor vibration shows up as torque ripple.

Inside the motor you can see Stator winding issues vibration like Short circuit motor winding, Open circuit motor winding, or a Motor ground fault shaking. Insulation degradation motor vibration makes this worse over time. In Induction Motors you can get Rotor bar cracks vibration and Broken rotor bars detection with Motor current signature analysis. End ring defects motor and Magnetic unbalance motor can add to the shake. An Air gap eccentricity motor pulls off center and makes noise.

In DC Motors, Worn brushes DC motor and Commutator issues vibration cause chatter. A dirty Commutator can arc. A bad seat on Brushes can spark and make torque jump.

Could the system around the motor be the real problem

Yes. It is not always the motor. Resonance in motor systems is a big one. When speed matches the Resonance frequency determination of the frame or the Mounting pad the shake grows fast. It can crack a base. Low Stiffness issues motor or poor Damping issues motor make it worse. Poor Foundation issues motor shaking let the base sing.

On Pumps you can get Cavitation in pumps vibration. Vapor bubbles pop at the Impeller. That makes a hard rattle. It can eat the metal. Overload motor shaking happens when the load is heavy. A jam can stall a rotor and shake the drive.

Poor setup of Belt drive vibration diagnosis and Coupling problems motor vibration can act like a drum. A loose Shaft keys loose can click. A Gearbox vibration causes will thump. Dust on a Fan can cause Fan blade unbalance.

How do I diagnose motor shaking step by step

Problem. You feel the shake. You are not sure why. You need a plan.

Agitate. If you guess you can waste parts. You can swap what is not broken. You can lose time.

Solution. Follow this simple flow.

• Safety first. Disconnect power. Lockout and tagout. Make sure the Controller is off. Confirm the Circuit Breaker is open. Use a meter and check for Voltage.
• Visual check with power off. Look for Loose bolts motor vibration. Check Motor mounts. Look for Cracked welds or bent guards. Check Coupling wear motor. Check Belts for cracks and Belt tension incorrect. Spin the Pulley and look for Runout measurement motor issues. Check the Fan for Dust accumulation motor fan or Broken fan blades.
• Hands on check with power off. Turn the Shaft by hand. Feel for rough spots or binds. Check Shaft play axial and radial. Check for Soft foot by loosening and re-tightening bolts across corners.
• Power on check if safe. Listen for humming or squeal or knock. A DC motor humming and shaking may point to Commutator or Brushes. A Fan motor vibrating noise can point to blades. A Compressor motor high vibration or Pump motor shaking excessively often points to unbalance or cavitation.
• Basic electrical checks. A qualified tech checks Voltage and Current on each phase for a 3-phase AC Motor. Check for Phase unbalance motor and High current motor vibration. Tighten Loose electrical connections motor in the Terminal Box and Conduit. Use an Insulation Tester for the Stator. Test for Open circuit motor winding or Short circuit motor winding.
• If needed step into advanced diagnostics. Use Vibration Sensor and an Accelerometer. Record speed. Record Frequency, Amplitude, and Phase. Use Laser alignment motor tools. Use Thermographic Camera for hot spots. Use Motor current signature analysis and Magnetic field analysis motor for deeper faults.

What tools help you find the root cause

You can do a lot with simple tools. A Multimeter and a Torque wrench help you check power and bolts. A straight edge and feeler gauge help you spot Soft foot. A strobe light helps you see Pulley wobble and Fan flutter.

You get more insight with smart tools. A Vibration Analyzer with an Accelerometer shows peaks at 1X, 2X, and bearing bands. It helps you spot Rotor dynamic imbalance, Critical speed motor, Torsional vibration motor, and Axial vibration motor. A Laser Alignment Tool makes Precision laser alignment faster. A Thermographic Camera shows hot Bearings, Wiring, Controller lugs, and Overheating motor shaking. Oil analysis motor vibration can spot Bearing wear. Acoustic emission motor tools can hear cracks early.

For induction motors Motor current signature analysis helps you catch Broken rotor bars detection, End ring defects motor, and Air gap eccentricity motor. If you use a Variable Frequency Drive (VFD) you can also check for Harmonics in power supply vibration and filter settings.

How do I fix a shaking motor fast and right

Start with what you can see and tighten. Tighten Motor mounts and Foundation bolts. Fix Soft foot with shims. Align the Shaft with Laser alignment. Replace a worn Coupling. Set Belt tension incorrect to the right level. Replace Worn belts and bad Pulleys.

If you have Unbalance, do a Balancing job. Clean the Fan. Replace Broken fan blades. Balance the Impeller. Balance the Rotor on a Balancing Machine. If the Shaft is bent you repair or replace it. If Bearings rumble you replace them. Use the right Lubricant with the right amount. Do not over-grease.

For electrical faults fix connections. Balance loads. Fix Voltage fluctuations motor with better feeds. If you find Stator winding issues vibration you may need a rewind. If you see Broken rotor bars or End ring defects you repair or replace the rotor. For DC Motor issues you dress the Commutator and change Brushes.

If the system is the cause you move the speed away from Resonance. You add Vibration isolators motor and Dampers for motor vibration. You stiffen the base. For Cavitation you adjust suction and flow. For Overload you lighten the load or upsize the motor.

How much vibration is OK

Some shake is normal. A small Slight motor vibration normal hum will happen. You can use ISO vibration standards motor, like ISO 10816 and ISO 20816, to judge Motor vibration limits and Acceptable motor vibration levels. You can also use a Vibration severity chart from your analyzer.

In simple terms lower is better. Watch for jumps. Watch for trends. Big steps mean a fault is growing. We call that Serious motor vibration signs. Act early and you save Motor lifespan impact vibration and Energy consumption vibration.

How do I keep vibration from coming back

Use Preventative maintenance motor. Clean the Fan. Lube the Bearings on time. Keep Belts in shape. Tighten Fasteners and check Soft foot. Keep logs. Use a checklist.

Use Predictive maintenance motor too. Add Continuous vibration monitoring with sensors. Plan Thermography motor issues and Motor current signature analysis checks. Use Oil analysis motor vibration for critical units. Set alerts for Motor protection relay tripping. When you see change you act.

Finally install it right. Use a flat, rigid Foundation. Shim feet. Use Precision laser alignment. Set up the Power Supply with good balance. Follow the maker’s guide for Installation and Commissioning.

When do I repair and when do I replace

I follow a simple rule. If damage is small and the motor is young I repair. If the core parts are bad or the cost is high I replace. If the Stator is burnt and the Rotor is cracked I look at a new unit. If a rewind and re-core cost near a new motor I go new. If uptime is key I swap fast and rebuild a spare.

Costs vary. Motor repair cost vibration depends on parts and time. When to replace a motor depends on age, power, duty, and load. A good check helps you plan. Keep a spare on the shelf for critical drives.

How better cores and laminations cut vibration at the source

Here is a smart move. Start with a better core. The quality of the Stator and Rotor stack sets the tone for smooth force. Good laminations mean tight stacks. Tight stacks mean even Air gap and Magnetic field. Even fields mean less Magnetic unbalance motor and less hum.

You can spec high quality stator core lamination. You can also match it with a balanced rotor core lamination. Choose precise electrical steel laminations to cut loss and heat. If you build or source motors at scale then partner for complete motor core laminations. Better cores reduce noise, cut heat, and keep the Air gap eccentricity motor low.

If you run BLDC drives you can also look at BLDC stator stacks with tight tolerances. For Transformers you can spec Transformer lamination core as well. Quality metal and tight fit pay off. Your motor runs smoother. Your bearings last longer. Your energy bill drops.

Case studies, data, and a handy table

I once helped a plant with a large Pump. The Motor had a bad Soft foot. Vibration was high. We shimmed feet. We aligned the Coupling with a laser. We balanced the Impeller. Vibration fell by more than half. Bearings ran cool. No more trips.

Another shop had a Conveyor with Resonance. Every few months it cracked brackets. We ran a coast-down test. We found a peak at the natural frequency. We added stiffeners and changed speed. Failures stopped.

Here is a simple table you can use.

Note: Prevalence varies by site. In many plants Unbalance is 30–35% of all cases. Misalignment is 20–25%. Bearing issues are 15–20%. Source trends match common industry reports.

Comprehensive checklist: look, listen, and measure

Use this broad checklist to cover your bases. It maps to common terms you will hear in shops and in manuals.

Mechanical checks:

• Unbalance: Unbalanced rotor causes, Fan blade unbalance, Dynamic unbalance, Static unbalance, Rotor dynamic imbalance, Balance quality grades
• Alignment: Shaft misalignment symptoms, Angular misalignment, Parallel misalignment
• Bearings: Bearing failure signs motor, Bearing life estimation vibration, Improper lubrication motor
• Structure: Loose motor mounts, Loose bolts motor vibration, Motor baseplate vibration, Soft foot motor
• Shafts and keys: Bent shaft motor, Shaft keys loose, Runout measurement motor
• Belts and pulleys: Belt drive vibration diagnosis, Pulley wobble, Belt tension incorrect, Over-tightened belts
• Fans and rotors: Broken fan blades, Dust accumulation motor fan
• Gear and couplings: Gearbox vibration causes, Coupling problems motor vibration, Coupling wear motor, Keyway wear allowing play
• Mounting and base: Foundation issues motor shaking, Mounting pad vibration, Stiffness issues motor, Damping issues motor
• Modes: Axial vibration motor, Radial vibration motor, Torsional vibration motor, Critical speed motor
• Isolators: Vibration isolators motor, Dampers for motor vibration

Electrical checks:

• Power: Phase unbalance motor, Voltage fluctuations motor, High current motor vibration, Power quality issues
• Connections: Loose electrical connections motor, Terminal Box, Wiring, Conduit
• Windings: Stator winding issues vibration, Short circuit motor winding, Open circuit motor winding, Motor ground fault shaking, Insulation degradation motor vibration
• Rotor: Broken rotor bars detection, Rotor bar cracks vibration, End ring defects motor, Air gap eccentricity motor
• Magnetics: Magnetic unbalance motor, Magnetic field analysis motor
• Control: Variable frequency drive vibration, Harmonics in power supply vibration, Motor protection relay tripping
• Tests: Motor current signature analysis, Thermography motor issues, Oil analysis motor vibration, Acoustic emission motor, Vibration analysis motor, Runout measurement motor
• Components: Controller, Circuit Breaker, Overload Protector, Voltage, Current

System and application:

• Resonance: Resonance in motor systems, Resonance frequency determination
• Pumps: Cavitation in pumps vibration, Impeller
• Loads: Overload motor shaking
• Install: Improper installation/Foundation, Laser alignment motor
• Limits: Motor vibration limits, ISO vibration standards motor, Vibration severity chart, Acceptable motor vibration levels, Serious motor vibration signs, Slight motor vibration normal
• Maintenance: Preventative maintenance motor, Predictive maintenance motor, Motor diagnostics tools
• Life and cost: Motor repair cost vibration, Motor lifespan impact vibration, Energy consumption vibration, When to replace a motor

Appliance and sector cues:

• Washing machine motor shaking, Car engine shaking at idle, Industrial motor vibration problems, HVAC System, Industrial Machinery, Compressor, Generator, Fan motor vibrating noise, Pump motor shaking excessively

Core and materials:

• Stator, Rotor, Shaft, Frame, End Bells, Flywheel, Controller, Bushings, Keyway, Impeller, Fan, Pulley, Belt, Gearbox, Motor Mounts, Foundation
• Tools and sensors: Vibration Sensor, Accelerometer, Vibration Analyzer, Laser Alignment Tool, Balancing Machine, Multimeter, Insulation Tester, Thermographic Camera
• Power side: Power Supply
• Protection: Overload Protector
• Materials: Lubricant
• Box and path: Terminal Box, Conduit

You can see how wide the checklist is. Use it to guide your plan.

FAQ

• Why does an AC motor hum and shake
• Often due to Electrical unbalance motor or Harmonics in power supply vibration or Unbalance. Check Voltage, Current, and balance the rotor.
• What is soft foot
• A condition where all four feet do not sit flat. It twists the frame and causes Motor baseplate vibration. Shim it flat.
• Can a VFD cause vibration
• Yes if settings cause Variable frequency drive vibration or add high Harmonics. Use filters and tune the drive.
• How do I know if resonance is the issue
• If vibration spikes at a certain speed and drops above or below then you likely hit Resonance. Stiffen the base or shift speed.

Key takeaways

• A shaking motor points to Unbalance, Misalignment, Bearing wear, loose parts, or electrical faults
• Start with safety then inspect, test, and measure with the right tools
• Fix the basics first then balance, align, and repair parts as needed
• Watch ISO vibration standards and keep trends low
• Use Preventative and Predictive care to stop repeat faults
• Better stator and rotor cores and tight electrical steel laminations reduce vibration at the source

References

• ISO 10816 and ISO 20816 series. Mechanical vibration. Evaluation of machine vibration by measurements on non-rotating parts
• NEMA MG-1. Motors and Generators. National Electrical Manufacturers Association
• IEEE papers on Motor Current Signature Analysis for induction motors
• SKF Bearing damage and failure analysis. SKF Group
• EPRI and industry predictive maintenance reports on vibration analysis and reliability engineering
