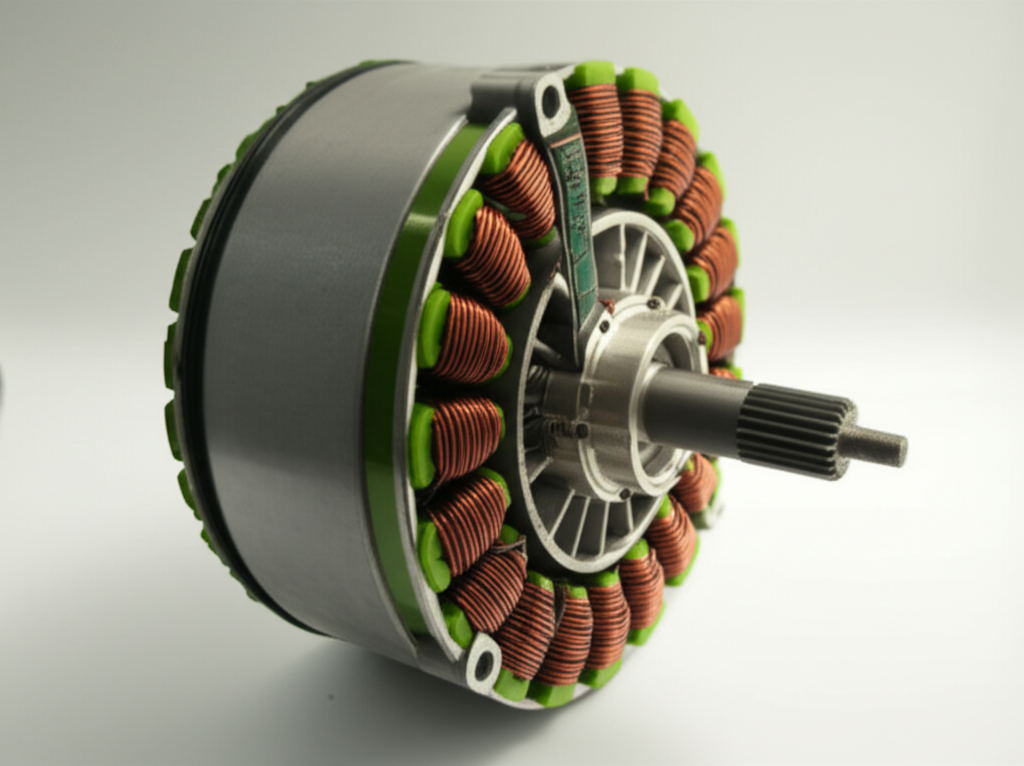

Where Is The Stator Located? Your Guide to Finding This Essential Component

Table of contents

• Introduction: The stator in plain English
• The universal rule: Fixed to the frame and paired with a rotor
• How the stator sits in real machines
• Automotive alternators
• Electric motors: AC, DC, induction, synchronous, and brushless
• Motorcycles, ATVs, outboards, snowmobiles, lawn mowers, and small engines
• Washing machines and household appliances
• Generators and wind turbines
• E-bikes, scooters, and power tools
• Why the stator’s location matters for function and efficiency
• How I identify a stator fast: visual cues and access points
• Troubleshooting and testing: using a multimeter without guesswork
• Quick cheat sheet: “Where do I open it to find the stator?”
• Real-world stories from my bench
• FAQs I get all the time
• Final thoughts: Once you see the pattern you can’t unsee it

Introduction: The stator in plain English

When I first learned about electric motors and generators I kept stumbling over one simple question. Where is the stator located? After opening alternators, washing machine motors, motorcycle engine covers, and even a cranky old generator I noticed the same pattern. The stator always lives in the fixed outer structure. It doesn’t spin. It either surrounds the rotor or sits inside a rotor that spins around it.

If you only remember one thing remember this. The stator is the stationary part of a rotating electrical machine. That includes motors, generators, and alternators. It bolts to the frame or housing. The rotor spins next to it. That physical relationship sets up magnetic fields that either make electricity or make motion.

In this guide I’ll show you where to find a stator in common machines, why it always sits where it does, and how to identify it fast. I’ll share simple tests you can run with a multimeter, the symptoms I look for when a stator fails, and a few stories from repairs that taught me hard lessons.

The universal rule: Fixed to the frame and paired with a rotor

Here’s the core concept that never changes regardless of size or type.

• The stator is fixed to the outer casing or frame.
• The rotor is the rotating component that moves relative to the stator.
• The air gap between them is small which keeps the magnetic field strong and efficient.

Imagine a donut and a rolling pin. The donut stays put. The rolling pin spins inside the hole or sometimes the donut sits inside a spinning ring. Either way one part stays still. That’s your stator. The other part spins. That’s your rotor. This geometry holds true in an alternator stator, a generator stator, an induction motor stator, and a brushless motor stator.

Why does the stator need to be fixed? Because it carries windings and a laminated iron core that create or react to a magnetic field. That field needs a stable home and a tight mechanical path for heat to flow out. The frame gives it both.

How the stator sits in real machines

I’ll walk you through where I find the stator in the machines people ask me about most. You’ll see the same pattern repeat with small differences in access or shape.

Automotive alternators

• Location: Inside the main aluminum housing, bolted as a ring that encircles the rotor. You can see the stator core and windings once you split the alternator case.
• Function: The rotor carries field coils or permanent magnets and spins inside the stator. The stator windings produce AC which the rectifier converts to DC for the battery and vehicle loads.
• Clues: Look for a thick ring of laminated steel with copper windings around it. Leads exit toward the rectifier bridge and voltage regulator. Many charging system issues trace back to stator winding faults or heat damage.

I’ve replaced plenty of alternators where the failure point was cooked stator windings. Industry data suggests alternator failures make up a noticeable chunk of electrical system issues in cars. Heat and electrical stress push the stator hard which is why its sturdy mounting and airflow matter.

Electric motors: AC, DC, induction, synchronous, and brushless

Across industrial motors, HVAC fans, pumps, compressors, and EV traction units the stator sits as an integral part of the motor frame.

• AC induction motor stator: Pressed into the frame with slots that hold the copper windings. The rotor is a squirrel-cage design that spins inside.
• Synchronous motor stator: Similar stator placement. The rotor locks in step with the frequency.
• DC motor stator: In brushed DC motors you may see field windings on the stator or permanent magnets attached to the housing. The rotor carries the armature and commutator.
• Brushless DC (BLDC) motor stator: The stator carries the windings. The rotor carries permanent magnets. The controller drives the stator phases to create a rotating magnetic field.

In all these cases the stator is the stationary part of a motor. It sits directly against the housing for heat dissipation and rigid alignment. That applies to fractional horsepower motors in appliances and integral horsepower motors in factories.

If you want to understand why stator materials matter the quality of the motor core laminations and the matching rotor core lamination have a direct effect on efficiency and heat. I’ve seen two motors with the same nameplate behave very differently because one used better laminations with lower core losses.

Motorcycles, ATVs, outboards, snowmobiles, lawn mowers, and small engines

This group confuses folks the most. The charging system looks different, yet the same principle applies.

• Location: Often behind a side engine cover. In many bikes it’s on the left side. In outboard motors it hides under the flywheel. Snowmobiles and small engines do similar things.
• The rotor: Usually a flywheel with permanent magnets. It spins around the stator. The stator is bolted to the engine case. Sometimes it’s oil-immersed which helps cooling.
• Function: The fixed stator generates AC as the flywheel magnets sweep by. A regulator and rectifier handle battery charging and system power.

Symptoms of a bad motorcycle stator show up as dim lights, weak battery, or no charging. When I pull the side cover I look for darkened or brittle windings. I also check the wiring harness to the regulator. Heat and vibration can chew those wires.

Washing machines and household appliances

Modern washers use direct drive or BLDC motors. The stator location depends on the design, yet it never spins.

• Direct-drive washer: The stator bolts to the tub or motor frame. The rotor is a large ring with magnets that spins around it. This design keeps noise down and improves efficiency.
• Traditional induction motor: The stator sits in the motor frame. The rotor spins inside. You often see this in older washers or dryers.
• Appliances like refrigerators, dishwashers, and HVAC fans: Each uses motors with a stator fixed to the housing. Compact and quiet designs rely on careful stator placement for cooling and stability.

I once replaced a washer stator that had a cracked mounting ear. The rotor rubbed the stator during spin cycles. The fix was simple. New stator, clean the rotor magnets, re-torque the bolts, then run a test spin. The location of the stator made access straightforward once I removed the back panel.

Generators and wind turbines

Power generation follows the same geometry.

• Portable generators: The stator is the stationary ring with output windings. The rotor spins within driven by the engine. Access usually requires removing the end cover or splitting the generator head.
• Industrial generator sets: The stator builds into the housing. The rotor is the field. Large machines have precise alignment and cooling channels built into the stator frame.
• Wind turbines: The generator’s stator bolts inside the nacelle. The rotor connects to the turbine shaft either directly or through a gearbox.

Stator insulation life hates heat. Even a modest temperature rise can cut life dramatically which I’ve seen in wind power maintenance notes. Techs watch stator temperature closely. They know the fixed location controls cooling airflow, thermistor placement, and maintenance access.

E-bikes, scooters, and power tools

• E-bikes and scooters: BLDC motors dominate. The stator holds phase windings. The rotor carries magnets. In hub motors the stator mounts to the axle and the rim acts as the rotor shell that spins around it.
• Power tools: Compact brushless motors place the stator inside the tool body. The rotor spins on bearings while the stator stays mounted to the housing.

I often use e-bike hub motors as a teaching aid. Remove the side cover. You’ll see the stator as a fixed ring of teeth with copper coils. The wheel hub is the rotor which carries magnets. Same story again. One part spins. One part stays still.

Why the stator’s location matters for function and efficiency

The stator’s fixed location is not a coincidence. It’s a deliberate choice that makes electric machines work well.

• Electromagnetic induction: Faraday’s law tells us that changing magnetic fields induce voltage in windings. The stator provides a rigid home for those windings. The rotor moves the magnetic field past them or vice versa. In motors the stator often creates the rotating field while the rotor chases it.
• Field geometry: The small air gap between stator and rotor matters. Tight gaps improve magnetic coupling. That raises torque in motors and voltage in generators.
• Heat management: Windings and cores get hot. A stator bolted to a metal frame dumps heat into the housing. Manufacturers add fins, fans, or oil flow to pull that heat away.
• Materials: The stator core uses stacks of thin steel laminations to reduce eddy currents. These electrical steel laminations keep losses low and efficiency high which is why you’ll see them in everything from tiny fan motors to big industrial drives.

Dive a little deeper and you’ll find that the shape of the stator teeth, the slot geometry, and the quality of the stator core lamination all affect noise, efficiency, and heat. I’ve torn down quiet brushless motors that used clever skewing of teeth to cut whine. I’ve also seen cheap units that sang like a kazoo because the core and windings were not well aligned.

How I identify a stator fast: visual cues and access points

If I walk up to an unknown motor or generator I use a simple checklist to spot the stator.

• Look for a fixed circular or cylindrical core with copper windings. It usually has teeth where coils sit. You’ll often see varnish on the coils.
• Check for mounting points. Stators bolt or press into the housing. They never ride on bearings because they don’t rotate.
• Find the wiring harness. Stator windings have multiple wires exiting to the controller, rectifier, or terminal block. In alternators those leads go to the rectifier bridge and voltage regulator. In BLDC motors they go to the three-phase controller.
• Inspect the rotor in relation to the stator. If you can see both the rotor will either spin inside the stator ring or outside it like a drum.

Common add-ons surround the stator. Bearings support the rotor. Brushes and a commutator appear in brushed DC designs though the stator stays fixed. In alternators you’ll see the rectifier diodes and regulator nearby. If a cover hides the view look for the most logical access panel that aligns with the crank or shaft axis.

Troubleshooting and testing: using a multimeter without guesswork

Knowing where the stator sits makes testing easier. I keep it simple with three core tests when the machine is at rest.

• Resistance test between phases: Measure the resistance of each stator phase winding with a multimeter or ohmmeter. The values should be equal within a small tolerance. Big mismatches hint at shorted turns or open circuits.
• Ground fault test: Check each winding to ground. You want infinite resistance or at least very high resistance. Low resistance means insulation failure or a path to the frame.
• Short circuit check: If the machine allows it I compare impedance phase to phase. Very low readings can point to inter-turn shorts.

In the field I apply a few rules of thumb.

• Alternator charging faults: Check battery voltage at idle and at a fast idle. If the regulator and rectifier test fine and the rotor field looks healthy the stator may be the culprit.
• Motorcycle charging issues: Inspect the stator behind the engine cover. Look for burnt coils. Test AC output from the stator before the regulator. If output is low across all phases the stator likely needs replacement.
• Industrial motor trips: Infrared scans can show hot stator slots. If insulation breaks down you may see partial discharge signs or smell varnish. Stator winding failures cause a large share of motor breakdowns which leads to costly downtime.

Before I test anything I disconnect power and lock out the source. I discharge capacitors. I keep fingers off live terminals. I know this sounds basic yet it saves lives.

Quick cheat sheet: “Where do I open it to find the stator?”

When you need to find the stator in a hurry this snapshot helps.

• Car alternator: Split the alternator housing. The stator is the ring with copper windings that surrounds the rotor.
• Motorcycle or ATV: Remove the side engine cover where the flywheel is. The stator bolts to the case under that cover.
• Outboard motor: Pull the flywheel. The stator sits beneath fixed to the engine block.
• Small generator: Remove the end bell or generator head cover. The stator is the stationary ring of windings inside the housing.
• Washing machine (direct drive): Take off the rear panel. The stator mounts to the tub or motor bracket. The rotor is a large ring that goes over it.
• Induction motor in HVAC or pump: Open the end cover and look into the housing. The stator presses into the frame and the rotor spins inside on bearings.
• E-bike hub motor: Remove the side cover. The stator is fixed to the axle. The wheel shell with magnets acts as the rotor.

Once you know the target side you save a ton of time. You avoid opening the wrong cover which happens more often than people admit.

Real-world stories from my bench

A few examples stick with me because they highlight how stator location guides the repair.

• The alternator with a mystery drain: A customer’s car kept killing batteries. The alternator passed a quick bench test yet the charge still sagged under load. I opened it. The stator windings showed dark varnish and a faint burnt smell. Under higher heat the insulation leaked. New alternator fixed it. The stator’s fixed placement let me inspect it closely once I split the case.
• The motorcycle that ate regulators: Three regulators in a year. The owner swore the regulators were junk. I measured AC output from the stator before the regulator. It spiked at high RPM far beyond spec which pointed to a shorted turn that went intermittent with heat. We replaced the stator and secured the wiring harness. No more failures. The stator sat behind the left cover soaked in hot oil. Access took fifteen minutes. Testing took five.
• The quiet washer with a loud secret: The drum made a grinding noise only during high spin. I pulled the rear cover and found the stator loose on one ear. The rotor rubbed under heavy load. New stator bolts with thread locker, alignment check, and the noise vanished. Location at the rear made the fix painless.
• The pump motor that ran hot: A 3-phase induction motor kept tripping on overtemp. Infrared imaging showed hot stator slots on one phase. Resistance measured within spec but a deeper inspection found partial insulation breakdown near the exit leads. Rewind shop confirmed it. That failure reinforced how stator cooling depends on tight mounting to the frame and clean airflow.

These cases remind me that “where is the stator located” is not just trivia. It’s the starting point for sensible diagnostics.

FAQs I get all the time

• What does a stator do?

It creates or receives magnetic fields. In a generator or alternator the stator windings produce AC as the rotor moves the field. In a motor the stator windings create a rotating magnetic field that the rotor follows which produces torque.

• Difference between stator and rotor?

The stator is stationary and fixed to the housing. The rotor spins on bearings inside or around the stator. Their magnetic interaction creates electricity or motion.

• Where is the stator coil or winding located?

Inside slots in the stator core. The core uses thin steel sheets called laminations to cut eddy current losses. The coils often use copper wire insulated with varnish.

• Do all motors have stators?

Nearly all do. From tiny fan motors to EV traction motors to industrial generators. The stator is foundational to almost every electric machine type.

• Why is the stator stationary?

It needs a rigid base for precise air gap control, secure mounting, and efficient heat dissipation. The stationary position also anchors the windings so the rotor can move relative to them.

• What are signs of a bad stator?

Burnt or darkened windings, uneven resistance between phases, ground faults, low AC output, overheating, or humming under load. In vehicles you’ll see dim lights, weak charging, or battery issues.

• How do I test a stator with a multimeter?

Measure resistance between phase leads. Compare phases. Check insulation to ground. If it’s a motorcycle or small engine stator measure AC voltage output to the regulator at idle and higher RPM.

• What surrounds the stator?

The motor or generator housing. Bearings support the rotor. In brushed machines the commutator and brushes sit on the rotor while the stator stays fixed. In alternators you’ll find the rectifier and voltage regulator close by.

• Can I replace a stator at home?

Often yes particularly on motorcycles, outboards, small generators, and some appliances. You’ll need basic hand tools, a service manual, and patience. Industrial motors or EV stators require more specialized tools.

• What about materials and laminations?

High quality laminations improve performance. I look for well made stacks and tight tolerances. If you want to get into the weeds on materials and design the resources on motor core laminations and stator core lamination are helpful.

Final thoughts: Once you see the pattern you can’t unsee it

Finding the stator comes down to one rule. It’s always the stationary part. It bolts to the frame and sits next to the rotor with a tight air gap. In an alternator it’s the ring of windings inside the aluminum housing. In a motorcycle it’s behind a side cover with the flywheel spinning around it. In a washing machine it’s bolted to the tub or motor bracket while the rotor wraps around like a drum. In a generator it’s the fixed set of windings inside the housing.

Know that rule and the rest follows. You’ll know where to open a case. You’ll know which wires to test. You’ll catch heat issues faster. You’ll spot poor materials before they waste power. When I teach new techs I show them the stator and rotor first because that relationship explains everything from basic torque to advanced control strategies.

If you want to go deeper into the metal backbone that makes stators efficient read up on electrical steel laminations. You’ll see why a good lamination stack cuts losses and keeps heat in check. Pair that with an understanding of the rotor’s matching core which you can explore under rotor core lamination and the big picture clicks.

The bottom line is simple. Ask “where is the stator located” and you already think like a diagnostician. You’re halfway to the fix.
