What is a Stator in a Motor? (Definition, Function, Components, Types & Importance)

A stator is the still part of an electric motor. It does not spin. Yet it does big work. It makes the magnetic field that starts motion. If you want to know how electric motors work you start here. Read this guide to see the stator’s job, parts, types, and why it matters for power, speed, and life.

• Problem: You hear “stator” and think “tech talk.” Motors stop. Bills rise. Work slows.
• Agitate: A bad stator can cause heat, noise, and failure. That means downtime and lost money.
• Solution: Learn what a stator is in clear words. See how good laminations and windings boost motor efficiency and reliability. Pick better parts and prevent issues.

Table of Contents

• Stator Definition: The Stationary Workhorse
• What Does a Stator Do?
• Anatomy of a Stator: Core, Windings, Insulation, Housing
• How Does a Stator Work in AC and DC Motors?
• Stator vs. Rotor: The Essential Duo
• Types of Motors That Use a Stator
• Why the Stator Shapes Motor Performance
• Common Stator Problems and Simple Maintenance
• Useful Data and Design Facts
• Where You See Stators Every Day
• How We Build Better Stators for You
• Simple Laws Behind Motor Motion
• Buying or Specifying a Stator: A Quick Checklist
• FAQs
• Summary: Key Points to Remember
• References

Stator Definition: The Stationary Workhorse

Here is the clear stator definition. The stator is the non-rotating part of an electric machine. It holds the coils or permanent magnets that make the magnetic field. The word “stator” comes from “static.” It stays still inside the motor housing while the rotor spins in the air gap.

In short the purpose of stator parts is to create magnetic field generation that the rotor can “chase.” That is the function of stator design. It sets up the field. The field couples across the small air gap motor designers love to minimize. That gap is small on purpose. A tight gap boosts magnetic flux motor paths and torque.

So what does a stator do? It turns electrical energy into a strong electromagnetic field. Then the rotor turns that into mechanical energy you can use.

What Does a Stator Do?

Let me put it simply. You feed current to stator windings. Those copper windings act like electromagnets. The insulated wires form poles of a motor around the stator core. The field reaches across the air gap. It grabs the rotor. It makes rotation. That is electrical to mechanical energy conversion.

The field from the stator interacts with the rotor’s magnetic field strength. In an induction motor stator fields induce current in the rotor bars. In a permanent magnet motor the rotor carries magnets. In both cases you get motor torque generation. You also get back EMF as the rotor spins. That back EMF limits stator current as speed rises. It all fits the motor rotation principle.

When we ask “how does a stator work” we also talk about motor performance. Good design raises motor efficiency. Poor design raises core losses motor heat and sound. You can feel it in motor sound and vibration.

Anatomy of a Stator: Core, Windings, Insulation, Housing

Let’s walk through the motor anatomy. Four main electric motor components live in or on the stator.

• Stator core
• Stator winding
• Insulation system
• Stator frame or housing

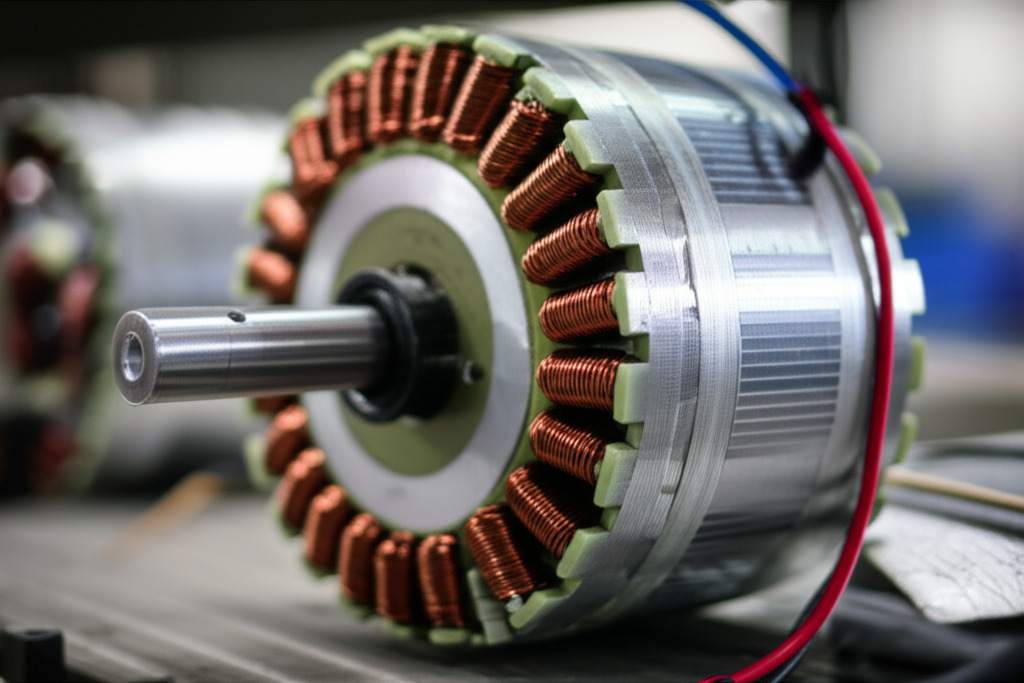

First the stator core. It is made of stacked laminations. Makers stamp thin sheets of silicon steel. They stack and press them into a core. Laminated silicon steel cuts eddy current losses and hysteresis losses. Thin sheets break the paths of eddy currents. That reduces heat dissipation motor needs. The core gives a low magnetic reluctance path for magnetic flux. It also sets slots and teeth that hold the windings. Good stator material properties like magnetic permeability matter a lot.

Second the stator windings. We wind insulated copper wires in the slots. Copper has high conductivity. That gives lower winding resistance than other metals. Some low cost units use aluminum. Copper wins when you need high power output motor numbers. The winding configuration can be single-phase stator or three-phase stator. You may use Y-connection motor or Delta-connection motor patterns. You can set winding turns to hit your voltage in motor specs and frequency motor operation needs.

Third the insulation system. It prevents short circuit motor faults. It keeps coils safe from the iron core and from each other. Makers use motor enamel on the wire. They use slot liners and wedges. They dip the windings in motor varnish. Then they cure the coil pack. You pick insulation class motor ratings like Class F or Class H based on heat.

Fourth the stator frame or housing. It holds the core and windings. It lines up with the motor bearings and keeps the shaft centered. The frame also helps motor cooling. It can carry fins or ducts. It is the base of motor construction and supports the whole assembly.

How Does a Stator Work in AC and DC Motors?

All this rides on basic motor principles of electromagnetism. Electric current makes a magnetic field. That field flows through iron and across the air gap. Then the rotor sees the field. The rotor moves.

In AC motors the stator often has three phases of AC current. The phases of AC motor power are offset in time. That makes a rotating magnetic field. In an induction motor stator fields induce current in the rotor. The rotor follows but it lags a bit. That slip makes torque. In a synchronous motor stator fields pull a rotor with DC field or magnets. The rotor locks in. It turns at synchronous speed.

In DC motor designs you also rely on the stator. A DC motor stator may carry permanent magnets. Or it may carry field coils. In a brushless DC motor stator the windings energize in steps from an inverter. We call that a brushless DC motor stator with electronic commutation. In a brushed DC motor the armature winding sits on the rotor. The commutator and motor brushes switch current. The stator is still the field source in that commutator motor setup.

The laws that drive it are clear. Faraday’s law of induction says changing magnetic flux makes voltage. Lenz’s law motor behavior says the induced current pushes back. Lorentz force motor action says a current in a field feels a force. Ampère’s insights link current to magnetic field. Michael Faraday and André-Marie Ampère laid the base. Nikola Tesla gave us rotating fields in AC systems.

Stator vs. Rotor: The Essential Duo

A motor needs two partners. Stator vs rotor is not a fight. It is a dance.

• Stator: Stationary. It holds windings or magnets. It creates the main magnetic field.
• Rotor: Rotating. It sits on the shaft with bearings. It interacts with the stator field. It makes torque and spins.

The rotor can be a squirrel cage rotor in an induction motor. It can be a wound rotor with slip rings in special cases. It can hold permanent magnets in a BLDC or synchronous design. The rotor sits inside the stator. The small air gap links them. The two must be precise. Good alignment lowers losses and raises motor reliability.

Types of Motors That Use a Stator

Many machines use a stator. Here are the big ones.

• Induction Motor: The induction motor stator makes a rotating field. It induces current in the rotor. Simple and rugged.
• Synchronous Motor: The synchronous motor stator makes the same rotating field. The rotor locks to it. Speed stays fixed to line frequency.
• AC Motor: AC motor stator is the heart of most industrial motors. It may be single-phase or three-phase.
• DC Motor: A DC motor stator may be magnets or coils. In BLDC the stator windings get switched by electronics.
• Brushless DC Motor (BLDC): The brushless DC motor stator has coils. The rotor has magnets. Clean and efficient.
• Stepper Motor: The stepper motor stator has many poles. It steps in small moves.
• Servo Motor: The servo motor stator is made for fast response and high power density.
• Generator and Alternator: The generator stator and alternator stator are the fixed parts where EMF is induced as the rotor field moves past.

Why the Stator Shapes Motor Performance

You want more power and less energy use. The stator gives you both when built right.

• Motor efficiency: Better core laminations and higher slot fill factor cut losses. That improves motor efficiency and power factor motor values.
• Torque and speed: The number of poles of a motor and winding turns drive torque. They also set base speed at a given frequency.
• Heat: Core losses motor heat comes from eddy current losses and hysteresis losses. Copper I²R losses in windings add heat. Good thermal management motor designs pull heat out. That protects insulation. That extends life.

In short good motor design principles focus on the stator first. You set the path of magnetic flux. You place the windings. You pick materials. That shapes motor performance.

Common Stator Problems and Simple Maintenance

Motors fail. Many times the cause ties back to the stator.

• Insulation breakdown motor: Heat, vibration, dirt, or voltage spikes can damage insulation. That leads to short circuits like phase to phase or phase to ground.
• Overheating: Poor cooling or overload raises winding temperature. That kills varnish and enamel. It leads to open circuit motor faults.
• Contamination: Oil, dust, and moisture cause tracking and partial discharge. That weakens insulation.

What can you do? Use proper motor cooling. Check stator current. Watch temperature and vibration. Plan stator testing like insulation resistance and surge tests. When damage happens you can do stator repair. You can also do rewinding stator work. Good shops follow quality control stator steps to restore life.

Useful Data and Design Facts

Here are some numbers and notes you can use when you think about motor manufacturing and design choices.

These numbers tie back to physics. Magnetic field strength scales with turns and current in the coil. Magnetic permeability of the steel and the air gap set the flux path. Magnetic reluctance drops as you use better iron. That nudges performance right where you want it.

Where You See Stators Every Day

You meet stators all the time. You just do not see them. They hide inside the case.

• Electric vehicle motors move EV cars and trucks with high power density.
• Industrial motors drive pump motors, fan motors, and compressor motors in plants.
• A wind turbine generator turns wind into electrical energy on tall towers.
• Power plant alternators push out grid power day and night.
• A washing machine and a refrigerator use AC motors at home.
• An HVAC system uses an electric fan and a compressor to cool your rooms.
• An industrial robot uses servo motor stators to move with speed and grace.
• A stepper motor inside a printer makes small, exact moves.

Each one cares about the stator. Better design lowers noise. It boosts torque. It cuts heat. It improves reliability.

How We Build Better Stators for You

I have worked with many motor makers. The best ones care about the core stack first. They pick the right electrical steel and the right lamination shape. They check tight tolerances for the air gap. They control slot geometry for the desired slot fill factor. Then they wind, insulate, and cure with care.

If you design or buy motors you can tap expert suppliers. The quality of the stator core lamination directly shapes loss and torque. For full machines look at complete motor core laminations sets that match your stack height and slot count. Do not forget the other half of the pair. A good rotor core lamination must match the stator for top performance.

Material also matters. Tight-grade electrical steel laminations with the right coating hold low loss at your frequency. Working on BLDC traction motors or robots? A dedicated BLDC stator core helps reach high slot fill factors and robust thermal paths. Strong cores plus clean windings equal long life. That is how you protect motor reliability.

• Problem: You need more torque in a smaller frame and you fight heat.
• Agitate: Oversized motors add cost and weight. Hot spots kill insulation and cause failures.
• Solution: Use high-grade laminations and tight stacks. Pick the right slot geometry. Raise slot fill with hairpin if needed. Add good cooling. That solves power and heat together.

Simple Laws Behind Motor Motion

Let’s unpack the big three in simple words.

• Faraday’s law of induction: When magnetic flux changes through a loop it makes electromotive force (EMF). That is voltage. In a generator stator the moving rotor field makes voltage in the coils. In a motor the changing stator field makes back EMF in the windings.
• Lenz’s law: The induced current flows in a way that opposes the change. This keeps motors stable and sets how much current they draw at speed.
• Lorentz force: A current in a magnetic field feels a force. That force on the rotor conductors makes torque.

These laws plus Ampère’s link between current and field drive every AC Motor, DC Motor, Induction Motor, Synchronous Motor, Brushless DC Motor, Stepper Motor, and Servo Motor you see. Tesla’s rotating field idea makes three-phase power so useful. Faraday’s work and Ampère’s work laid the ground for all electric motor components we use today.

Buying or Specifying a Stator: A Quick Checklist

Use this list when you plan motor construction or motor manufacturing.

• Pick lamination grade: Silicon Steel with low Core Loss. Check Eddy Current and Hysteresis Loss at your frequency.
• Set lamination thickness: Thinner at high frequency motor operation. Typical 0.35–0.65 mm.
• Choose slot geometry: Aim for high slot fill factor with easy winding insertion.
• Define winding configuration: Single-phase or three-phase. Y-connection or Delta-connection.
• Select wire and insulation: Copper windings with proper motor enamel and Class F or H insulation.
• Check poles of a motor and winding turns: Match voltage and speed.
• Plan thermal path: Add fins or liquid jackets. Think thermal management motor from the start.
• Verify tolerance: Air gap. Stack height. Concentricity. All protect motor bearings and shaft alignment.
• Test and inspect: Stator testing for insulation resistance, surge, and hipot. Keep quality control stator logs.
• Listen and learn: Measure motor sound and vibration in trials. It tells you a lot about magnetic forces and balance.

FAQs

Q: Is the stator the same in AC and DC motors?

A: Not always. An AC motor stator uses AC coils fed by line power or an inverter. A DC motor stator may use permanent magnets or field coils. A brushless DC motor stator is fed by electronics that switch phases in steps.

Q: Why use laminations instead of a solid iron core?

A: Laminations cut eddy currents in the core. That lowers heat and core losses. It boosts motor efficiency.

Q: Can I rewind a stator?

A: Yes. Rewinding stator work can restore motors. You must follow the original winding turns, wire size, and pattern. Use proper varnish and curing.

Q: What kills stators most?

A: Heat and electrical stress. Overload, poor cooling, spikes, and dirt attack insulation. That leads to shorts and failures.

Q: Does power factor matter?

A: Yes. Power factor motor numbers show how well you use current. Better stator design and the right winding connections can improve it.

Summary: Key Points to Remember

• The stator is the stationary part that makes the electromagnetic field.
• It works with the rotor across a small air gap to make torque.
• Good stator core laminations and copper windings raise efficiency and power.
• Insulation class and cooling protect life and reliability.
• Use correct winding configuration and number of poles to hit your speed and voltage.
• Watch for heat, noise, and vibration. They warn you early.
• In EVs, industry, and home, better stators save energy and money.
• Trusted lamination suppliers and tight quality control make motors last longer.
