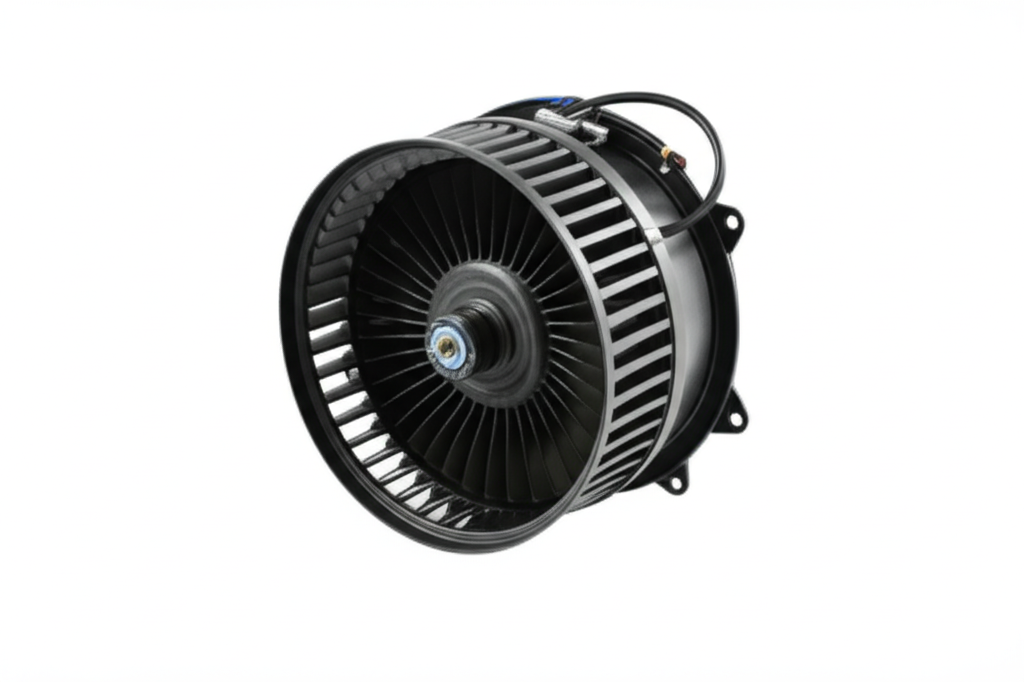

What Is a Blower Motor? Understanding Its Function, Types, and Importance in Your HVAC and Vehicle

Table of Contents

• What Is a Blower Motor? Understanding Its Function, Types, and Importance in Your HVAC and Vehicle
• What Is a Blower Motor?
• How Does a Blower Motor Work?
• Where Do You Find a Blower Motor in Cars and Homes?
• What Are the Main Parts of a Blower Motor Assembly?
• What Types of Blower Motors Exist?
• What Symptoms Tell You the Blower Motor Is Failing?
• What Causes Blower Motor Problems?
• How Can You Troubleshoot a Blower Motor Safely?
• Should You Repair or Replace the Blower Motor
• How Much Does Replacement Cost
• How Do You Make a Blower Motor Last Longer
• Why Does Blower Motor Efficiency Matter
• Quick Data and Stats You Can Use
• FAQ
• Summary: Key Things to Remember
• References

A blower motor is the hidden muscle behind the warm or cool air you feel. It pushes air through vents in your car and your home. In this guide I show you what it does, how it works, the parts it uses, and how to spot trouble. I also share costs, tips, and simple steps that keep you comfy year round.

I write this in simple English. I keep it short and clear. I use real stories, plain terms, and smart steps you can follow. You will learn how to act fast when something sounds off or smells burnt. You will see how a small motor can make a big difference in comfort, air quality, and energy use.

What Is a Blower Motor?

Let’s start with the problem. You turn on heat or AC and nothing blows. No air from vents. The cabin feels stuffy. The house feels stale. You sit and sweat or you shiver. That hurts comfort and mood. It also puts stress on the system.

So what is a blower motor? It is an electric motor that spins a blower wheel to move air. It is not just a fan. It drives the fan. It creates forced air. It pushes air through ductwork in your home. It sends air through vents in your car. It works with your heating system, cooling system, and ventilation system. It keeps air circulating so you feel good.

I like to think of it as the heart of airflow. The thermostat or dashboard controls tell it when to start. The motor spins. The squirrel cage fan pulls in air, raises pressure, and sends it onward. The result is comfort at your seat or in your living room.

How Does a Blower Motor Work?

Here is the agitation. A blower motor fails and the rest of the system cannot breathe. Your HVAC system operation suffers. Air gets stuck at the evaporator coil or the heater core. The AC compressor works harder. The refrigerant loop suffers. Your car’s automotive climate control feels weak. Your furnace short cycles. Bills rise. Stress builds.

The solution starts with understanding. The motor takes voltage from a power supply. It draws current. Inside the motor, the stator creates a magnetic field. The rotor turns. The armature and motor brushes (on some designs) help this happen. The shaft spins the blower wheel. The centrifugal fan or squirrel cage pulls in fresh air or recirculating air. It raises static pressure and pushes air volume through the plenum, air handler, and ductwork. You see it as air distribution at the vents.

Speed control matters too. Cars often use a blower motor resistor or control module. Homes may use a capacitor on PSC motors or smart controls on ECM motors. The control lets you change fan speed control from low to high. You pick a temp on the thermostat control or the automatic climate control system, and the motor follows orders.

Where Do You Find a Blower Motor in Cars and Homes?

In many cars the blower sits under the dashboard near the glove box. You can often see the housing if you drop the glove box. When it runs you feel air from vents. When it fails you get weak airflow or no air from vents. You may hear odd sounds near your feet.

In homes the blower sits in the indoor air handler. This could be part of a furnace or a central AC system inside. The outdoor unit with the condenser unit and fan sits outside while the blower stays inside to push air across the evaporator coil and into rooms. In large buildings you find blowers in big air handlers. In shops you see similar motors in vacuums and industrial ventilation tools.

What Are the Main Parts of a Blower Motor Assembly?

I like to break things down. That helps you spot the problem fast.

• Electric Motor: The power plant. It converts electrical energy to spin.
• Blower Wheel (Fan Cage): Often a squirrel cage fan or centrifugal fan that moves air.
• Housing: The shell that holds parts and guides airflow.
• Shaft & Bearings: Bearings keep the shaft smooth and quiet. Worn bearings squeal and grind.
• Wiring & Electrical Connections: A wiring harness, electrical connection, and voltage supply feed the motor.
• Capacitor: On a PSC motor this helps the motor start and run.
• Blower Motor Resistor or Control Module: Sets speeds in cars and in some HVAC systems.
• Relay and Fuse in the fuse box: Protect and switch power.
• Cabin air filter or HVAC filter: Keeps debris out and protects the blower wheel.

Quality inside the motor matters. The stator and rotor use thin steel layers called laminations. High grade laminations cut heat loss and noise. They also boost fan efficiency and energy efficiency. If you design motors or buy parts for production you can learn how the stator core lamination affects performance. You can also see how precision in the rotor core lamination lowers vibration and improves RPM (Revolutions Per Minute) stability.

What Types of Blower Motors Exist?

You will meet a few types when you shop or repair.

• Automotive blower motors often run on DC power. Many pair with a blower motor resistor for speed steps. Some newer cars use a small ECM or pulse control for smooth speed.
• HVAC blower motors in homes come in two common types:
• PSC blower motor (Permanent Split Capacitor Motor). It runs simple single speed or multi speed. It costs less and uses a capacitor. It draws more watts under load.
• ECM blower motor (Electronically Commutated Motor). It runs variable speed and ramps up and down to match need. It saves power and cuts noise.
• Direct drive blower motor mounts the blower wheel on the motor shaft. It runs smooth and simple.
• Belt driven blower motor uses a belt from motor to wheel. You see belts more in old or large systems.

In any case your system can use manual control blower motor steps or an automatic climate control system that adjusts air for you. That smart control helps air distribution and keeps temps steady.

What Symptoms Tell You the Blower Motor Is Failing?

You can hear and smell trouble if you listen. These signs matter.

• No Airflow: The blower stops. You get nothing from vents.
• Weak Airflow: Air feels light even on high. You might have airflow resistance from a clogged filter or a weak motor.
• Unusual Noises: A squealing blower motor points to dry or worn bearings. Rattling blower motor may mean debris in the blower wheel. Grinding can mean deep wear.
• Intermittent Blower Motor: It works then stops then works again. That can be heat or a bad electrical connection.
• Burnt Smell Blower Motor: That is a red flag. The motor may overheat. Shut it down and check it.
• Only Works on High Speed: Often this is a blower motor resistor failure. The motor may be fine.

I learned to act early. A light squeal today can become a seized shaft tomorrow. A burnt smell means a fire risk. Do not wait. Turn it off and check fuses and filters. Call a technician or auto mechanic if you are not sure.

What Causes Blower Motor Problems?

Dirt and heat cause most trouble. A clogged cabin air filter or HVAC filter chokes airflow. The motor then draws more current and runs hot. Overheating blower motor cuts life fast. Old bearings wear and start to sing. Debris accumulation in the wheel throws the fan off balance. That creates vibration and can crack the housing.

Electrical parts fail too. A blower motor resistor can burn out. A relay can stick. A fuse can blow. A bad capacitor can stop a PSC motor from starting. Water can leak into the plenum and cause water damage. A flood can corrode a wiring harness. Surges can damage an ECM motor control module.

How Can You Troubleshoot a Blower Motor Safely?

Start with simple checks. This keeps the problem small and safe.

• Check the fuse box and relay. Replace a blown fuse with the same rating.
• Inspect wiring. Look for burnt spots, loose plugs, or cracked insulation.
• Test the blower motor resistor or control module. If only high speed works the resistor likely failed.
• Listen. A new motor noise or wobble points to bearings or debris.
• Change the cabin air filter in your car and the main filter in your air handler.

Use electrical safety steps. Unplug power to the furnace or AC. Pull the car battery negative cable if you must disconnect motor plugs. Wear gloves and eye protection. Use a multimeter to test voltage and current draw. Use a screwdriver set to remove panels. If you see burn marks or smell smoke call a HVAC technician or mechanic.

Should You Repair or Replace the Blower Motor

Face the problem. You hear a loud squeal. You smell hot wind. The fan stalls. You worry about cost and time.

Agitate the risk. If you ignore the noise the motor can lock. Then the evaporator coil can freeze. The heater core can overheat the cabin. The AC compressor can run longer. Your energy bills climb. Your ride or home gets uncomfortable fast.

Now the solution. If the resistor or relay failed then a small repair can fix it. If the capacitor died on a PSC unit replace it. If the wheel is clogged clean it. If bearings have play and the motor drags plan a blower motor replacement. When a motor has burnt windings you cannot save it. Replace it with the right OEM vs aftermarket blower motor based on fit, price, and warranty. A good shop can guide you.

For makers and buyers of motors, build quality starts at the core. Choosing the right motor core laminations helps motors run cooler and last longer. That lowers returns and keeps customers happy.

How Much Does Replacement Cost

Money matters. Here is what you can expect.

• Automotive Blower Motor Replacement Cost
• Parts: $75 to $250 for cost of blower motor part from aftermarket to OEM.
• Labor: $100 to $300 for 1 to 3 hours depending on blower motor location under the dashboard or glove box.
• Total: $175 to $550+ based on make and model and shop rates.

• HVAC Blower Motor Replacement Cost
• Parts: PSC motors $150 to $400. ECM motors $400 to $1,500+.
• Labor: $200 to $600+. This depends on access inside the air handler or furnace.
• Total: PSC $350 to $1,000+. ECM $600 to $2,500+.

Ask about labor cost blower motor, warranty blower motor, and timeline. Get a written quote. If the system is old ask about a full check of ductwork, thermostat, and evaporator coil while you are at it.

How Do You Make a Blower Motor Last Longer

You can prevent many issues with a few habits.

• Change filters on time. A clean cabin air filter and HVAC filter cut dust and load. This protects bearings and the blower wheel.
• Keep vents clear. Do not block return vents with furniture.
• Use the right speed. Let a smart ECM blower motor run at low speed for longer air mixing. It uses less power.
• Fix noise fast. Do not wait on squeals or rattles. Early fixes save the motor.
• Get annual preventative maintenance. A pro can clean, lube, and test current draw, voltage, and RPM. That keeps the blower motor lifespan long.

When I managed my own furnace I set a calendar alert to change the filter each season. It took five minutes. It saved me a motor swap and a long night without heat.

Why Does Blower Motor Efficiency Matter

We all feel the cost of power. Old PSC blower motors can use 400 to 800 watts. An ECM blower motor can sip 80 to 120 watts at low speed. That can save 60 to 80 percent on fan energy. Over a year that adds up.

Better parts inside the motor cut losses too. High grade electrical steel laminations reduce eddy currents. That cuts heat and boosts torque. Good laminations help variable speed blower motor designs hold speed under static pressure. This improves fan efficiency and air distribution across rooms.

If you design blower motors for HVAC or automotive markets you know lamination quality drives outcomes. The right motor horsepower, the right stator, the right rotor, and tight housing tolerances yield quiet power. Better cores also reduce vibration and noise which keeps customers happy.

Quick Data and Stats You Can Use

Here is a quick table with simple facts you can use to plan and budget.

FAQ

Q: What is the difference between a fan and a blower motor

A: The fan is the wheel that moves air. The blower motor is the electric motor that spins the fan. You need both.

Q: Why does my blower work only on high speed

A: In cars this often means a bad blower motor resistor. The motor may still be fine.

Q: Can I drive with a bad blower motor

A: You can drive the car but you may fog the windshield. You lose ventilation and comfort. Fix it soon.

Q: How do I know if the capacitor is bad on a PSC motor

A: The motor hums but will not start. A tech can test the capacitor with a multimeter. Replace it with the right size.

Q: What tools do I need to change a blower motor

A: You need a screwdriver, sockets, a multimeter for checks, and gloves. Always cut power first for electrical safety.

Summary: Key Things to Remember

• A blower motor is the muscle that moves air in your car and your HVAC system.
• It uses a blower wheel, housing, shaft, bearings, and smart controls to push air.
• Watch for no air from vents, weak airflow, squealing, rattling, intermittent stop and go, or a burnt smell.
• Check fuses, relays, wiring, resistor, and filters first.
• Replace the capacitor on PSC if it fails. Replace the motor if windings burn or bearings fail.
• ECM blower motors use less power than PSC and hold steady air volume under static pressure.
• Keep filters clean. Fix noises early. Get yearly checks to extend blower motor lifespan.
• For makers and buyers, better stator and rotor laminations improve energy efficiency and lower noise. Explore precision core options like rotor core lamination and stator core lamination to raise performance and reliability.

References

• ENERGY STAR and manufacturer literature on ECM vs PSC energy use
• HVAC trade best practices and field reports from technicians
• Automotive service manuals for blower motor location and testing
• Industry estimates on motor lifespan and maintenance impact

Bonus: How We Meet Your Needs (PAS in Action)

• Problem: Your air feels weak or dead. The cabin fogs up. The house will not cool or heat.
• Agitate: You waste time and money while comfort drops. The AC compressor and heater core can suffer. Family feels it.
• Solution: Learn the signs. Check simple parts. Plan DIY blower motor replacement only if safe. Call a professional blower motor replacement when needed. Choose quality parts with proven warranty. For manufacturers and repair suppliers, choose better cores and silicon steel grades. If you build motors or buy at scale explore premium motor core laminations and advanced electrical steel laminations for cooler, quieter, longer lasting motors.

Extra Details for Curious Readers

• In HVAC, the blower sits in the air handler near the evaporator coil. It pushes air through ductwork to rooms. It pulls air back through returns for recirculating air.
• In cars, the blower pulls fresh air intake from outside or switches to recirc. You choose this on the dashboard controls.
• A direct drive motor connects straight to the wheel. A belt drive motor uses a belt. Belts need checks and tension.
• Single speed blower motor units run one speed. Variable speed blower motor units adjust to load.
• Manual control blower motor steps use simple switch settings. Automatic climate control uses sensors and a control module to hit the target temp.
• If your motor runs hot, check airflow resistance, filter, and static pressure. Blocked vents make the motor work too hard.
• Always match voltage, current, and motor horsepower to your system. Wrong specs cause overheating and failure.
• In design, tight motor housing and balanced blower wheel reduce noise, vibration, and extend bearings life.

By knowing the little engine that moves your air you protect comfort and cost. You also make smarter choices about repair, parts, and when to call a pro.
