Your boat’s engine makes more than thrust. It also makes power. The stator is the quiet part that helps your battery and electronics. In this simple guide I show you how a stator works, why it matters, how to test it, and how to keep your boat ready to go.

I wrote this for you if your battery keeps dying, your lights dim, or your outboard motor charging system seems weak. Read on and you will understand what charges a boat battery, what makes electricity on a boat, and how to fix common marine battery charging issues.

What Is a Stator on a Boat?

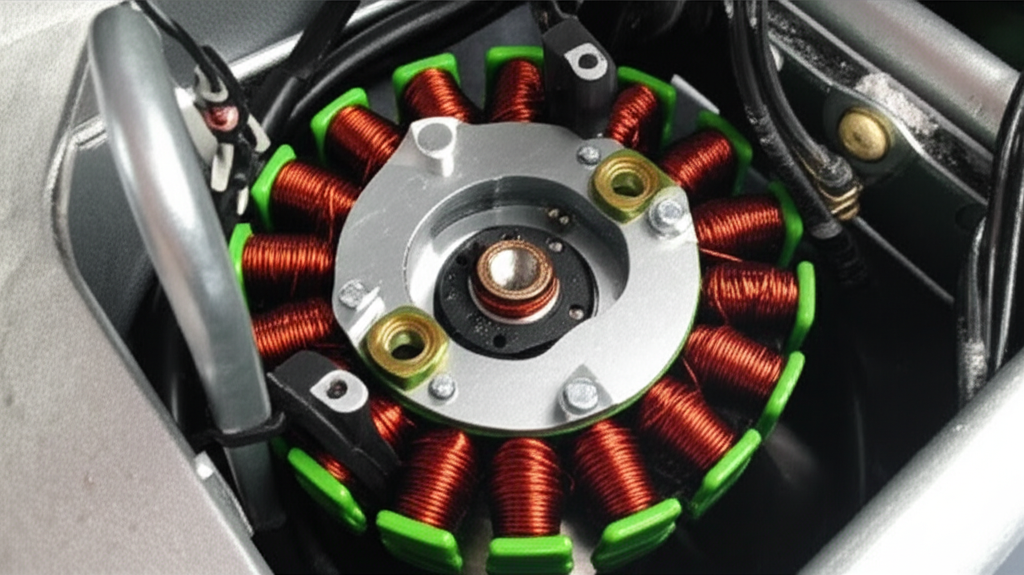

Here is the short answer. A stator is a ring of wire coils in your engine. It sits still while a flywheel with magnets spins past it. When the engine runs the stator makes AC power. A rectifier/regulator turns this AC into DC so the battery can charge.

I like simple pictures. Think of a bicycle light that runs when the wheel spins. The stator is the set of coils. The magnets on the flywheel pass by and create a magnetic field. That is how a marine stator works. The goal is boat engine power generation for lights, radio, GPS, fish finder, bilge pump, and the ignition system.

Problem: Your engine not charging battery. Agitate: You drift at night with no navigation lights and cold VHF radio. Solution: Learn the electrical components of a boat engine and keep your charging system in shape.

How Does a Boat Stator Work?

A stator uses magnetic induction. The flywheel has magnets. The stator has windings. When the magnets move past the coils they make AC power generation in a marine engine. We call that alternating current or AC. The regulator/rectifier does the alternating current to direct current conversion so your battery gets DC.

Let’s name the parts. The stator has coils or windings. The flywheel with magnets spins on the crankshaft. This creates magnetic field generation in the boat engine. The AC flows from the stator to the rectifier/regulator. DC then flows to the battery and your boat electrical system. That is your engine charging system explained for marine use in plain words.

Why Does the Stator Matter on the Water?

You turn the key. The starter needs a strong battery. After start the stator must recharge the starting battery. It must also top up a deep cycle battery if you use one. So the stator keeps your marine battery types for charging in good shape.

It also powers your boat electronics power supply while you run. Think navigation lights, fish finder, GPS, VHF radio, bilge pump, horn, and more. If the stator fails you may see engine performance issues related to power. Sometimes the ignition system loses power and the engine dies. I have seen a boat lose power far from the transom bay. Not fun.

Problem: Boat battery undercharging issues. Agitate: Dim lights and lost power on a foggy run. Solution: Keep charging system integrity in check and test the stator output voltage on your boat.

Stator vs Alternator: What Is the Difference?

You will hear both terms. A rotor vs stator boat engine setup is common in small outboards. It has a stationary stator and a spinning flywheel. The stator makes AC that needs a rectifier/regulator. In many larger engines you find an alternator. It often has a built-in rectifier so it gives DC right away.

Small engine charging system designs use stators. Larger outboards, many inboard engines, and Mercruiser or Volvo Penta packages often use automotive-style alternators. Both aim to make DC for the boat electrical system. Both keep your boat electrical system health strong.

If you go for an alternator conversion for a boat engine on some models you replace the stator system with an alternator bracket and belt. Understanding marine alternators helps you weigh cost, space, and output.

Who Helps the Stator Do Its Job?

The stator does not work alone. The rectifier’s role is to turn AC into DC. The regulator’s role is to hold voltage in a safe range. Many engines use a regulator rectifier as one unit. This protects against boat battery overcharging symptoms and keeps amperage under control.

The battery stores energy. A starting battery charging setup handles cranking needs. A deep cycle battery charging boat setup handles house loads like the fish finder, GPS, and VHF radio. A battery isolator boat function lets you charge both yet keep them separate. A battery switch electrical system helps you pick which bank to use. Shore power boat charging, solar panels boat charging, and a boat battery charger are extras that help while docked.

Problem: Voltage spikes cook the battery. Agitate: You smell a hot acid smell and see warning lights on the dash. Solution: Use a healthy rectifier/regulator and test it. Do a voltage regulator rectifier test on your boat if you suspect trouble.

What Are the Signs of a Bad Boat Stator?

Watch for these symptoms of a bad boat stator:

• Dead or drained battery after long runs
• Dim lights or flickering electronics
• The “charge” warning lights on the boat dash
• Engine dying caused by an electrical fault
• Rough idle boat due to power issues
• Burnt smell near the flywheel and stator burn marks diagnosis spots

You may also find melted wires or discoloration on the stator windings. Corrosion effects on boat stators show as green or white crud on connectors. Freshwater vs saltwater boat electrical parts face different levels of rust and corrosion. Salt eats things faster. Heat dissipation in boat electrical spaces matters too. Tight spaces trap heat and hurt insulation.

Problem: Lost power boat troubleshooting gets you nowhere. Agitate: You swap the battery yet it dies again. Solution: Test the stator coil resistance on the boat and measure AC from the stator.

How Do I Test a Boat Stator with a Multimeter?

You can do basic tests with a multimeter or an ohm meter. Use your service manual for stator resistance check values. The process is simple and safe when you follow steps.

• Visual inspection: Look for burn marks, broken plugs, and frayed wiring harness boat charging connections.
• Resistance test (engine off): Do an open circuit boat stator test and check coil continuity. Check for short circuit boat stator diagnosis to ground.
• AC voltage output test (engine running): Unplug the stator from the regulator. Start the engine. Measure AC across the stator leads. This gives you peak voltage output stator test numbers at idle and at a higher rpm. You can also use an ammeter boat charging system test on the DC side.

Multimeter boat troubleshooting will also include a voltage drop test boat electrical check from the regulator to the battery. If you suspect a ground fault boat engine electrical issue check ground straps. If your ignition switch power source seems weak trace power back to the battery and fuses.

How Much Does a Stator Repair or Replacement Cost?

Costs vary by engine make and model. Some outboards need the flywheel pulled which takes time. Here is a simple guide you can use.

DIY boat stator repair can save you money if you have the tools. You may need a flywheel puller. Plan one to two hours for basic tests. Plan more time for parts runs. Use marine repair guides electrical sections or your factory manual. If you feel stuck call a marine mechanic who knows marine engine basics electrical.

Problem: You fear a big bill. Agitate: The boat sits while summer flies by. Solution: Do simple tests first and confirm the real fault before you buy parts.

How Do I Keep My Charging System Healthy?

Good care pays off. Here are simple boat engine maintenance tips that work.

• Check connectors and clean them. Use marine grade wire for electrical repairs and heat-shrink.
• Inspect fuses and circuit breakers in your marine electrical system. Keep a small fuse box map.
• Watch battery health. Use a boat battery tender when you store the boat. Keep water levels where needed for wet cells.
• Manage boat engine electrical load. Do not overload with too many accessories at once.
• Keep cooling paths clear around the engine. Heat kills windings and regulators fast.
• Do preventative maintenance on marine electrical parts in spring and fall.

Maintaining boat charging system parts also means you check the regulator/rectifier once a season. Explaining boat voltage regulators gets simple when you think of them as guards. They guard against too high voltage and low voltage. They save the battery and electronics.

Which Engines Use Stators or Alternators?

Smaller outboards often use stators. Think many models from Mercury Marine, Yamaha Outboards, Evinrude/Johnson, Suzuki Marine, and Honda Marine. Larger outboards often switch to alternators. Many inboard engines and stern drives like Mercruiser and Volvo Penta use alternators.

On two stroke classics the stator may also feed the ignition system. On four strokes the stator still makes the charge. Your engine control unit or ECU, spark plugs, and ignition system need steady voltage. Watch for engine performance issues related to power if the charging system goes weak.

You will see brand terms like Mercury outboard stator problems or Yamaha outboard stator replacement in forums. Always use the right manual for your exact model.

Can I Upgrade or Convert My System?

Yes in some cases. You may add a higher output regulator/rectifier on some outboards. You may add a second battery with a battery isolator to power a trolling motor and house loads. You can do an alternator conversion for a boat engine on some engines that allow brackets.

You may also improve onboard electronics power management. Add a voltmeter. Add a simple ammeter. Add circuit breakers where needed. This helps your charging system integrity and boat electrical system health. It also helps when you power boat accessories like a fish finder with tight power requirements.

Problem: You run more lights and new screens. Agitate: The system sags and reboots your GPS. Solution: Plan your auxiliary power boat engine upgrades, choose the right battery types, and size your charging output.

What About Materials, Build Quality, and Laminations?

The stator winding construction and the iron core under it matter a lot. The core uses thin steel sheets called laminations. These cut down heat and losses. Better laminations improve AC to DC efficiency and heat dissipation in boat electrical parts. High grade steel helps magnetic field generation in your boat engine.

If you build, spec, or rebuild stators or alternators you should look at quality laminations:

• Learn how the right stator core lamination design boosts output and lowers heat.
• Match your rotor to the job with proven rotor core lamination options for steady magnetic fields.
• For broader motor projects across marine and industrial uses explore motor core laminations varieties and stack sizes.
• Select clean, consistent electrical steel laminations to reduce losses and noise.

Companies that supply these parts help OEMs and repair shops make stronger charging systems. Good laminations mean longer life and fewer failures. That saves you from that long slow ride home with a dead battery.

Troubleshooting Guide and Simple Diagrams You Can Picture

Picture a boat electrical system diagram in your head. The stator feeds AC to the regulator/rectifier. The regulator feeds DC to the battery. The battery feeds the fuse box and circuit breakers. Those feed loads like navigation lights, bilge pump, fish finder, GPS, VHF radio, horn, and more. The ignition switch power source pulls from the battery through fuses. The ECU, spark plugs, and ignition system need clean power.

Use this checklist when your engine not charging battery problem shows up:

• Check battery voltage at rest and while running.
• Check for warning lights on the dash.
• Check fuse box in the boat electrical system and circuit breakers.
• Inspect wiring harness for damage. Look for loose grounds and a ground fault in the boat engine electrical path.
• Test the rectifier/regulator output. Run a voltage regulator rectifier test on your boat.
• Test the stator resistance. Do open and short tests. Measure stator output voltage on the boat as AC.
• If you still struggle try a marine mechanic for more marine tech tips on charging.

If you like pictures search your manual for a marine engine electrical diagram. It shows connectors, colors, and pinouts. This makes troubleshooting boat electrical problems much faster.

Related Tasks You Can Do Today

Use this list to touch many of the common jobs around your charging system. It will help you understand and act with ease.

• How an outboard produces electricity: Magnets in the boat flywheel pass coils and make AC. A regulator turns this into DC conversion for boat electrical loads.
• Boat charging system components: Stator, rotor or flywheel, regulator, rectifier, battery, wiring harness, fuses, and breakers.
• Boat accessory power: Powering boat accessories like a fish finder, VHF radio, GPS, and navigation lights needs clean DC.
• Understanding marine alternators: Larger engines often use alternators that include rectifiers and regulators inside.
• Purpose of boat alternator: Charge the battery and feed loads while the engine runs.
• How a boat’s engine recharges battery: Stator or alternator sends current to the battery whenever the engine runs.
• Small engine charging system basics: Many small outboards use simple stator systems with modest output watts and amperage.
• Voltage, amperage, and watts: Voltage is push, amperage is flow, watts are total power.
• Boat battery charger types: Smart chargers, onboard chargers, and trickle chargers.
• Shore power boat charging: Charge at the dock with safe gear.
• Solar panels boat charging: Use the sun to top off house batteries while you fish.
• Battery isolator boat function: Charge both banks without letting them drain each other.
• Ignition switch and ECU: Both need clean power or the engine may stall.
• Trolling motor and house bank: Build a separate deep cycle bank for long runs on the lake.
• Fuse box and circuit breakers in marine electrical systems: Protect wires and parts from shorts.
• Voltage drop test boat electrical: Find bad connections and weak wires fast.
• Ammeter boat charging system use: Watch charge rate to spot faults early.
• Inductive charging boat myth vs reality: Wireless charging for phones is common. Engines still use coils and magnets for main power.
• Marine battery types for charging: Starting battery for cranking and deep cycle battery for house loads.
• Boat electronics power supply tips: Use clean power and proper wire gauge to stop resets and noise.
• Preventative maintenance marine electrical: Inspect, clean, and test twice a season.
• Marine repair guides electrical steps: Follow your maker’s manual for safe tests and correct values.
• Evinrude stator test, Yamaha outboard stator replacement, Mercury outboard stator problems: Brand cases change the steps a bit yet the ideas stay the same.
• Alternating current to direct current conversion: Rectifiers do this job. Regulators keep it safe.
• Charging system integrity boat check: Confirm the whole chain from stator to battery to loads.
• Boat electrical system health: Keep wires tight, dry, and protected so trips stay safe.

References

• Mercury Marine, Yamaha Outboards, Evinrude/Johnson, Suzuki Marine, Honda Marine service manuals for specific resistance and voltage specs
• ABYC E-11 Standard: AC and DC Electrical Systems on Boats for wiring and protection best practices
• Manufacturer guides for regulator/rectifier tests and replacement procedures
• Experienced marine mechanic field notes and common failure patterns across outboard and inboard platforms

FAQ

Q: What charges a boat battery while the engine runs

A: The stator or alternator charges the battery while the engine turns. The rectifier/regulator makes sure voltage stays safe.

Q: Can a bad regulator hurt the stator

A: Yes. A failed regulator can overwork the stator which makes heat and can burn windings.

Q: How do I know if the battery died or the stator failed

A: Charge and load test the battery first. If it passes then check stator AC output and the regulator DC output.

Q: Will a bad stator stop the engine

A: It can. If the ignition system depends on stator power the engine may die after the battery runs down.

Q: Do I need a pro to test it

A: You can do basic multimeter tests at home. If numbers look odd or access is hard call a marine mechanic.

Key Takeaways

• The stator makes AC power. A rectifier/regulator turns it into DC to charge the battery and power gear.
• Watch for dim lights, dead batteries, and warning lights as early clues.
• Do simple tests: resistance, AC output, and DC at the battery.
• Keep wires clean and tight. Use proper fuses and circuit breakers.
• Plan your battery banks and loads. Do not overload your system.
• Quality laminations and parts cut losses and heat which boosts life and output.
• Brands differ yet the core ideas stay the same across outboard motor charging systems.
• A healthy charging system keeps you safe and keeps your boat electronics power supply stable.
