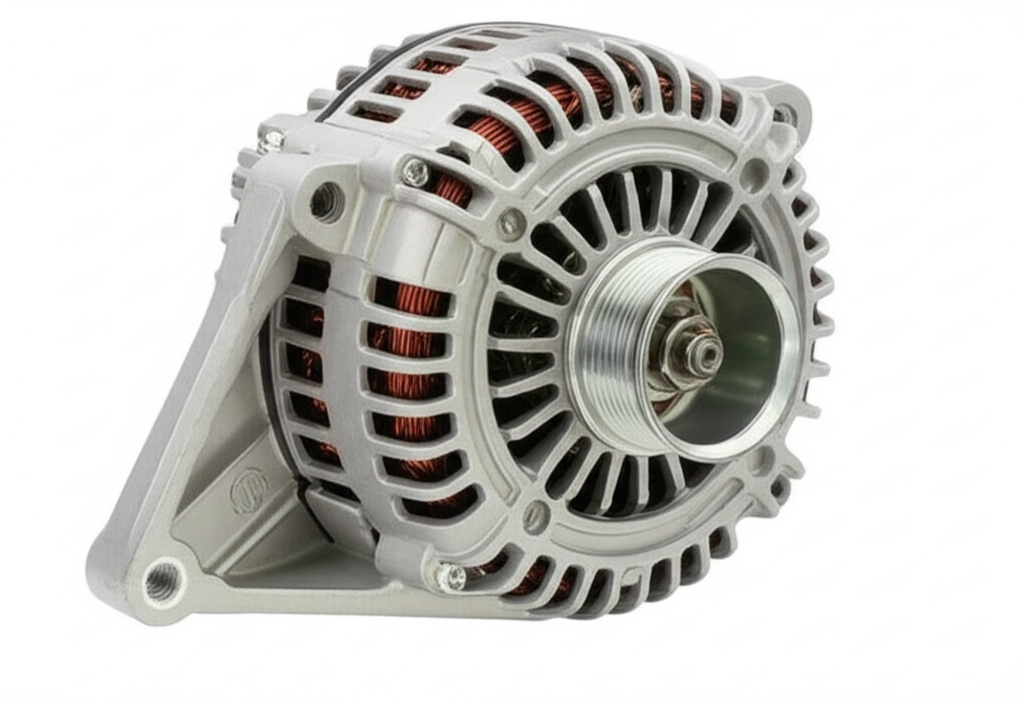

What Does a Stator Do in an Alternator? The Core of Your Car’s Electrical Power

Your car runs on more than gas. It runs on electricity too. This article shows you the simple truth. The stator makes that power inside the alternator. If you want your car to start and your lights to shine, you need to know this. I’ll walk you through it in plain English. You’ll see problems, feel the pain, and find a clear fix.

Table of Contents

• Overview: Your vehicle’s power plant
• What is a stator and why does it matter?
• How does the stator make power?
• What happens to the power after the stator makes it?
• Signs your stator or alternator needs help
• Common stator problems and why they happen
• How to test a stator the smart way
• Generator vs alternator: What’s the difference?
• Design details that boost efficiency and cut heat
• Upgrades, costs, and when to repair or replace
• Real-world numbers: Performance and failure data
• Who makes quality stators and cores?
• FAQ
• Key takeaways

Understanding the Alternator: Your Vehicle’s Power Plant

Your car needs a steady stream of electricity. The alternator gives it. It makes power for the headlights, the radio, the engine control unit, and more. It also keeps the battery full. When the engine spins, the alternator spins. Power flows.

Inside the alternator you’ll find a few key parts. The rotor spins inside a stator. The rectifier turns AC into DC. The voltage regulator keeps the voltage steady. A drive belt and pulley connect the alternator to the engine. Bearings let it spin smooth. The alternator fan and vents help with cooling. Together these parts form the charging system in the automotive electrical system.

Here is the big picture. The engine turns the alternator pulley. The pulley spins the rotor. The rotor’s magnetic field sweeps past the stator’s copper windings. That motion makes electromotive force (EMF). The stator creates AC (alternating current). The rectifier turns it into DC (direct current). The DC charges the battery and powers the vehicle.

The Stator: The Stationary Power Generator

The stator does not spin. It stays still. It’s the stationary armature. It is a ring-shaped iron core with many slots. In those slots sit copper wire coils called windings. The core is made of thin laminations. The laminations cut eddy current losses and hysteresis losses. That helps with heat dissipation and alternator efficiency.

So what does the stator do? It makes the raw electricity. The stator is where the magic happens. The rotor moves. The stator turns that movement into energy. It is the heart of automotive power generation. Without a working stator you get no power. No lights. No charge. No start.

Let’s compare parts. The rotor spins and makes a moving magnetic field. The stator holds the windings. The field from the rotor crosses the windings. That creates electrical energy production. The rotor needs field current through slip rings and brushes in many designs. Some newer units use brushless alternator (modern designs). In both cases the stator still makes the alternating current output.

How the Stator Works: The Principle of Electromagnetic Induction

Let’s keep it simple. The wheel turns. The field moves. The wire sits still. When a rotating magnetic field cuts the wire, current flows. That’s electromagnetic induction. It follows Faraday’s Law and Lenz’s Law. A changing magnetic flux in a coil makes voltage. We call that EMF. When the rotor turns faster, the change happens faster. RPM and output rise together.

The stator uses a three-phase winding. Three sets of coils sit in the core. The coils are spaced apart. As the field spins, each phase rises and falls. Current reverses with each turn. You get AC current generation with smooth output and low ripple. Engineers pick a winding configuration like Wye winding connection or Delta winding connection. Wye helps with higher alternator output voltage at low speed. Delta helps with higher amperage output. Both use flux linkage and inductance of coils to shape the output.

Why does the core use laminations? The stator core laminations guide the field into the windings. Thin sheets block loops of wasted current in the iron. That cuts heat. It also lowers eddy currents, hysteresis, and noise. The result is more power with less waste.

The Stator’s Critical Role in the Alternator System

• Producing raw power: The stator turns mechanical to electrical energy. Every watt the alternator makes starts in the stator’s windings.
• Feeding the rectifier: The stator sends the three-phase AC to the rectifier. The diode pack and diode trio function change it to DC. The DC then flows to the car.
• Supporting the vehicle’s electrical load: The alternator supplies the vehicle power supply. It runs lights, the infotainment, HVAC blowers, wipers, and engine compartment electricity. It also powers the engine control and other automotive electronics.
• Battery charging: The battery charging function relies on the stator. The voltage regulator watches system voltage. It adjusts field current to keep regulated voltage in the safe range.

Why a Healthy Stator Is Essential for Your Vehicle

Problem: Your battery warning light glows on the dashboard warning light panel. The lights dim. The radio cuts out. The car stalls at a light. You feel stuck.

Agitate: You try to start the car again. The starter clicks. The battery is weak. You hear a whining noise alternator under the hood. Maybe you smell a burn. You worry you’ll need a tow. You worry the alternator replacement cost will hurt.

Solution: Check the charging system operation. If the stator fails, the alternator can’t feed the car. A working stator gives stable direct current output. It prevents undercharging battery and overcharging battery. It stops voltage fluctuations that kill electronics. A healthy stator keeps you moving with clear lights and strong starts.

Common Stator Issues and Their Causes

• Burnt or shorted windings: Burnt stator windings come from high heat. This heat can come from overload, poor cooling, or stator insulation breakdown. Bad wire insulation can let turns touch. That is a short circuit stator fault.
• Open circuits: An open circuit stator has a break in the coil. No path means no current flow direction. This stops output on that phase.
• Ground faults: A grounded stator winding touches the metal iron core. That creates a short to ground. Heat rises. Output drops.
• Vibration damage: Over time, shakes can wear the insulation. Loose mounts or worn bearings make it worse. Vibration damage can lead to shorts or opens.
• Heat problems: Bad alternator cooling system, blocked vents, or weak alternator fan can raise heat. Bad heat sink diodes can add to it. Heat kills insulation fast.

Other issues tie back to design. Poor stator material composition can boost losses. Wrong number of poles alternator and poor output phases design can hurt output at idle. Low-cost parts may skimp on copper or steel. That hurts alternator efficiency.

Testing and Maintaining Your Alternator’s Stator

You can do basic checks at home. Use a multimeter. With the battery disconnected, check electrical continuity test between the stator leads. Measure stator coil resistance phase to phase. It should match. Any phase that reads open is bad. Any phase to ground should read open. A reading to ground means a short. You can also check for voltage drop in stator while the alternator runs with a shop tester.

Shops can use a growler test stator on a bench. They also use scopes to read three-phase power waveforms. A trained tech will also inspect for burns, melted wire insulation, or cracked laminations. Many times, stator issues call for a full alternator swap. You can buy an alternator rebuild kit. Yet for most drivers a full unit makes more sense. Many brands offer quality units like Bosch, Denso, Valeo, and Delco Remy.

Prevent problems with simple care. Keep the drive belt tight. Listen for bad bearings. Check the wiring harness for clean and tight connections. Follow a basic alternator troubleshooting guide if the light comes on. Do preventative maintenance alternator checks when you change the oil.

What Happens to the Power After the Stator Makes It?

The stator makes alternating current output. The rectifier bridge turns AC into DC. The diode pack acts like one-way valves. The current rectification process smooths the flow. The voltage regulator then holds regulated voltage. It trims the field current going into the rotor’s field coil through slip rings and brushes. That sets the output to match the electrical load management needs.

As you turn on more loads, the load on alternator climbs. The alternator responds. It raises amperage output to hold alternator output voltage steady. If RPM and output fall at idle with heavy loads, the lights can dim headlights reason becomes clear. You may see low voltage. A high output alternator can help for big audio or added lights. Performance alternators use better parts and cooling.

Generator vs Alternator: What’s the Difference?

An older automotive generator uses a different design. The armature spins. The output is DC or needs a commutator. A modern alternator uses a stator as the armature and makes AC. It then uses diodes to make DC. The alternator runs cooler and lighter. It makes more power at low speed. That is a big difference generator alternator point.

Design Details That Boost Efficiency and Cut Heat

Engineers improve alternators with smart alternator construction. They optimize winding configuration and number of poles alternator. They use better steel. They reduce eddy current losses and hysteresis losses with quality laminations. They shape slots and coils to raise magnetic flux and flux linkage. They design better heat dissipation alternator paths with fins and heat sink diodes.

The core matters a lot. High grade electrical steel and tight laminations help performance. The spacing and shape of copper windings matters. Good wire insulation resists heat. Strong slot wedges keep the coils tight. Good cooling keeps heat down and makes parts last.

• To see how quality cores help, explore stator core lamination.
• The spinning core needs the same care. Learn more about rotor core lamination.
• Many makers rely on high grade electrical steel laminations for lower loss.
• If you build or source assemblies, review full-scope motor core laminations.

Upgrades, Costs, and When to Repair or Replace

You can go for an alternator upgrade if you add loads. Use a high output alternator for big stereos or off-road lights. Choose units with strong cooling and better diodes. Pick quality brands like Bosch, Denso, Valeo, or Delco Remy. Look for strong OEM stator quality or a trusted aftermarket stator if you rebuild.

Let’s talk money. Alternator replacement cost varies. Parts and labor differ by car. A compact car may be cheaper. A luxury SUV may cost more. A rebuild can save cash if the shop has skill. A full reman unit from a major brand can give peace of mind. Alternator remanufacturing often replaces the rectifier, voltage regulator, brushes, diodes, and bearings. It also tests the stator coil resistance and checks for shorts and opens.

Real-World Numbers: Performance and Failure Data

Here’s a simple table you can use when you test or talk with your tech.

If numbers sag under load, look for a weak field current, a bad rectifier, a failing voltage regulator, or a damaged stator. If voltage spikes, you risk overcharging battery. If it drops, you risk undercharging battery. Both can trip the battery warning light.

Who Makes Quality Stators and Cores?

I’ve seen the difference that great cores make. Tight laminations. Correct steel grade. Clean slots. It all adds up to better electromotive force (EMF) and cooler running. If you build, spec, or source, pick a trusted maker for cores and laminations. Teams that focus on precision laminations help cut losses and boost life. They use the right silicon content and coat layers to reduce eddy currents. They also keep the stack height and tooth shape tight to design. That’s how you win on alternator efficiency and durability.

When you shop for alternators, Bosch, Denso, Valeo, and Delco Remy offer proven units. If you spec components or need custom cores, review suppliers that focus on stator and rotor laminations, electrical steels, and complete core stacks, as shown in the links above.

PAS in Practice: From Problem to Solution

• Problem: The car stalls at night. The dashboard warning light comes on. Lights flicker. The battery dies. You miss work.
• Agitate: You pay for a tow. You replace the battery. It dies again. The shop says the alternator may fail. You fear the bill.
• Solution: Test the system right. Check the alternator, the stator, and the rectifier. Verify alternator output voltage, amperage output, and ripple. Confirm the winding configuration and state of the laminations. Choose a solid fix. Use quality parts and cores. Keep the drive belt function correct. Make sure the wiring harness is clean and tight. Your car starts strong and runs right.

Field Details: From Physics to the Road

• The stator uses magnetism in alternators to convert motion to power. It channels magnetic flux through an iron core to raise induction.
• The rotor’s field coil gets field current through slip rings and brushes. The voltage regulator changes that current to control output.
• A brushless alternator uses electronics and avoids brushes. The stator still makes the energy.
• Lenz’s Law sets the current flow direction that opposes the change in flux. This keeps the system stable.
• The electromotive force (EMF) comes from the changing flux as the rotor spins by the stator coils. That is the heart of automotive electrical theory.

Troubleshooting Quick Guide

• If you see the battery warning light, test the system.
• If you get dim headlights reason is often low voltage at idle. Test RPM and output.
• If you hear a whining noise alternator, suspect a bad diode or a shorted phase in the stator.
• If you smell a burn, look for burnt stator windings or a failing rectifier.
• If the battery dies often, check for undercharging battery or overcharging battery due to a bad voltage regulator.

Extra Notes on Materials and Parts You May See

You might hear about steel grades and core styles in the shop or catalog. They matter. Core design affects heat dissipation alternator, strength, and loss. You may also see:

• Stacks made with silicon steels and coated sheets for low loss.
• Tight slots to hold copper windings secure under high load on alternator.
• Balanced three-phase power for smooth DC after rectification.

You may also hear about parts or cores used in other gear. A transformer lamination core, an ei core, a ui lamination core, a crgo lamination core, or a crngo lamination appear in power gear and motors. These help cut losses and raise the magnetic path quality. The same ideas apply in alternators and motors where electromagnetic induction rules.

FAQ

• What does a stator do in an alternator?
• It makes the AC power. The rotor’s magnetic field sweeps by the stator coils. That motion induces EMF. The stator sends the AC to the rectifier for DC.

• Can I drive with a bad stator?
• Not for long. The battery will drain. You’ll lose lights and engine control. You may get stranded.

• How do I test a stator?
• Use a multimeter. Check stator coil resistance and for shorts to ground. Use a growler test stator in a shop. Check ripple and output at the battery.

• What causes stator windings to burn?
• Heat and overload. Weak cooling, high electrical load management demand, and bad insulation lead to burnt stator windings.

• Will an upgrade help my big audio system?
• Yes. A high output alternator can supply more amperage output at idle and cruise. It can keep regulated voltage steady.

References

• Bosch Automotive Handbook, 10th ed., Robert Bosch GmbH.
• Delco Remy Technical Bulletins: https://www.delcoremy.com/Technical/tech-bulletins
• DENSO Alternators: https://www.densoautoparts.com/alternators
• Valeo Service Alternators: https://www.valeoservice.com/en-com/passenger-cars/electrical-systems/alternators
• Khan Academy, Faraday’s Law and Lenz’s Law: https://www.khanacademy.org/science/physics/magnetic-forces-and-magnetic-fields/magnetic-flux-faradays-law/a/faradays-law-and-lenzs-law
• Wikipedia, Alternator: https://en.wikipedia.org/wiki/Alternator

Summary: Most Important Things to Remember

• The stator is the still part inside the alternator that makes power through electromagnetic induction.
• The rotor spins a magnetic field across the stator’s copper windings to create AC. The rectifier turns it into DC.
• A good stator keeps the battery charged and powers the car electrical system under all loads.
• Watch for signs like the battery warning light, dim lights, whining noise alternator, or a burnt smell.
• Test with a multimeter. Check resistance phase to phase and to ground. Look for shorts, opens, or voltage fluctuations.
• Heat is the enemy. Quality laminations, strong insulation, and good cooling reduce eddy current losses and hysteresis losses.
• For strong results, choose quality parts and proven brands. Consider high grade stator core laminations and rotor core laminations to boost alternator efficiency and life.
• If you add more load, consider a high output alternator or performance alternators. Keep the drive belt and wiring harness in top shape.
• No stator means no power. Keep it healthy and your car stays happy.
