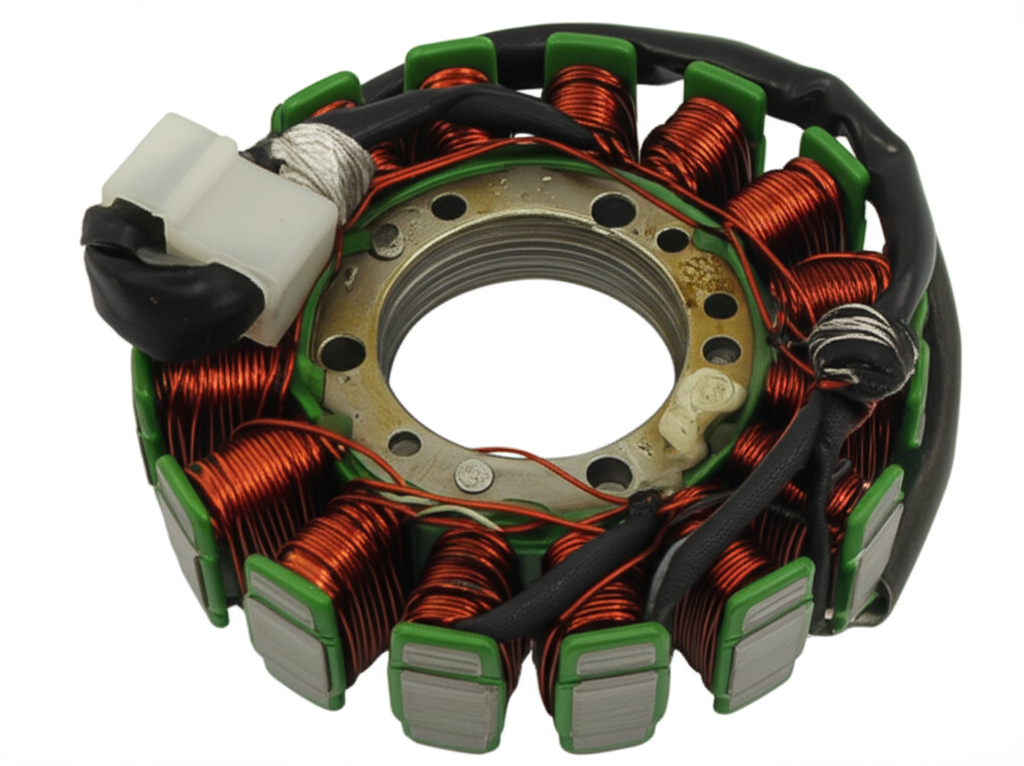

What Does a Bad Stator Look Like? Visual Cues & Diagnostic Signs

Table of Contents

• What Does a Bad Stator Look Like? Visual Cues & Diagnostic Signs
• Outline
• What is a stator and why does it matter?
• What does a bad stator look like?
• Do smell and sound reveal a bad stator?
• What symptoms point to stator failure on the road?
• How do I test a stator with a multimeter?
• Should I check the regulator/rectifier and the battery too?
• Why do stators burn out or fail early?
• Can better parts prevent failure?
• Should I repair or replace the stator?
• How much will it cost and how long does it take?
• Data you can use right now
• FAQ
• References
• Key takeaways

Your stator keeps your battery charged and your engine’s spark strong. When it goes bad your ride suffers. In this guide I show you the visual cues, the symptoms, and the tests that confirm stator failure. You will see what to look for. You will also learn why stators fail and how better parts prevent the same headache.

Outline

• What is a stator and why does it matter?
• What does a bad stator look like?
• Do smell and sound reveal a bad stator?
• What symptoms point to stator failure on the road?
• How do I test a stator with a multimeter?
• Should I check the regulator/rectifier and the battery too?
• Why do stators burn out or fail early?
• Can better parts prevent failure?
• Should I repair or replace the stator?
• How much will it cost and how long does it take?
• Data you can use right now
• FAQ
• Key takeaways

What is a stator and why does it matter?

I like simple. Think of the stator as the fixed half of a charging system. The rotor or flywheel spins past it. Magnets move by the windings and make AC power. The rectifier and voltage regulator turn that AC into DC to charge the battery. Your lights and EFI need this. Your CDI unit or ignitor unit needs this too.

You see stators in a motorcycle, an ATV, a UTV, a generator, an outboard motor, and some cars. Some systems use a magneto. Some are part of an alternator that also has a rotor and a stator inside a case. It does not matter which ride you own. If the stator fails you get weak battery symptoms, no spark, or poor charging system output.

Here is the problem. A stator can fail in silence. You might not see it until you pull a cover. You might not notice it until a night drive with flickering headlights and a dead battery. That can leave you stuck. That can kill your weekend. The solution is to spot the signs early and test it right away.

What does a bad stator look like?

A bad stator often tells its story. I look first. Then I test. What do I look for?

• Discoloration: You may see burnt stator windings. The copper looks dark brown or black. You may see black spots on the stator. Local heat makes hot stator winding areas. If the color is even and clean that looks normal.
• Melted or brittle insulation: You may see melted stator insulation, varnish peeling, or epoxy cracking. Insulation can look cracked. You may see exposed copper windings.
• Physical damage: Look for frayed stator wires, broken lead wires, swollen stator coils, or loose windings. You may see physical damage stator from vibration or debris. Laminations in the core should look smooth and tight. No rust. No dents.
• Oil or water intrusion: You may see oil contaminated stator. You may see corrosion on stator from water intrusion. This can lead to a ground fault stator.

If I see discolored stator coils or melted insulation I think heat. If I see frayed wires I think rub or pull. If I see varnish peeling and epoxy cracked I think overheating and age. These are classic stator failure signs.

Do smell and sound reveal a bad stator?

Use your nose. A burned stator puts out a burning smell from engine. It smells like hot plastic. That distinct burnt odor often shows a cooked coil. If the rectifier regulator fails you may smell it too.

Sound helps at times. A stator sits still. It does not grind like a bad bearing. Yet you can hear a whining noise electrical or a hum when electrical noise hits the system. You might also hear whining or grinding if the flywheel rubs the stator after a crash or bad install. That is not common. It can happen though.

Smell and sound do not prove failure by themselves. They add to the picture. I use them with visual clues and tests.

What symptoms point to stator failure on the road?

Here are symptoms I see a lot. These charging system diagnostics point to stator or voltage regulator issues.

• Weak or dead battery: You charge it then it dies fast. That can be from battery drain or poor charge. A bad stator causes premature battery death.
• Dim or flickering headlights: Flickering headlights cause often ties to low volt output. Dash lights can dim too.
• Battery light on dash: Many bikes and cars use a light. It warns when system voltage is too low or too high.
• Hard starting: The engine cranks slow. You hear clicks. You get hard starting symptoms and rough idle electrical fault.
• Engine performance issues: You might see engine stalling electrical, engine misfire electrical, misfires, or poor acceleration. A weak charge hits EFI and fuel pump electrical. It can mess with coil pack electrical and spark plug fouling. Some systems use CDI or ignitor unit so poor charge hurts spark.
• Overheating in the system: The stator or regulator/rectifier can run hot. The smell tells you. The touch test warns you.

If your ride logs diagnostic trouble codes (DTCs) then scan them. Some DTCs point to engine management issues and low voltage. That gives you a clue. It does not confirm the stator yet. You still test.

How do I test a stator with a multimeter?

I start safe. I take off the seat or side cover. I disconnect the battery negative. I unplug the stator wires. I check the service manual for specific Ohm readings and stator winding resistance specs.

Then I run three simple tests with a multimeter.

1) Resistance and continuity test

• Set to Ohms.
• Test resistance between phases on a 3-phase stator. You should see low and equal values. Most read about 0.1 to 1.0 Ω.
• Test stator to ground resistance. You should see open or infinite.
• A shorted stator shows near 0 Ω between wires or to ground. An open circuit stator shows infinite between wires.

2) AC voltage output test

• Plug the meter to AC volts.
• Start the engine.
• Read AC voltage output stator at idle then at 3,000+ RPM.
• Many units show about 20 to 70 VAC per 1,000 RPM per phase. Check your AC voltage output specs.
• Low voltage or unbalanced phases show a weak or internal stator short.

3) Visual and heat check

• Use an IR thermometer if you can.
• Look again for discolored coils, epoxy cracking, or stator coil discoloration.
• A hot stator winding points to overheating and high current draw. You can also do a current draw test and a voltage drop test on the harness.

I also inspect the flywheel and rotor. I look for rub marks and metal bits. I do a quick flywheel inspection and rotor inspection if I see damage. If magnets move or crack that can cause magnetic field issues and cook a stator.

Should I check the regulator/rectifier and the battery too?

Yes. Many riders swap the stator then miss the real cause. A bad rectifier or voltage regulator can kill a good stator. It can send too much current. It can fail to clamp voltage.

• Test the battery first. Use a load test if you can. A weak battery makes false trails.
• With the engine running read battery voltage at idle and at 3,000 to 5,000 RPM. Normal is about 13.5 to 14.8 VDC.
• If the voltage stays below 12.5 VDC the system does not charge.
• If the voltage goes over 15 VDC the regulator/rectifier likely failed. That can burn a stator.

You can test the rectifier regulator combo with a diode test. Follow the service manual. You can also swap a known good unit. Check the wiring harness for bad plugs or a bad wiring harness. I have seen a good stator cook due to a corroded ground.

Why do stators burn out or fail early?

I see the same root causes again and again.

• Overheating: High current and poor cooling cook the insulation. You see insulation breakdown and melted insulation. You may see a winding short to core.
• Age and wear: Time dries varnish and epoxy. Age related stator failure shows cracked potting and brittle wires.
• Regulator/rectifier failure: A bad R/R sends too much current. System voltage too high overheats windings.
• Electrical overload or short circuits: Add-ons and shorts push the system. Electrical system failure follows.
• Vibration and physical stress: Loose mounts and harsh roads cause mechanical stress on stator. Vibration damage stator rubs the coil.
• Corrosion and water: Water intrusion stator leads to corrosion on stator and ground fault stator.
• Oil contamination: Oil can soak some coils. That holds heat and dirt.
• Poor manufacturing or defects: Weak laminations, poor epoxy, thin varnish, or off-spec copper can fail fast.

You also see use cases. High RPM stator failure hits race bikes. Low RPM charging issues hit big twins in traffic. Intermittent charging shows up when heat rises then falls.

Can better parts prevent failure?

Yes they can. Strong stator core lamination and clean electrical steel laminations matter. The core guides the magnetic field. Good steel with tight laminations runs cool. That helps the windings live longer.

• Learn how quality laminations help stators last in this guide on stator core lamination.
• If you build or spec motors you can review full lines of motor core laminations.
• The rotor matters too. See how the stack works with rotor core lamination.
• For material basics and grades read about electrical steel laminations.

This is the solution side. A better core runs cooler. Better steel cuts eddy loss. Tight stacks fight vibration. This protects the windings, the insulation, and the varnish. It helps the charging system do its job. It also helps BLDC motors and magneto systems. Good core parts reduce electrical noise symptoms too.

Should I repair or replace the stator?

You can fix some stators. You can rewind the coils. You can re-pot with epoxy and varnish. This is DIY stator replacement or repair if you have skill. I have done it on old dirt bikes. It takes time. It takes a good stator test kit and a steady hand.

In most cases I suggest replacement. A new OEM stator fits right and meets specific Ohm readings and AC current test specs. An aftermarket stator can work if it uses good wire and clean laminations. Ask about the rectifier regulator too. Many riders swap them as a pair.

Before you swap confirm the cause. If the regulator failed then a new stator will fail again. If the wiring harness is bad then clean it or replace it. Fix the root cause first.

How much will it cost and how long does it take?

Cost varies by model.

• Parts: An aftermarket stator can run $50 to $400. An OEM unit can run $200 to $800+. A new rectifier regulator combo can add $50 to $300.
• Labor: Many shops charge $100 to $500 based on access. Some alternators need removal from the car. Some bikes need a side cover and a new gasket.

Time depends on access. A simple motorcycle stator swap can take one to three hours. A generator stator failure fix can take longer. An outboard motor stator test and swap may take more time due to routing and seals. Plan for new gaskets and fresh oil if you open an engine cover.

Data you can use right now

Here is a handy table you can print and use. Always check your service manual for your exact specs.

I also like to log mileage and time. Many motorcycle stators fail around 30,000–50,000 miles or 5–10 years if the cooling is poor. Marine outboard stators see salt and heat so they can fail faster. ATV stators deal with mud and water. That means corrosion and shorts. Automotive alternator stators sit in a case so they often last longer yet they still die from heat and rectifier symptoms.

FAQ

Q: Can a bad stator cause a no spark condition?

A: Yes. On CDI and magneto systems the stator makes ignition power. If it fails you get no spark and engine stalling electrical.

Q: Can a bike run with a bad stator?

A: It can run for a short time on the battery. Then it dies. You will see dim or flickering headlights and a battery warning light. The bike may misfire or rough idle.

Q: How do I tell stator vs regulator failure?

A: Do the AC voltage output test at the stator plug. If AC looks good then test DC at the battery. If DC is low the R/R is likely bad. If AC is low the stator is likely bad.

Q: Does a bad stator make noise?

A: Not by itself. You can hear a whining noise electrical if the rotor rubs or if electrical noise hits the system.

Q: Can I rewind at home?

A: Yes if you have skill and tools. Many riders choose a new OEM or a quality aftermarket unit due to time and risk.

References

• OEM Service Manual for your specific model: wiring diagrams, test values, and torque specs.
• Fluke Corporation. “Digital Multimeter Basics.”
• Martin, Tracy. “Motorcycle Electrical Systems: Troubleshooting and Repair.”
• Manufacturer datasheets for rectifier/regulator testing.
• SAE resources on alternators and charging systems.

Key takeaways

• Look for discoloration, melted insulation, cracked epoxy, frayed wires, and swollen coils. These are the top visual cues.
• Confirm with a multimeter. Check resistance between phases, stator to ground resistance, and AC voltage output at RPM.
• Do not forget the regulator/rectifier and the battery. Many failures come as a pair.
• Heat kills. Overheating, vibration, corrosion, and R/R failure are the big causes of stator failure.
• Better cores and materials help. Study quality laminations and steel to reduce heat and electrical noise.
• Decide on DIY or professional stator repair based on your time and skill. Check OEM specs and use good parts.
• Fix the root cause so the problem does not come back. Test the full charging system and the wiring harness before you ride.
