Unraveling The Mystery: What Does A Stator Do On An Outboard Motor?

Table of Contents

The short answer
The heart of your outboard’s electrical system
Magnetism 101: How coils and flywheel magnets make power
Stator vs magneto vs alternator
Key functions of an outboard stator
Powering the ignition system
Charging the battery
Supplying power to electrical accessories
How the stator works with other components
Inside the stator: laminations, materials, and why they matter
Signs of a failing outboard stator
Diagnosing problems: how I test an outboard stator with a multimeter
Quick decision tree: no charge vs no spark
Open and short circuit tests
AC output tests
Resistance tests
Peak voltage (DVA) notes
Why stators fail and how to prevent it
Costs, parts, and whether to DIY or hire a pro
Maintenance tips that actually help
Quick answers to common questions
Conclusion

The short answer

When someone asks me what a stator does on an outboard motor I give them the plain version first. The stator is the fixed bundle of coils under the flywheel. The flywheel carries permanent magnets. As the engine spins the flywheel those magnets sweep past the stator coils and create AC voltage. That AC feeds two things on most outboards. It powers the ignition system so your spark plugs actually fire. It also runs the outboard motor charging system by sending AC to a rectifier/regulator that turns it into DC to charge the battery and run accessories like navigation lights, bilge pumps, fish finders, trim/tilt, and fuel injection.

If your battery won’t charge or your engine cranks but won’t start the stator sits high on the suspect list.

The heart of your outboard’s electrical system

I learned early in my marine-engine days that outboards don’t waste space. That stator sits tucked beneath the flywheel near the crankshaft at the top of the engine block. It looks like a ring of copper coils locked to the engine. The flywheel spins over it with magnets glued or embedded around its rim. You can’t see much with the flywheel on. You see a wiring harness coming off the stator with output wires headed to the rectifier/regulator and the ignition control box such as a CDI unit or ECU.

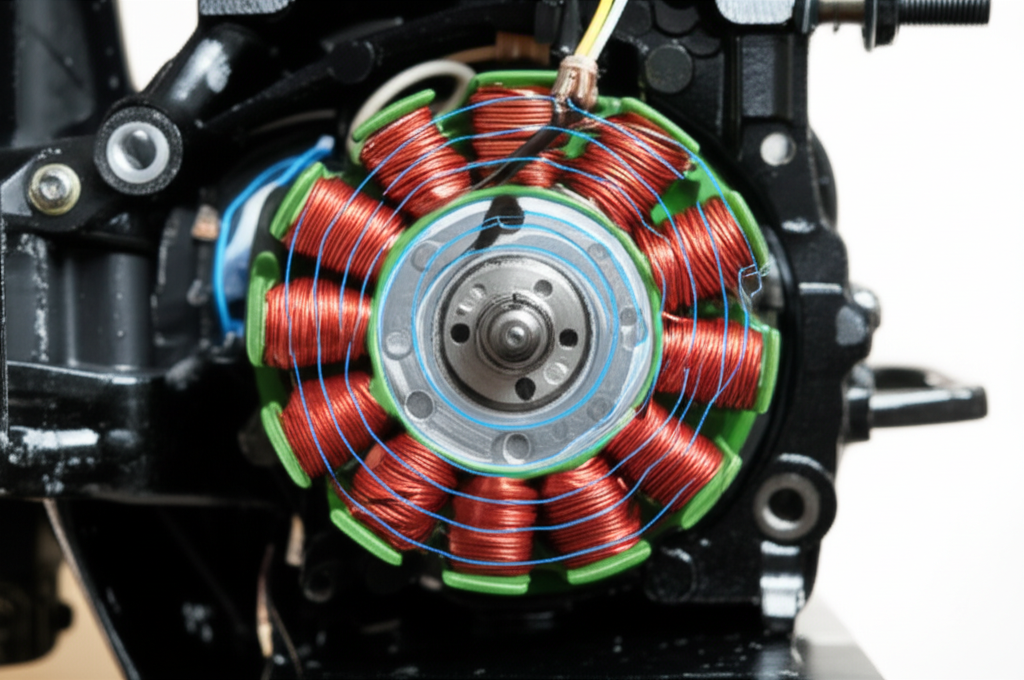

What is a stator in simple terms? Think of it as the stationary half of a generator. The flywheel plays the role of the rotor. Together they generate electrical power anytime the engine runs.

Magnetism 101: How coils and flywheel magnets make power

Here’s the short physics lesson I give boaters on the dock. Moving a magnetic field past a coil of wire induces voltage. Your outboard uses permanent magnets on the flywheel and copper windings on the stator to make AC. That’s AC voltage generation outboard style. The principle is the same as any magneto or alternator. The stator coil function depends on the number of windings, the strength of the magnets, the speed of rotation, and the design of the core. Higher rpm means higher frequency and often higher output. That raw AC needs handling before your battery can use it which is where the rectifier/regulator comes in.

Stator vs magneto vs alternator

I hear this a lot on the ramp. What’s the difference between a stator and an alternator? Or outboard magneto vs stator. On most small and mid-size outboards the stator plus flywheel magnets act like a built-in magneto-style alternator. No belts. No separate alternator case. It’s compact and rugged which suits marine engine electrical system design.

Stator: The stationary coil assembly. Generates AC when magnets pass it.
Magneto: A self-contained generator used in older or simpler ignition systems. Many folks call outboard stator setups “magnetos” because the concept matches.
Alternator: A more traditional automotive-style generator. Some large outboards use a belt-driven alternator or a high-output stator system that functions similarly. The difference between stator and alternator boils down to packaging and how the rotor moves relative to the stator yet both generate AC that gets rectified to DC.

Key functions of an outboard stator

Powering the ignition system

My first “a-ha” moment with stators came on a two-stroke that cranked hard yet refused to start. No spark. The stator had an open exciter coil that was supposed to feed the CDI unit. No exciter power meant the CDI couldn’t charge its internal capacitor which meant the spark plugs stayed silent.

The stator generates high-voltage AC for the ignition. Different coils on the stator do different jobs such as the exciter coil, source coil, or charge coil for the CDI.
The CDI unit function outboard depends on that exciter power. The CDI charges a capacitor then dumps it through an ignition coil at the right timing. The spark plugs fire.
A pulsar or pulsator coil (often called a pulser or timing coil) may sit near the flywheel to tell the CDI when to fire. That’s the role of stator in engine timing.
Symptoms when this side fails include outboard motor no spark troubleshooting headaches, engine not starting due to stator failure, or intermittent spark that makes the engine run rough then die.

Charging the battery

I often get the question why is my outboard battery not charging. Nine times out of ten it’s either a bad rectifier/regulator or weak stator output.

The stator produces AC current across dedicated charging windings. Those output wires from stator outboard usually head to a rectifier/regulator.
Rectifier/regulator function outboard: The rectifier converts AC to DC. The regulator keeps voltage in a safe range so you don’t cook the battery or electronics. This is DC conversion for battery charging.
A healthy system keeps the battery at a typical operating voltage of about 13.8 to 14.6 volts once you come off idle. That’s your quick how to check outboard voltage output tip. Put a multimeter on the battery posts with the engine running.
Failures here lead to battery charging issues outboard, outboard motor battery drain on the water, dim lights, or a dead battery at the worst time.

Supplying power to electrical accessories

Your stator doesn’t just wake up the ignition and top off the battery. It also feeds the outboard engine power supply for loads like navigation lights, bilge pump, fish finder, trim/tilt, fuel injection systems, and the ECU or ECM on modern engines. Some of that power comes directly from the battery once the rectifier/regulator has done its job. Everything ties together.

How the stator works with other components

Flywheel: The rotating “rotor” carries permanent magnets. Those flywheel magnets outboard create the changing magnetic field that the stator needs.
Rectifier/Regulator: Converts AC to DC and keeps voltage steady. If it fails it can overload the stator and cause overheating stator outboard damage.
CDI or ECU: Receives AC power from specific stator windings. It handles timing and spark energy delivery.
Battery: Stores DC power. Provides the initial starting current for the starter motor and stabilizes voltage for accessories.
Wiring Harness and Connectors: Carry AC and DC around the marine engine. Corrosion on outboard electrical components here causes big headaches.

Inside the stator: laminations, materials, and why they matter

When I pull a flywheel and look at the stator core I look for heat discoloration, cracked potting, and winding damage. Beneath the epoxy and copper sits a core made from thin steel laminations. Those laminations reduce eddy current losses and improve efficiency. Better core design means more output for the same rpm. If you’re curious about the hardware that lives inside electric machines you’ll appreciate how the quality of the stator core lamination influences performance. Engineers use specific electrical steel laminations and build up precise motor core laminations to hit output targets without adding heat. The flywheel side acts like the rotor so learning about rotor core lamination also helps you see the full picture. Good materials matter. They help the stator stay cool and last longer.

Signs of a failing outboard stator

I keep a running list on my phone. These are the bad stator symptoms outboard owners tell me most often.

Battery not charging after a long run. You get back to the dock with a depleted battery.
Engine cranks but won’t start. No spark or weak spark once the engine warms up.
Intermittent engine misfires or stalling at idle. The outboard motor dying at idle can point to a weak exciter or charging coil.
Dim or flickering lights. The classic dim lights outboard stator symptom shows up when voltage sags.
Overheating rectifier/regulator. A shorted stator winding can stress the regulator and cook it.
Visual damage under the flywheel. Burnt windings and melted insulation show up on old outboard motor electrical systems after years of heat and vibration.
On the meter you see low voltage or low AC output from the stator. That’s a quick sign of a weak stator or poor magnetic field.
A pattern. The engine runs fine cold then fails hot. That screams heat-related winding breakdown.

Diagnosing problems: how I test an outboard stator with a multimeter

I’m a big fan of simple marine electrical diagnostics. I always start with the easy stuff.

1) Safety and prep

Disconnect the battery if you’re opening connectors.
Inspect connectors for green crust, loose pins, or melted plugs. Many outboard motor electrical problems start with a beat-up connector.
Check grounds from battery to block. A bad ground makes good parts look bad.
Confirm battery health. A weak battery can mask charging faults.

2) Quick decision tree: no charge vs no spark

Battery not charging symptom only while the engine otherwise runs well. Focus on charging windings and the rectifier/regulator.
No spark or intermittent spark. Focus on exciter/source/charge coils for the CDI and the pulser/timer coil.

3) Open and short circuit tests

Open circuit stator test: With the engine off and connectors unplugged measure resistance of each stator winding pair. An infinite reading means an open winding.
Short circuit stator test: Check each stator lead to engine ground. It should read open. Any measurable resistance to ground usually means a shorted winding or chafed wire.

4) Resistance tests

Stator resistance test outboard checks vary by brand and model. Yamaha outboard stator problems won’t always read the same ohms as Mercury outboard stator issues. Suzuki outboard stator output specs differ again. Use the service manual or an official outboard engine wiring diagram to match your color codes and expected ohm values.

General approach

Locate the charging coil wires usually two yellows or similar. Measure coil-to-coil resistance. Compare with spec.
Locate the exciter or source coil wires for the CDI. Measure resistance as listed.
Measure pulser/timing coil if applicable. It often reads a few hundred ohms to a few kilo-ohms depending on design.

5) AC output tests

Testing stator with multimeter while running tells you a lot. Put your meter in AC volts. Carefully back-probe the charging coil leads with the connector plugged in if possible.

At idle you should see an AC voltage that rises with rpm. The actual number depends on engine and coil design. The trend matters.
If AC output is low at all rpm you likely have weak magnets or a failing coil or a laminated core problem that’s heating up.
If AC output looks good yet the battery sits at 12.3 volts the rectifier/regulator probably failed. That answers what does a rectifier do on an outboard and why it matters.

6) Peak voltage (DVA) notes

Some CDI systems need a peak voltage adapter often called a DVA to measure the exciter output correctly. A standard meter averages AC and misses the peaks that fire the CDI. If you chase outboard motor no spark troubleshooting on brands like Yamaha, Mercury, Evinrude, Honda Marine, Johnson Outboards, Tohatsu, or Suzuki Marine grab a DVA. It saves hours. Always match tests to the manual. Different models route exciter and charge coil function outboard in different ways.

Why stators fail and how to prevent it

I’ve replaced stators that lasted 15 years. I’ve also pulled fried windings on engines that saw two seasons of hard trolling. The causes of low voltage output outboard and stator death tend to cluster.

Heat: The number one killer. Engine heat and poor ventilation around the coils bake insulation. High-rpm running near docks on hot days drives temperatures up.
Corrosion: Saltwater intrusion eats connectors and wicks into windings. The impact of salt water on stators shows up as green or black corrosion on leads.
Vibration: Outboards shake. Vibration leads to wire fatigue and cracked solder joints inside the potted stator.
Overload: A failing rectifier/regulator can short a winding and cook it. Excessive accessory draw can stress the charging system on smaller engines.
Environmental factors: Humidity, thermal cycling, and old fuel smells that come from leaky tanks don’t help. Environmental factors affecting stators are real even if you can’t see them.

Prevention tips

Keep connectors clean and covered with dielectric grease. Replace cracked plugs.
Route wires away from sharp edges and moving parts. Protect the wiring harness with loom.
Inspect the flywheel key and mounting. A loose flywheel chews magnets and shreds output.
Test charging voltage a few times each season. That quick multimeter check spots problems early.
Don’t run with a known-bad regulator. You’ll risk stator overload and a double failure.

Costs, parts, and whether to DIY or hire a pro

I always set expectations upfront because stator replacement isn’t pocket change.

Stator replacement cost outboard ranges widely. Small to mid-size engines often need $150 to $400 for parts. Large outboards can run $300 to $800 or more especially for OEM parts.
Labor runs 2 to 4 hours at many marine shops. Hourly rates vary. Total cost often lands between $400 and $1400 depending on accessibility and brand.
OEM vs aftermarket: OEM parts usually fit perfectly and carry better reliability. Aftermarket can be 30 to 50 percent cheaper. Quality varies. I use OEM on mission-critical boats and reputable aftermarket on budget builds.
DIY outboard stator replacement works for patient tinkerers with a flywheel puller and a torque wrench. Follow the manual. Don’t nick the crankshaft. Mark timing components.
If you prefer professional help search for a reputable shop. A seasoned tech can run marine electrical diagnostics quickly then confirm the root cause before replacing anything.

Maintenance tips that actually help

These simple habits keep the outboard charging system healthy and stretch the lifespan of an outboard stator.

Battery health first: Keep your battery charged with a smart maintainer. Marine battery charging best practices pay off during short trips and long storage.
Clean connections: Check grounds and battery posts. Shine them up. Tighten them properly.
Corrosion control: Salt spray happens. Rinse the powerhead gently. Avoid blasting connectors with high pressure. Dry everything. Use dielectric grease.
Airflow and heat: Make sure cowl vents are clear. Heat kills windings faster than most things.
Load management: Don’t overload a small stator with big stereo amps or extra lights without verifying output. What affects stator output isn’t just rpm. It’s also how much current you ask it to deliver.
Routine checks: Take a reading at the battery at idle and at a fast idle. Look for about 13.8 to 14.6 volts. Anything much lower after a minute off idle hints at trouble. Anything much higher risks boiling the battery.

Quick answers to common questions

How does an outboard engine work electrically?

The flywheel magnets pass the stator and generate AC. The rectifier/regulator turns that into DC for charging and accessories. The ignition side uses dedicated stator coils to power the CDI or ECU then the ignition coils fire the spark plugs at the right time.

Where is the stator located on an outboard?

Under the flywheel near the top of the engine on the crankshaft. You must pull the flywheel to see it and to replace it.

What powers the spark plugs on an outboard?

The stator’s exciter or source coil powers the CDI. The CDI charges a capacitor and releases it into the ignition coil which steps up voltage to fire the plugs.

What is the role of the flywheel with the stator?

It carries permanent magnets. As those magnets sweep past the stator coils they create the magnetic field changes that generate AC. That’s magnetic field generation outboard style.

Alternator vs stator outboard. Which do I have?

Most small to mid-size outboards use a stator under the flywheel. Some big models use a belt-driven alternator. Many modern engines still use a stator but with higher output to support fuel injection and more electronics.

What does a rectifier do on an outboard and why add a regulator?

The rectifier converts AC to DC for the battery. The regulator holds voltage steady to protect the battery and electronics. Together they’re often one unit called the rectifier/regulator.

How to know if your stator is failing?

Watch for symptoms of a failing charging system. Battery not charging. Intermittent spark. Dim lights at idle that brighten with rpm then flicker. Overheated regulator. A meter test confirms weak AC output or wrong resistance on the coils.

Can a bad stator cause the engine to die at idle?

Yes. A weak exciter coil can lose output at low rpm. The spark weakens and the engine stalls. That’s one reason an outboard motor dies at idle then runs again at higher rpm.

What is a high voltage stator outboard?

It’s a design with windings and magnets tuned to deliver higher AC voltage for ignition or charging. Don’t assume higher is better. It must match the rectifier/regulator and ignition design.

Can I run the motor with a bad stator?

You can limp a short time if only part of the charging system is weak and the battery has charge. If the ignition side fails the engine won’t run. Don’t push your luck on the water.

How long does a stator last?

I’ve seen 8 to 15 years commonly. Usage and heat matter. Saltwater accelerates wear. Good maintenance extends life.

What causes a stator to go bad?

Heat, corrosion, vibration, overload from a bad regulator, and age. Manufacturing defects are possible but less common.

Does the stator power fuel injection?

Yes on many EFI engines the stator feeds the ECU through the rectifier/regulator which then powers injectors, sensors, and the fuel pump relay. That’s what electrical energy an outboard needs beyond ignition.

Can I find a Honda outboard charging system diagram or brand-specific specs?

Absolutely in the official service manual for your exact model. The same goes for Yamaha, Mercury, Evinrude, Suzuki, Johnson, and Tohatsu. Don’t guess on wire colors or ohm values.

Troubleshooting intermittent spark. Where do I start?

Warm the engine and test again. Heat-related failures reveal themselves hot. Check pulser coil spacing and connections. Check the exciter coil output with a DVA. Inspect flywheel magnets. Look for cracked or missing magnets.

What supplies power to the CDI?

The stator’s exciter or source coil. Without it the CDI cannot charge its internal capacitor and you get no spark.

How does an outboard charge its battery while trolling slow?

Output at low rpm can be modest. Some engines need a bit more rpm to get above 13.8 volts. Add a smart onboard charger at the dock if you troll often and run many accessories.

Is there a difference between older two-strokes and newer four-strokes?

Older two-strokes lean on CDI and stator-based ignition heavily. Newer four-strokes use ECUs with more sensors and may demand higher stator output to feed electronics. The basic stator job stays the same.

What’s the consequence of a bad stator?

You risk getting stranded. The battery stops charging and the engine may not start. You can lose navigation lights and the bilge pump if the battery drains. The rectifier/regulator can fail from overload which adds to the bill.

How to protect outboard electricals long-term?

Keep it clean and dry. Rinse gently. Grease connectors. Test voltage a few times each season. Replace weak batteries early. Don’t hack the wiring harness.

Real-world case snapshot from my notebook

90 HP two-stroke. Complaint: battery not charging. Test: 12.4 V at idle and 12.3 V at 2000 rpm. AC from stator charging leads looked healthy. Verdict: failed regulator. Replaced the rectifier/regulator. Battery now at 14.2 V at 2000 rpm.
70 HP four-stroke. Complaint: intermittent no start hot. Test: spark strong cold then vanishes hot. DVA on exciter coil dropped far below spec when hot. Replaced stator and set pulser coil gap. Problem solved.
25 HP tiller. Complaint: dim lights and fish finder brownouts. Test: charging AC low across rpm range. Found two cracked flywheel magnets. Replaced flywheel and inspected stator windings. Output returned to normal.

Troubleshooting guide outboard electrical: my simple flow

Battery test first. Replace if weak.
Inspect connectors and grounds. Fix any corrosion.
Check at-battery voltage running. If you don’t see 13.8 to 14.6 volts off idle test AC from stator to the rectifier/regulator.
If AC looks good replace the rectifier/regulator.
If AC looks low or erratic check stator resistance and inspect under the flywheel.
For no-spark issues measure exciter coil output with a DVA and verify pulser/timing coil readings. Check ignition components like the CDI and ignition coils only after stator checks.

Understanding outboard motor electricity in one picture

You have two paths carved from the same generator.

Ignition path: stator exciter/source coil -> CDI/ECU -> ignition coils -> spark plugs.
Charging path: stator charging coils -> rectifier/regulator -> battery -> accessories.

Power generation in outboard motors starts at the stator. Everything else depends on it.

Brand-specific quirks you should know

Yamaha outboard stator problems often show up as heat-related failures on older models that troll long hours.
Mercury outboard stator issues sometimes pair with a cooked regulator after battery disconnections under load. Don’t pull battery cables with the engine running.
Evinrude outboard stator replacement jobs frequently include checking flywheel magnets for cracks. Old adhesives let go.
Honda Marine and Suzuki Marine four-strokes lean on stable charging for fuel injection. Weak stator output can trigger mysterious ECU behavior.

Stator and voltage regulation go hand in hand. One weak component stresses the other.

What I watch during inspection

Winding color. Burnt or darkened coils hint at overheating.
Magnet condition. Missing or cracked magnets kill output. Loose magnets can destroy the stator in seconds.
Gasket and seal integrity near the top cover. Water intrusion leads to corrosion.
Wiring harness strain relief. No tight bends near the stator leads.

Best practices for outboard electrical maintenance

Keep a spare rectifier/regulator on boats that run at night or offshore. It’s a small part with big consequences.
Label connectors when you pull them. Snap photos before you start.
Use a proper flywheel puller. Don’t pry on the ring gear with a screwdriver.
Torque the flywheel nut to spec. A loose flywheel ruins magnets and timing.
After any repair run a full test. Idle, fast idle, and a brief high-rpm burst on the hose or in the water. Confirm the typical operating voltage of an outboard charger range at the battery.

What I’ve learned about stator output and performance

Understanding stator current and voltage helps you choose accessories wisely. A small 25 to 40 HP outboard may deliver only a handful of amps at idle. Add LED navigation lights and a fish finder and you’re fine. Stack multiple pumps and bright halogen lights and you’ll drain the battery at idle. At cruise the system catches up. At idle it may fall behind. That’s not a bad stator by itself. That’s a mismatch between load and output.

If you need more accessory power consider:

LED upgrades to cut draw.
A higher-capacity house battery.
Reducing loads at idle.
Confirming your engine’s published alternator or stator output so you don’t exceed it.

How to prolong stator life

Avoid long high-heat idling under a closed cowl on scorching days.
Keep the flywheel and stator area clean. Dirt insulates and holds heat.
Replace the rectifier/regulator at the first sign of overvoltage or undervoltage. Don’t let it take the stator with it.
Keep the battery in good shape. A failing battery makes the regulator work harder which can feed trouble back to the stator.

Putting it all together

Here’s the full stator winding explanation in plain English. The stator is a ring of coils on an iron core. The flywheel supplies the moving magnetic field. Together they generate AC for ignition and charging. The rectifier/regulator turns AC into steady DC for the battery and accessories. The CDI uses dedicated stator coils to build spark energy and time its release through the ignition coil. If any piece in that chain fails you’ll see either a no-spark condition or a no-charge condition. That’s why understanding marine electrical systems makes troubleshooting faster and less frustrating.

Conclusion

I’ve chased more than a few electrical gremlins on the water. The stator sits at the center of most outboard ignition components and the outboard motor charging system. Keep it cool and clean. Test it with a plan. Respect the rectifier/regulator because it lives and dies with the stator. If your engine won’t start or your battery won’t charge you now know where to look and what to test. You don’t need to be an electrical engineer to follow the inductive coil stator principle or to read a meter. You just need patience and a method. Do that and your stator won’t feel like a mystery anymore. It’ll feel like what it really is. The unsung hero that keeps your boat lit up and running strong.
