Transformer Laminations: Buyer’s FAQs & Quick Answers for Optimal Performance

Of course, here is the comprehensive, long-form article based on your instructions.

Table of Contents

• FAQ 1: What exactly are transformer laminations?
• FAQ 2: Why are laminations essential for transformer efficiency?

• FAQ 3: What types of lamination materials are available, and which is right for my application?
• FAQ 4: How does lamination thickness impact transformer performance?

• FAQ 5: What are “core losses,” and how do laminations minimize them?
• FAQ 6: What common lamination shapes/geometries are used?
• FAQ 7: How do I specify the right laminations for my transformer design?
• FAQ 8: What role does insulation play in laminations?

• FAQ 9: What are the key quality considerations when purchasing laminations?
• FAQ 10: How do cost and performance trade-offs work with different laminations?
• FAQ 11: Are custom laminations available, and when are they necessary?
• FAQ 12: What are typical lead times and Minimum Order Quantities (MOQ) for laminations?
• FAQ 13: What certifications or standards should I look for?
• FAQ 14: How can I ensure compatibility with my winding and assembly process?

• FAQ 15: What are the environmental considerations for transformer laminations?

Introduction: Why Transformer Laminations Matter for Your Bottom Line

I’ve been in the world of electrical engineering and component sourcing for over a decade and if there’s one component that’s consistently underestimated, it’s the transformer lamination. People see the windings, the enclosure, the terminals—but the heart of any efficient transformer is its core. And that core is made of laminations.

It’s easy to think of them as just a stack of metal. But I’ve learned—sometimes the hard way—that choosing the right laminations is the difference between a project that sings and one that drains money through inefficiency. The wrong choice can lead to overheating, excess noise, and a transformer that wastes energy every second it’s plugged in. That wasted energy is your or your customer’s money, literally disappearing into thin air as heat.

So, I decided to put together this guide. It’s a collection of the most common questions I hear from buyers, engineers, and project managers. My goal is to give you quick, straightforward answers so you can make smarter decisions, avoid common pitfalls, and understand exactly what you’re buying. Let’s dive in.

Understanding the Basics: What Laminations Do

Before we get into the nitty-gritty of materials and specs, let’s cover the fundamentals. It’s the foundation for everything else.

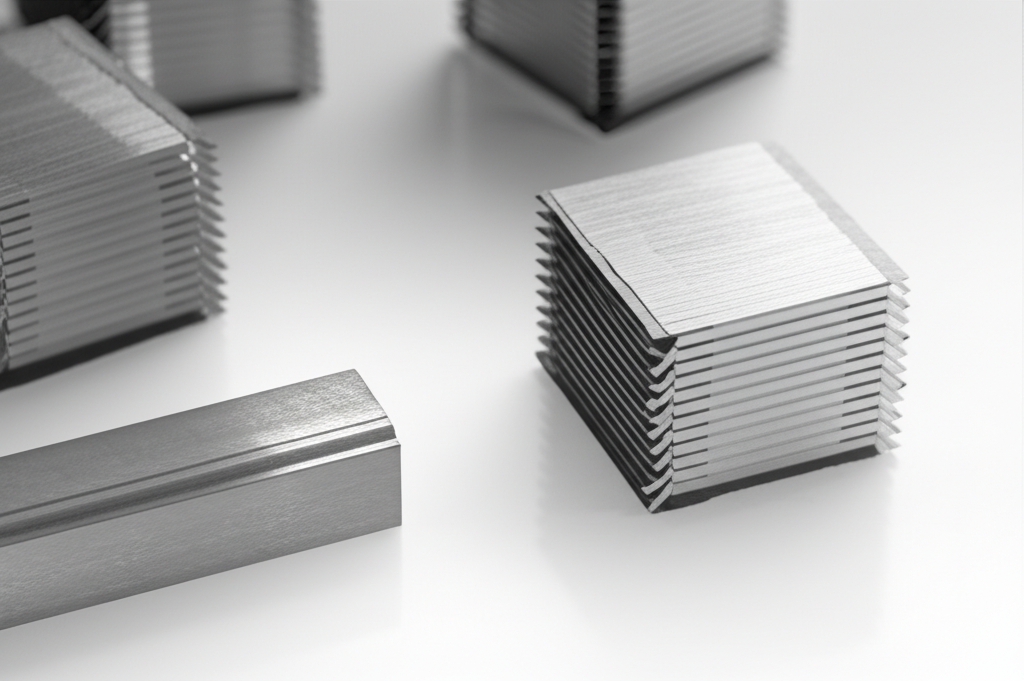

FAQ 1: What exactly are transformer laminations?

At its simplest, a transformer lamination is a thin sheet of specialized electrical steel. Think of it like a single piece of paper in a very heavy book. We stack hundreds or thousands of these thin sheets together to create the core of a transformer. The copper windings are then wrapped around this core.

Their primary job is to create a clear, easy path for the magnetic flux to travel. A good core concentrates and directs this magnetic field from the primary winding to the secondary winding, which is how a transformer actually transforms voltage. The transformer lamination core is truly the backbone of the entire device. Without an effective core, the magnetic field would scatter, and the transformer would be incredibly inefficient.

But why thin sheets? Why not just use a solid block of steel? That brings us to the next, crucial question.

FAQ 2: Why are laminations essential for transformer efficiency?

The answer boils down to fighting against an invisible enemy called “eddy currents.”

When a magnetic field changes within a conductor (like a steel core), it creates small, swirling currents of electricity inside the material itself. These are eddy currents. Imagine stirring a big pot of water—you get little whirlpools and eddies. It’s a similar idea but with electricity.

These currents don’t do any useful work. All they do is generate heat, which is pure energy loss. A solid steel core would be a massive playground for these eddy currents, getting hot and wasting a ton of energy. It would be like trying to run through a swimming pool—you’d waste a lot of energy just fighting the resistance of the water.

By slicing the core into thin, electrically insulated sheets (laminations), we break up the path for these swirling currents. They can’t form large, wasteful whirlpools anymore. Instead, they are confined to tiny, insignificant eddies within each lamination. This dramatically reduces what we call eddy current losses and makes the transformer vastly more efficient. It’s like running through the air instead of water—so much easier. This core loss reduction is the number one reason we use laminations.

Material Choices & Performance

Okay, now that you know what laminations do, let’s talk about what they’re made of. This is where your first big decisions as a buyer come into play because the material choice directly impacts performance, cost, and suitability for your application.

FAQ 3: What types of lamination materials are available, and which is right for my application?

In my experience, 95% of applications will fall into one of three material categories. Choosing the right one is about balancing your performance needs with your budget.

1. Grain-Oriented Electrical Steel (GOES)

Think of GOES as a specialist. This steel is cold-rolled and annealed in a way that aligns the “grains” of the metal crystals in one direction. This gives it incredibly high magnetic permeability and very low core loss in that specific direction.

• Characteristics: Amazing performance along the grain, like a perfectly paved one-way street for magnetic flux.
• Best for: Power and distribution transformers. Basically, any application where you know the magnetic flux will be flowing in a consistent, predictable loop. This is your go-to for standard 50/60 Hz power applications. When you need top-tier performance for grid applications, a crgo lamination core is almost always the right call.
• Trade-off: It’s more expensive than its non-oriented cousin and its fantastic properties only work in one direction.

2. Non-Grain-Oriented Electrical Steel (NGOES)

If GOES is a specialist, NGOES is the versatile generalist. The crystal grains in this steel are randomly oriented, which means its magnetic properties are uniform in all directions (this is called being isotropic).

• Characteristics: Good, reliable magnetic properties in any direction. It’s a workhorse material.
• Best for: Applications where the magnetic flux doesn’t follow a single, neat path. Think of electric motors, generators, and smaller transformers or chokes. A crngo lamination is perfect when you need dependable performance without the specialized (and costly) properties of GOES.
• Trade-off: It has higher core losses and lower permeability compared to GOES, but it’s more affordable and versatile.

3. Amorphous Metals

This is the new kid on the block, relatively speaking. Amorphous metal isn’t crystalline like steel; it has a random, glass-like atomic structure. This unique structure gives it astonishingly low hysteresis losses.

• Characteristics: Ultra-low core loss, often 60-70% lower than traditional silicon steel. They are also very, very thin.
• Best for: High-efficiency distribution transformers, high-frequency applications like switched-mode power supplies (SMPS), and renewable energy systems where every watt of saved energy counts.
• Trade-off: The upfront material cost is significantly higher. The material is also more brittle, which means it requires careful handling during core assembly. I’ve seen teams struggle with it at first, but the long-term energy savings can be massive, making the initial investment worthwhile for the right project.

FAQ 4: How does lamination thickness impact transformer performance?

This is a fantastic question because it highlights a key engineering trade-off.

The simple rule is this: thinner laminations reduce eddy current losses.

As you make the laminations thinner, you make it even harder for those wasteful eddy currents to form. This is especially critical in high-frequency applications. At 50 or 60 Hz, a standard thickness like 0.35mm might be fine. But if you’re designing an SMPS that operates at tens of thousands of Hertz, you’ll need much thinner materials, sometimes as thin as 0.1mm or even less, to keep losses under control.

So why not just use the thinnest possible laminations for everything?

• Cost: Thinner material is harder to produce, handle, and stack, which increases manufacturing complexity and cost.
• Stacking Factor: Every lamination has a thin layer of insulation. The more laminations you stack to achieve a certain core thickness, the more insulation you have in the stack. This means less “active” steel in the same volume. This is called the stacking factor, and it’s lower for thinner laminations. For example, a core of 0.23mm GOES might have a stacking factor of 0.97 (97% steel), while an amorphous core might be closer to 0.90.

Your job is to find the sweet spot between efficiency gains and manufacturing cost for your specific operating frequency.

Technical Specifications & Design Considerations

Alright, let’s get a bit more technical. When you’re looking at data sheets or talking to a supplier, a few key terms will pop up again and again. Understanding them is crucial for specifying the right part.

FAQ 5: What are “core losses,” and how do laminations minimize them?

I mentioned core loss before, but let’s break it down. Core loss is the total energy wasted as heat within the transformer core. It’s measured in Watts per kilogram (W/kg). It’s made of two main components:

The material’s properties—like the silicon content in electrical steel and the grain structure in GOES—are specifically engineered to reduce this “magnetic friction” and lower hysteresis losses. Amorphous metals excel here because their non-crystalline structure makes it much easier for the magnetic domains to flip.

FAQ 6: What common lamination shapes/geometries are used?

The shape of the laminations determines the shape of the final core. The most common ones you’ll encounter are:

• E&I Laminations: These are the classic, most common shapes. You stack a bunch of E-shaped pieces and close the magnetic circuit with an I-shaped piece. They are cheap to manufacture and easy to assemble with a pre-wound bobbin. For many general-purpose applications, an ei core is the most practical and cost-effective choice.
• C-Cores: These are made by winding a continuous strip of GOES or amorphous material, bonding it into a solid shape, and then cutting it in half to form two “C” shapes. This provides an excellent magnetic path with very low losses. You place the windings on, then band the two halves back together.
• Toroidal Cores: These are donut-shaped cores made from a continuous strip of wound steel. They are fantastic because they have no air gaps and the magnetic flux path is completely contained. This results in very high efficiency and very low stray magnetic fields (EMI). The downside is that winding the copper wire through the “donut hole” is a more complex and expensive process.

FAQ 7: How do I specify the right laminations for my transformer design?

When you talk to a supplier, you can’t just say “I need some laminations.” You need to come prepared. Here’s a checklist of key parameters I always have ready:

• Material Grade: M6, M19, 23ZDH85? Be specific.
• Thickness: 0.23mm, 0.35mm, 0.50mm?
• Core Loss Target: What is the maximum W/kg you can accept?
• Operating Frequency: Is it 60 Hz, 400 Hz, or 50 kHz? This is critical.
• Flux Density: How hard will you be driving the core (measured in Tesla)?
• Dimensions: The physical size and shape you need (E&I, Toroidal, etc.).
• Power Rating: What is the kVA rating of the final transformer?

Having this information ready will make the conversation with your supplier ten times more productive. Always ask for the technical data sheets for the material they propose.

FAQ 8: What role does insulation play in laminations?

The insulation is the unsung hero. It’s an incredibly thin coating—often just a few micrometers thick—applied to each lamination. Its only job is to prevent electrical contact between adjacent sheets.

Without this insulation, your beautiful stack of laminations would just act like a solid block of steel, and those nasty eddy currents would come roaring back.

There are different types of coatings, often designated by codes like C3 (organic), C5 (inorganic, for stress relief annealing), and C6. The choice depends on the operating temperature, whether the core needs to be annealed after stamping, and the voltage stress it will see. A good coating ensures high dielectric strength and won’t degrade over the life of the transformer.

Quality, Procurement & Cost

This is where the rubber meets the road. A great design on paper can be ruined by poor quality components or a misunderstanding of the procurement process.

FAQ 9: What are the key quality considerations when purchasing laminations?

I learned this one from a project where we had terrible acoustic noise issues. It turned out our supplier was delivering laminations with tiny, almost invisible burrs on the edges from a dull stamping die. These burrs were piercing the insulation and creating shorts between layers.

Here’s what I now check for religiously:

• Burr-Free Edges: Sharp, clean edges are non-negotiable.
• Dimensional Accuracy: The laminations must stack perfectly. Inconsistent dimensions can create gaps, reducing performance.
• Uniform Coating: The insulation must be consistent across the entire surface.
• Material Consistency: The magnetic properties should be the same from the first batch to the last.

Always ask a potential supplier about their quality control process. Do they do magnetic testing? Dimensional checks? A reputable supplier will be proud to show you their certifications (like ISO 9001) and material test reports.

FAQ 10: How do cost and performance trade-offs work with different laminations?

It’s tempting to just pick the cheapest option. But that’s often a huge mistake. You have to think about the lifecycle cost, not just the upfront purchase price.

I once worked with a client who insisted on using a cheaper grade of NGOES for a distribution transformer to save a few hundred dollars. I ran the numbers and showed them that the higher core losses of that material would cost them over a thousand dollars in wasted electricity over the transformer’s 20-year lifespan. We switched to a slightly more expensive but much more efficient GOES material.

The initial cost of high-performance GOES or amorphous laminations is higher. No doubt. But the long-term energy savings can pay back that initial investment many times over, especially for a transformer that will be energized 24/7 for years.

FAQ 11: Are custom laminations available, and when are they necessary?

Yes, absolutely. You’re not always stuck with standard E&I sizes.

You might need custom laminations if you have very specific space constraints or if you’re trying to optimize performance for a unique application. By designing a custom core geometry, you can sometimes reduce the overall volume and weight of the transformer while hitting your performance targets.

The main consideration is tooling costs. Creating a new stamping die is a significant upfront investment. This only makes sense if you have a high-volume production run that will justify the cost of the custom tool. For prototyping or small runs, it’s usually better to stick with standard sizes.

FAQ 12: What are typical lead times and Minimum Order Quantities (MOQ) for laminations?

This varies wildly between suppliers and materials. Standard, common E&I laminations made from standard steel grades might have short lead times and low MOQs.

However, if you need a high-grade, thin-gauge GOES or an amorphous material, the lead times can be much longer. The raw material itself might not be readily available. Custom laminations will have the longest lead time due to the need for tool manufacturing.

My best advice is to talk to suppliers early in your design process. Get a feel for material availability and plan your project timeline accordingly. Don’t finalize your design and then find out the core you need has a 20-week lead time.

FAQ 13: What certifications or standards should I look for?

Looking for standards is a great way to filter for quality suppliers. Key ones include:

• ISO 9001: This shows they have a robust quality management system in place.
• Material Standards (IEC 60404, ASTM A876): These international standards define the properties of electrical steels. A supplier should be able to certify that their material meets a specific grade under these standards.
• Environmental Compliance (RoHS, REACH): These are important if your product will be sold in Europe or other regions that restrict the use of hazardous substances.

FAQ 14: How can I ensure compatibility with my winding and assembly process?

This is a practical point that’s easy to overlook. The laminations need to work with your manufacturing line. Discuss dimensional tolerances with your supplier. Will their parts fit your winding bobbins? Is the surface finish suitable for your core stacking or bonding process?

A good supplier is a partner. They should be able to provide recommendations on handling and assembly to ensure you get the best performance from their product.

Future Trends & Environmental Impact

The world of transformers isn’t static. It’s evolving, driven by the global push for better energy efficiency.

FAQ 15: What are the environmental considerations for transformer laminations?

The biggest environmental impact of a transformer is its energy consumption over its lifetime. This is where lamination choice plays a huge role.

Governments worldwide are implementing stricter efficiency mandates, like the Department of Energy (DOE) standards in the US and the EU Ecodesign directive. These regulations are forcing manufacturers to use higher-grade, lower-loss lamination materials. Using amorphous cores or high-grade GOES isn’t just a performance choice anymore; it’s becoming a regulatory requirement.

By choosing a more efficient core, you are directly contributing to a lower carbon footprint. On top of that, electrical steel is highly recyclable, making it a sustainable choice from a materials perspective.

Conclusion: Making an Informed Lamination Purchase

Whew, that was a lot of ground to cover. But if you’ve made it this far, you’re already way ahead of the curve.

As you can see, choosing a transformer lamination isn’t just about picking a shape and size. It’s a critical decision that involves a careful balance of application needs, performance targets, lifecycle cost, and quality assurance.

To recap, here are the key factors I always consider:

Never be afraid to ask questions. A good supplier will welcome them. My hope is that this guide has armed you with the right questions to ask and the knowledge to understand the answers. By making an informed choice on the lamination core, you’re not just buying a component; you’re investing in the performance, efficiency, and reliability of your entire project.
