How to Test Stator Windings: A Comprehensive DIY Guide

Short summary: In this simple guide, I show you how to test stator windings with a multimeter and a megohmmeter. You learn continuity, resistance, and insulation tests for motors, generators, and alternators. I use clear steps, safe methods, and plain talk so you can fix problems fast.

Table of Contents

• Why test stator windings?
• What is a stator and how does it work?
• What tools do I need to test a stator?
• How do I stay safe before any test?
• How do I do a continuity test?
• How do I measure winding resistance?
• How do I test insulation with a Megger?
• What do my readings mean?
• How do I test a 3-phase motor stator?
• How do I check an alternator stator and regulator/rectifier?
• How do I test stators in small engines, bikes, outboards, and EVs?
• What advanced tests help with hidden faults?
• How do I prevent stator failures?
• When should I call a pro?
• FAQ (optional)
• Key points to remember
• References

Why test stator windings?

Problem: Your motor runs hot. Your generator will not start. Your battery will not charge. You suspect the stator. You feel stuck.

Agitate: If you ignore it the problem can grow. A short can burn a winding. A ground fault can trip breakers. Downtime can cost you money. It can stop your tools or your plant.

Solution: I will walk you through clear tests. You will learn continuity, resistance, and insulation checks. You will spot open circuits, short circuits, and ground faults. You will read your multimeter and your megger with confidence. You can decide to repair or replace the stator. You can move fast and safe.

I have done this for years in my shop. I work on motors, alternators, and generators. I follow the service manual and the specification sheet. I use simple tools and good habits. You can do it too.

What is a stator and how does it work?

A stator is the still part of an electric motor or generator. It holds the winding. The rotor spins inside it. The coil sits in the core. The core uses thin steel sheets called laminations. These reduce heat loss and boost efficiency. The quality of the stator core lamination matters. Good laminations lower loss at high RPM and cut vibration.

When you apply voltage the current flows through the coil. That makes a magnetic field. In an electric motor the rotor reacts and turns. In a generator the rotor turns first and the stator picks up voltage. In an alternator diodes and a rectifier change AC to DC. A regulator keeps voltage steady. You see this in cars, marine engines, HVAC systems, power tools, and industrial machinery.

Stators can fail. Heat can break insulation. Moisture can cause ground faults. Dirt can eat into the winding. Bearings can fail and shake the coil. A rotor can rub the core. Over time, resistance and insulation change. That is why you test.

What tools do I need to test a stator?

You do not need fancy gear to start. Here is my basic kit:

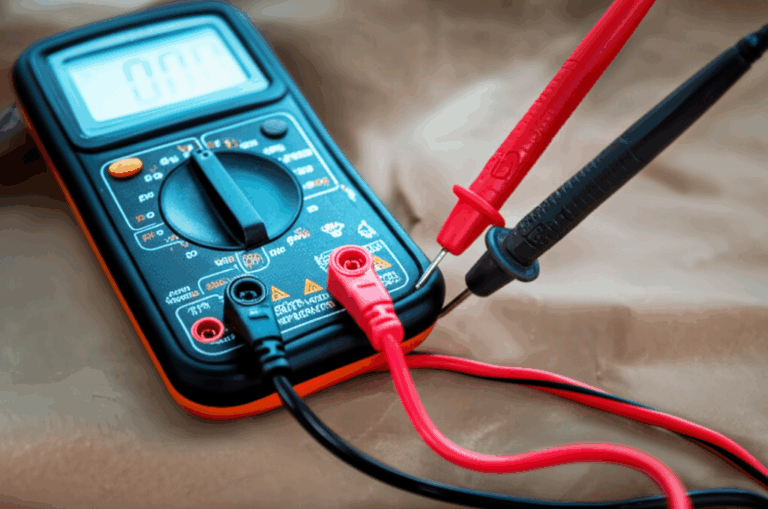

• Digital multimeter (DMM). I use it for continuity, ohms, and voltage. A digital multimeter gives clear numbers. An analog multimeter works too for simple checks.
• Megohmmeter (Megger). I use it for insulation resistance. It applies higher test voltage. It checks winding to ground and finds ground faults. It helps you judge dielectric strength.
• Test leads with good clips. Clean tips matter.
• Infrared camera. Optional. I use it for hot spots. It shows overheating in windings or bearings.
• PPE. Wear safety glasses and gloves. Follow electrical safety rules.

If you test many motors get your electrical tester calibrated. Test gear can drift. A proper calibration keeps your diagnostics accurate.

How do I stay safe before any test?

I follow four rules every time:

I also read the service manual. The manufacturer gives the specified stator resistance and test steps. Each motor or alternator can be different. Many list phase to phase resistance and acceptable resistance deviation, often ±5%. The manual helps you avoid mistakes.

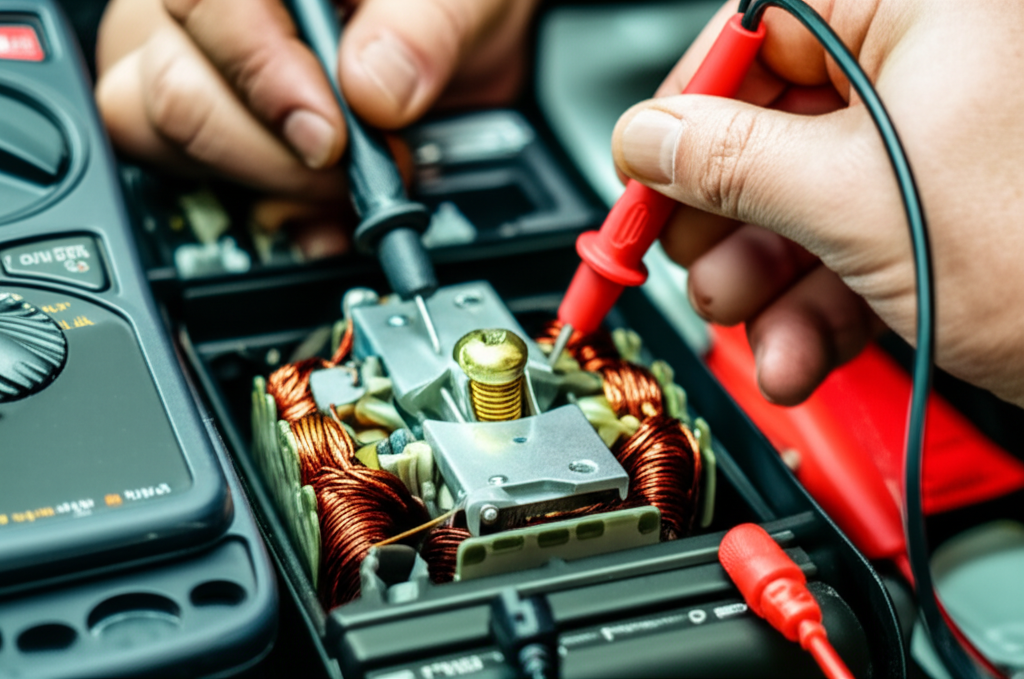

How do I do a continuity test?

This is Method 1. It checks for an open circuit. It tells you if the winding is broken.

• Set your multimeter to continuity mode or the lowest ohm range.
• Put one probe on each end of a single winding or each phase pair.
• Listen and look.

Expected result: The meter beeps or shows near 0 ohms. That means the path is unbroken.

Fault signs:

• “OL” or infinite resistance means an open circuit.
• A number much higher than specs can also mean damage.

People ask about “infinity” on a multimeter. On many meters “OL” means open line. It is like an endless fence. No path. That is not good for a winding that should be closed.

How do I measure winding resistance?

This is Method 2. It checks for shorts and imbalance. It also finds open circuits.

• Set the DMM to ohms.
• For 3-phase stators measure between U-V, V-W, and W-U. This is your phase to phase resistance test.
• For single-phase or a simple coil measure across the winding leads.

Expected result: Readings should be low and close to each other. Many times they should match within ±5% of the manufacturer specs.

Fault signs:

• Very low or zero ohms can mean a short circuit.
• Unequal readings can mean an inter-turn short or a phase imbalance.
• Very high or “OL” can mean an open circuit.

Interpreting resistance readings: Temperature affects copper. Hot windings show higher ohms. Some service manuals list a motor winding resistance chart. You can also use a winding resistance calculator to correct to 20°C. Ohm’s Law helps you think it through. If V = IR then a change in R with the same V will change current draw. That can trip fuses or heat the coil.

Causes of high stator resistance: Heat damage, bad connections, corrosion, poor solder joints. Causes of low stator resistance: Turn to turn faults, melted insulation, metal dust, or a direct short.

How do I test insulation with a Megger?

This is Method 3. It checks winding insulation to ground. It finds ground faults before they burn things up.

• Disconnect all winding leads from any circuit. Remove the rectifier, regulator, and any controller from the loop. You want only the winding.
• Clip one megger lead to a winding terminal.
• Clip the other megger lead to bare metal on the core or frame (ground).
• Set the test voltage. Many small motors use 500 V. Larger motors use 1000 V. Follow your equipment rating.
• Press test and read the resistance in megohms (MΩ).

Expected result: Very high resistance. Often several MΩ or “OL”. That means good insulation.

Fault signs: Low resistance. Under 1 MΩ is often a red flag for small low-voltage motors. Large motors have higher targets. Check industry standards and your spec sheet.

Interpreting megger readings: IEEE and NEMA suggest minimums based on voltage and size. NETA has guidance too. As a rule more is better. If the reading falls over time that is a warning. Moisture, dirt, or chemical contamination can lower insulation resistance fast. You can trend results as part of preventative maintenance.

What do my readings mean?

Here is a quick chart you can use at the bench.

If all readings look normal yet the motor runs hot or noisy then check the rotor, the bearing, the armature in DC machines, carbon brush condition, commutator surface in brushed motors, and the load. In AC motors look for voltage imbalance across phases. In alternators test the diodes and the rectifier. In all cases consult the service manual for your model.

How do I test a 3-phase motor stator?

I teach a simple plan.

• Visual inspection: Look for burnt stator winding signs, dark varnish, or melted insulation. Smell for burnt odor. Check the core lamination for rub marks.
• Continuity test: Check each phase pair. No “OL” inside a phase.
• Winding resistance test: Measure U-V, V-W, W-U. Values should match closely.
• Insulation resistance test: Each phase to ground with a megger.

If you see a phase imbalance you likely have inter-turn faults. Vibration can cause it. Thermal cycling can also cause it. Moisture can drop insulation. Fix the root cause or the failure will come back.

When I rebuild motors I also look at the iron. Poor laminations waste energy and raise heat. Good motor core laminations and matched rotor core lamination improve efficiency and cut losses. This helps the winding run cooler which extends insulation life.

How do I check an alternator stator and regulator/rectifier?

Car and marine alternators use a stator, a rotor, diodes, and a regulator. A weak stator can cause a battery not charging issue. Lights dim. The voltage drops under load.

Steps I use:

• No-load voltage test at the battery. Start the engine. Measure DC voltage. Expect about 13.8 to 14.4 V on many systems if the regulator works.
• Stator AC test. Disconnect the rectifier if the design allows it. Measure AC voltage between stator leads at a set RPM. Check the service manual for RPM and target voltage.
• Continuity and resistance test across stator windings. Compare with the manufacturer specification sheet.
• Insulation resistance test stator to ground with the megger if the alternator can be isolated.
• Diode test. Use the DMM diode mode to check the rectifier diodes.

If the alternator shows low AC output the stator may be shorted. If the diodes fail the battery can drain overnight. A burnt stator winding often shows dark varnish and a strong smell. If tests say the stator is fine then look at the regulator. In marine alternators also check for corrosion. Moisture and salt can reduce insulation resistance fast.

How do I test stators in small engines, bikes, outboards, and EVs?

Small engine stator diagnostics are similar. In motorcycles and outboard motor stator testing I see no spark or weak spark complaints. Many systems use a pickup coil and a charging coil. Sometimes the rectifier regulator fails and cooks the stator.

• For no spark stator test use continuity on the ignition coil windings. Then measure ohms against the manual.
• For weak spark stator test check for low output voltage from the stator at a set RPM.
• For charging issues check AC from the stator before the rectifier. Then check DC after the regulator.

In brushless DC (BLDC) motors used in e-bikes and EVs the stator sits still and the rotor has magnets. Test phase to phase resistance for balance. Test insulation to ground. The same rules apply. For EVs use caution and the correct PPE. High voltage demands strict electrical safety.

What advanced tests help with hidden faults?

Some faults hide. Inter-turn shorts can be tiny. They do not always change ohms much.

• Surge testing: A motor shop can pulse the winding and spot weak spots between turns. It is very good at finding inter-turn faults.
• Partial discharge tests: In high voltage gear this catches insulation problems early.
• Vibration analysis: Phase imbalance or bad bearings show up in a vibration signature.
• Thermal imaging: An infrared camera can show hot spots in coils and bad connections.
• Voltage drop test: Under load a poor connection shows a drop you can measure.

If your stator passes the basic tests yet the motor still runs hot then I look for imbalance in supply voltage, poor core material, or a rotor rub. High loss laminations and poor stack quality can make extra heat. High grade electrical steel laminations can cut core loss and improve motor efficiency.

How do I prevent stator failures?

I keep it simple. Predictive maintenance and preventative maintenance save time and money.

• Keep it clean and dry. Moisture and dirt attack insulation. Effects of moisture on stator windings are severe. Wipe dust. Seal enclosures.
• Watch temperature. Every 10°C above rating can cut insulation life by about half. Use thermal imaging to spot hot spots. Ensure cooling fans work.
• Check bearings. Bad bearings raise vibration. That leads to inter-turn shorts. Replace noisy bearings fast.
• Inspect connections. Loose lugs raise heat and cause voltage imbalance.
• Trend insulation resistance. Use the megger and record values. A steady drop signals trouble ahead.
• Stick to the spec. Follow the service manual. Use the right test voltage. Respect dielectric strength.
• Calibrate test gear. Megger and DMM calibration keeps your readings true.

When I upgrade or rebuild I use good iron. Quality stator core lamination built from silicon steel helps a lot. For transformers I pick the right EI core or UI lamination core. For motors I use CRGO or CRNGO steel as the design calls for it. A strong core protects the winding because it runs cooler and stays stable at speed.

When should I call a pro?

Call a pro when:

• The motor is large or high voltage. Work with a qualified shop.
• Basic tests are not conclusive. You need surge testing or specialized diagnostics.
• The stator shows a ground fault and drying or cleaning did not help.
• You do not feel safe. Safety comes first.

A trusted shop can test to IEEE and NETA standards. They can also rewind and replace laminations if needed. If you need help sourcing core lamination stacks or a BLDC stator core reach out to a specialist who builds to spec. They can match your dimensions and slot count.

FAQ

Q: What is a good stator reading?

A: For many small motors phase to phase ohms are low and nearly equal. Insulation to ground should be very high. Use your manufacturer specs for exact numbers.

Q: What does zero resistance mean?

A: Zero or near zero can mean a short circuit if you measure across a coil. That is not good unless the spec says it should be very low.

Q: What does “OL” mean on my meter?

A: It stands for open line. That means the meter sees no path. In a continuity test that points to an open circuit.

Q: How often should I test a stator?

A: During routine stator maintenance on critical gear I test quarterly or at each planned outage. In lighter duty gear I test yearly.

Q: Can I test a stator without removing it?

A: Yes. You can do many checks in place. Just isolate the windings from the circuit. Always remove power first.

Company insight and how we help

Here is where I switch from problem to solution. A weak stator winding often starts with a weak core. Poor steel. Loose stacks. Bad edges that nick insulation. Problem.

You try to rewind or replace the stator yet the motor still runs hot. The core keeps wasting energy. Agitate.

So we spec strong laminations and tight stacks. We source precise slots and clean edges. We match rotor and stator sets for balance. We can guide you to the right grade and thickness for your speed and voltage. High quality laminations reduce losses. They cut heat. They help prevent winding insulation breakdown. If you want a partner for stator and rotor cores look at reliable makers of motor iron. They build stacks that help your windings live longer and work better.

Detailed checklists you can use today

Pre-test checklist:

• Visual inspection stator windings
• Look for contamination impact on windings
• Note overheating motor stator signs
• Verify electrical safety and PPE
• Lockout/Tagout
• Discharge capacitors
• Identify motor type: induction motor, synchronous motor, BLDC motor, DC motor
• Get service manual and specification sheet

DMM checklist:

• Set to continuity test stator windings
• Do open circuit stator test
• Do short circuit winding test
• Measure stator resistance test values
• Phase to phase resistance test on 3-phase motor stator
• Compare to acceptable resistance deviation
• Record results for motor diagnostic tools log

Megger checklist:

• Disconnect regulator and rectifier
• Set test voltage as per motor winding testing standards
• Do insulation resistance test stator to ground
• Interpret megger readings vs IEEE/NEMA/NETA guidance
• Watch for winding to ground test failures

System checklist:

• For alternator: test stator voltage output test and rectifier regulator stator
• For generator: generator stator winding test
• For HVAC motor: HVAC motor stator test
• For marine alternator: marine alternator stator test
• For small engine: small appliance motor stator and motorcycle stator troubleshooting
• For EVs: stator testing for EVs with proper PPE

Root cause checklist:

• Check phase imbalance in stator windings
• Check motor starting issues
• Check battery not charging stator cases
• Check low power output stator
• Check vibration analysis for stators
• Use thermal imaging for hot spots
• Consider effects of moisture on stator windings
• Consider contamination and cleaning

Decision checklist:

• Compare repair vs replace stator
• Find professional stator testing services if needed
• Plan predictive maintenance for stators
• Schedule routine stator maintenance
• Consider advanced stator testing techniques like surge testing
• Check stator test equipment calibration

Laying the groundwork: better iron, better windings

I see this again and again. Better iron makes better motors. When you build or rebuild you want consistent laminations and tight stacks. Good slots protect magnet wire from nicks. Even pressure reduces hum and heat. If you spec BLDC motors look for accurate tooth shapes and back iron thickness. If you build induction or synchronous motors pick the right steel grade for loss and frequency.

If you need help with stator and rotor stacks explore trusted sources. You can find matched laminations and precision stamping. For a deep dive into what makes a strong stack and why it matters see these resources:

• Learn about high quality stator core lamination
• Explore custom motor core laminations
• Match your rotor core lamination for balance and efficiency
• Understand premium electrical steel laminations

Good steel comes in types like silicon steel laminations, CRGO lamination core, and CRNGO lamination. Each grade has its place. Transformers use EI core and UI lamination core designs. Motors use different stacks. Pick the right one for your job.

Key points to remember

• Always disconnect power and use PPE before you test.
• Start with a visual inspection then do continuity, resistance, and insulation tests.
• Continuity checks find open circuits. Resistance checks find shorts and imbalances. Megger tests find ground faults.
• Compare readings to the service manual and the spec sheet. Temperature matters.
• If all tests pass look at the rotor, bearings, rectifier, regulator, and wiring.
• Keep the stator clean and dry. Heat and moisture kill insulation.
• Trend values over time. Preventative maintenance and predictive maintenance pay off.
• Use good laminations and tight stacks. Strong core materials cut losses and help windings last.

References

• IEEE Std 43: IEEE Recommended Practice for Testing Insulation Resistance of Rotating Machinery.
• NEMA MG 1: Motors and Generators, National Electrical Manufacturers Association.
• NETA Maintenance Testing Specifications (MTS) for Electrical Power Equipment.
• U.S. Department of Energy, Motor Systems Management resources on maintenance and ROI.
• Plant Engineering magazine articles on motor testing and reliability.
• EPRI reports on motor reliability and common electrical failures.
