How to Test a Car Starter Motor: A Complete DIY Diagnostic Guide

Table of Contents

• Introduction: Why your car will not start
• What does a starter motor do?
• How do you tell starter vs battery vs alternator?
• What should you check first?
• What tools and safety gear do you need?
• How do you test the starter on the car?
• How do you bench test the starter off the car?
• How do you read your test results?
• What should you fix next?
• Do weather and wear change the test?
• Does motor build quality matter?
• Real-world examples
• Key stats and costs
• FAQs
• Summary: What to remember

You turn the key. Nothing. Maybe a click. Maybe a slow crank. You feel stuck. I get it. I have been there in a cold driveway with a car that will not start. In this guide I show you how to test a starter motor the right way. You will see simple steps. You will learn what the sounds and readings mean. You will avoid buying parts you do not need. This is worth your time because a clear test can save you money and stress.

Problem. Your car will not start. You hear a click or you hear grinding. You see dim lights. You are late for work and you fear a big bill.

Agitate. You could guess. You could swap a battery or order a new starter. You could waste time and cash. You could get stranded again if you miss the real cause.

Solution. Use this easy step-by-step plan. Test fast. Find the fault. Fix it smart. Keep more cash in your pocket. Get back on the road with confidence.

Introduction: Why your car will not start

A car needs three things to crank. It needs a good car battery. It needs clean battery terminals and strong cables. It needs a healthy starter motor with a working solenoid and a solid ground connection to the engine block. When any of these fail you get a “no start.” You might hear a “car won’t start click.” You might get “no sound when turning key.” I will help you sort it out.

I use plain words. I show you each starter motor diagnostic step. I explain the parts like the B terminal, S terminal, and M terminal on the solenoid. I show how to do a voltage drop test. You will know if you face a bad starter vs bad battery. You will learn if a starter relay or ignition switch or neutral safety switch is the real problem.

What does a starter motor do?

The starter motor spins the crankshaft so the engine can fire. The solenoid pulls in a Bendix drive and pushes the starter drive gear into the flywheel. The motor turns the armature. The brushes ride on the commutator to feed voltage and amperage into the windings. The engine control unit (ECU) may also allow or block a start if an immobilizer system is set.

If all parts work you hear a strong crank. The engine turns over and lights up. If parts fail you may hear a grinding noise starter or the starter spins but doesn’t engage. You may smell a burning smell starter. You may see smoke from starter motor. Those are big red flags.

How do you tell starter vs battery vs alternator?

You can sort it out with a few checks.

• Battery first. A weak battery gives slow engine cranking and dim dashboard lights no start. You can see corroded battery terminals and white crust. Do a voltage test and a load test car battery.
• Alternator next. A bad alternator often causes a dead battery. Check alternator vs starter diagnosis after you start the car or with a charger and a meter. Look at alternator output.
• Starter last. If the battery is good and the alternator charges well you test the starter motor circuit. Listen for intermittent starter problems. Find common starter issues like worn brushes or a bad solenoid.

Tip. Many “no-start” problems are battery or cable issues. Don’t replace a good starter.

What should you check first?

Start with a quick pre-test checklist. This saves time. It prevents misdiagnosis.

• Battery health check
• Visual check. Clean corroded battery terminals with a wire brush. Make sure lugs are tight. Use a bit of dielectric grease after you clean.
• Voltage. Use a multimeter. A full battery reads about 12.6V. Anything below 12.4V means weak. Charge it with a battery charger if needed.
• Load test. Use a load tester (battery). Watch voltage under load. If it dives fast the battery is bad.
• Fuses and relays
• Find the fuse box. Check the starter fuse for continuity with a meter. Replace if blown.
• Find the starter relay location. Swap with a known good relay. Or test coil and contact with a meter.
• Switches
• Ignition switch test no start. When you turn to START the S wire should see 12V.
• Neutral safety switch test on an automatic. Try to start in Neutral. If it starts in Neutral not Park the switch may be off.
• Clutch safety switch test on a manual. Press the clutch. Test the switch for continuity.
• Grounds and cables
• Check the engine block ground strap. Make sure it is clean and tight.
• Do a continuity test starter cable if you suspect a break.
• Look for damage in the wiring harness and electrical connectors.

These fast checks rule out a lot. They also set you up for the next steps.

What tools and safety gear do you need?

You do not need fancy gear. A few solid tools will do.

• Tools required
• Multimeter for proper starter voltage and voltage drop test.
• Test light to see power at the S terminal starter fast.
• Jumper cables for a bench test starter motor or to boost a battery.
• Power probe if you have one. It can feed power to the solenoid.
• Socket and wrench set. A torque wrench helps on install.
• Floor jack and jack stands to lift the car.
• OBD-II scanner for immobilizer system check if needed.
• Safety first
• Wear safety glasses and insulated gloves.
• Park in Park/Neutral. Set the parking brake. Use jack stands.
• Disconnect the battery. Remove the negative first. Avoid rings and loose jewelry.
• Work in open air. Keep a fire extinguisher nearby.

Warning. Some tests make sparks. You must secure the car. You must keep hands, hair, and tools clear of the flywheel and belts.

How do you test the starter on the car?

Follow these steps for an on-car starter motor troubleshooting. Take your time. Read each step out loud if it helps.

1) Visual inspection of starter and wiring

• Locate the starter motor near the transmission and engine block. On cars like a Honda Civic or Toyota Camry you may reach it from the top or bottom. On a Ford F-150 you often reach it from below.
• Inspect the main power cable at the B terminal. Check the small S terminal wire. Tug gently. Look for cracks, burns, or looseness on starter mounting bolts and the starter mount.

2) Confirm power supply to starter

• Main power (B+) test. With battery connected and key off measure voltage at the large B terminal on the solenoid. It should read close to battery voltage.
• Solenoid activation (S) test. Have a helper turn the key to START. Measure the small S wire. You should see near 12V during crank command. If you see “no power at S” chase upstream items like the starter relay, ignition switch, the neutral safety switch, or a problem in the wiring harness.
• Voltage drop test. Place the meter across the positive battery post and the B terminal. Have a helper crank. A good circuit drops less than about 0.5V. Do the same across the negative post and the starter case to test the ground path. High drop means resistance in starter circuit due to loose or corroded parts.

3) Listen and observe during crank

• Hear a click but no spin. Could be weak battery starter symptoms, bad main cable, or an internal starter fault like worn brushes.
• Hear nothing and see no drop. Could be starter relay or ignition switch or a park neutral safety switch issue.
• Hear a whir and no engagement. Could be Bendix drive symptoms or bad flywheel engagement.

4) Direct solenoid engagement test (bypass relay/ignition)

• Caution. The car must be in Park or Neutral. The parking brake must be set. Keep clear of moving parts.
• Use a power probe or a fused jumper to apply 12V to the S terminal. If the solenoid clicks and the engine cranks your upstream control path is bad. If it clicks and no spin the starter motor may be bad. If it does nothing the solenoid may be bad.

5) Direct starter engagement test (advanced and high risk)

• Extreme caution. Only if you are trained and safe. Sparks will occur.
• Use an insulated screwdriver (for bypassing) to bridge the B terminal to the S terminal for a brief moment. If the starter now cranks the engine your ignition/relay path is suspect. If it still does not spin you likely have a bad starter.

How do you bench test the starter off the car?

Sometimes you should test off the car. This removes the car wiring from the picture.

1) Remove the starter

• Disconnect the battery negative. Lift the car with a floor jack and set jack stands. Unplug the S wire and remove the B cable. Unbolt the starter. Support its weight as you pull it free. Note the starter wiring diagram and starter terminal identification so you can reinstall with the right torque specs starter.

2) Bench test with jumper cables

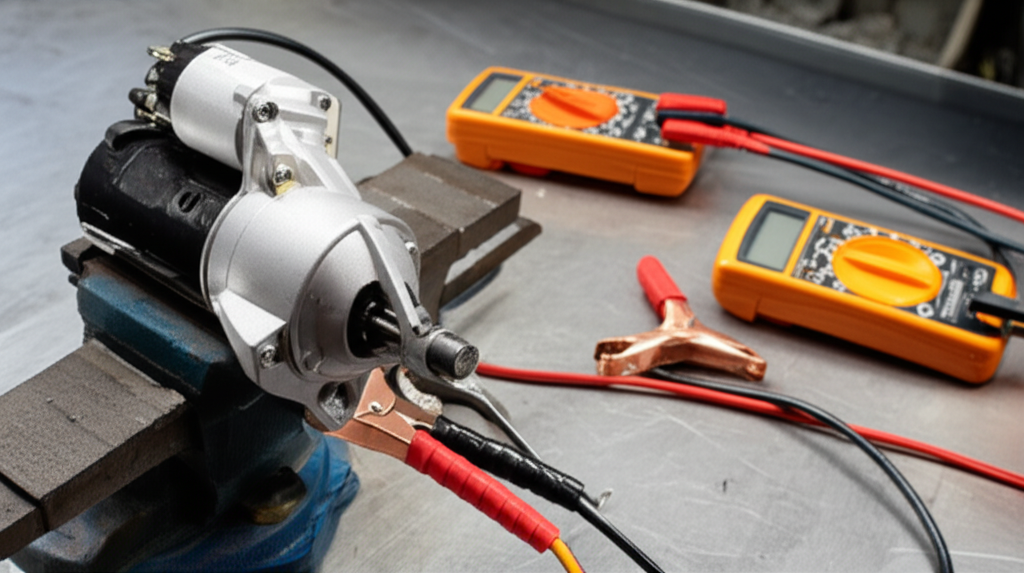

• Set the starter on the floor. Clamp the starter case to the negative terminal of a known good 12V battery. Connect the B terminal to battery positive. Use an insulated jumper to touch the S terminal to battery positive.
• Watch and listen. The solenoid should click. The Bendix should jump out. The motor should spin strong and smooth. If it spins weak or not at all you likely have internal starter fault or starter brush wear.

3) Advanced: amperage draw test

• Use an inductive amp clamp on the main power cable. Note current. A very high draw with slow spin may mean a shorted armature. A low draw and no spin may mean an open circuit or bad brushes or commutator. Use your toolkit and judgment here.

How do you read your test results?

Use these common starter motor diagnostic steps outcomes.

• Scenario 1: Solenoid clicks but starter does not spin
• Diagnosis. Battery weak. Poor main power. High resistance in starter circuit. Or worn brushes or damaged armature. Check cables. Do a load test car battery. Try a starter amperage draw test.
• Scenario 2: No click no spin power present at S terminal
• Diagnosis. Faulty solenoid with internal open. The solenoid needs replacement or a new starter motor.
• Scenario 3: No click no spin no power at S terminal
• Diagnosis. Upstream issue. Check starter relay, fuses, ignition switch, neutral safety switch, clutch safety switch, or immobilizer system check via OBD-II scanner.
• Scenario 4: Starter spins freely engine does not engage
• Diagnosis. Bendix drive failure or damaged flywheel teeth. Inspect starter gear problems and flywheel engagement.
• Scenario 5: Engine cranks slowly or weakly
• Diagnosis. Weak battery, corroded cables, bad grounds, or a partially failed starter. In rare cases low engine compression can mimic this.

When you match your test to a scenario you can pick the right fix.

What should you fix next?

If the starter is confirmed bad

• Choose a replacement. New vs remanufactured. New costs more but may last longer. Reman can save money. Ask about starter motor lifespan factors and warranty.
• Consider a starter motor rebuild kit if you have skills. You can replace brushes and service the commutator.
• DIY replacement. It is doable with basic tools on many cars. Follow the starter removal process. Use proper torque specs starter on install. Recheck starter ground connection.
• Professional repair. If access is tight or you are not sure use a mechanic starter test and service. A certified tech can do a professional starter diagnosis.

If the starter tests good

• Revisit the battery. Confirm checking battery voltage and do the load test again. Inspect alternator output.
• Recheck fuses & relays and the ignition switch. Test the starter signal wire. Check the wiring harness for breaks. Do a continuity test on the starter cable. Fix any parasitic draw starter problems that drain the battery.

Do weather and wear change the test?

Yes they do.

• Cold weather starting problems
• Cold slows chemical action in a battery. It raises oil drag. You see engine turns over slowly. You must start with a full charge and clean cables.
• Hot weather starting problems
• Heat can cause high resistance. You get intermittent starter problems when hot. Heat also wears the solenoid contacts.

Wear adds up.

• How long do car starters last
• Many last 100,000 to 150,000 miles. Short trips and lots of restarts increase wear. You will see more starter motor failure signs like slow crank and clicks.

Does motor build quality matter?

It does. Inside a motor the steel stack and windings shape performance. If you build or reman gear you know this well. High grade laminations cut losses and heat. That boosts torque and life.

• For stators and rotors
• Better stacks matter. Learn how the right electrical steel laminations lower eddy loss and help motors run cooler.
• See how precise motor core laminations support smooth spin and steady amperage draw.
• Explore tight-tolerance stator core lamination designs that improve field strength.
• Match with balanced rotor core lamination for strong start torque and low noise.

This matters to OEMs and rebuild pros. It also matters to you because good parts last longer and start better.

Real-world examples

• Ford F-150
• Symptom. “Click no crank.” Battery tests good. Voltage at S during START reads 12V. No spin. Direct apply to S clicks only. On bench the motor fails to spin. Fix. Replace starter with proper AC Delco, Bosch, or Denso unit per spec.
• Honda Civic
• Symptom. “Car cranks but won’t start.” The starter is fine. The engine spins. This is not a starter fault. Diagnosis moves to fuel or spark. This shows why a clear starter motor inspection saves you from wrong parts.
• Toyota Camry
• Symptom. “Slow crank hot.” Battery passes load test. Voltage drop on ground side reads 1.2V during crank. Fix. Clean and tighten engine block ground strap and negative cable. After repair the car cranks strong.

Key stats and costs

Here is a short table that sets the scene. It helps you plan and save.

You can also track target readings.

FAQs

• Why does my car click but not start?
• A click means the solenoid moves. The motor may not spin due to low battery, corroded cables, or worn brushes.
• Can a brand new starter not work?
• Yes. You can face brand new starter not working due to a bad part or wrong install. Always bench test before install.
• Are rebuilt starters good?
• Yes many are. But some show rebuilt starter problems. Buy from a trusted brand like Bosch, Denso, or AC Delco and test before install.
• Can a starter cause a parasitic draw?
• Rarely. A shorted solenoid or wiring can cause a parasitic draw starter. Use a circuit breaker and meter to test draw with the car off.
• What is the “M terminal”?
• Some solenoids label the motor post as M terminal. The large cable from the solenoid to the motor connects there.

References

• OEM Service Manual for your vehicle (starter circuit diagrams and torque specs)
• SAE J537 Storage Batteries (battery testing standard)
• AAA Car Care: Battery and starting system basics
• Bosch, Denso, AC Delco technical bulletins on starter testing

Summary: What to remember

• Start with the battery. Clean posts. Do a voltage and load test.
• Check the fuses, the starter relay, and the ignition switch.
• Test the S terminal for 12V during START. No 12V points upstream.
• Do a voltage drop test on both sides. High drop means poor cables or grounds.
• Use safe on-car tests to narrow the fault. Bypass with care.
• Bench test the starter for click, gear travel, spin, and amperage draw.
• Read your results. Fix the exact fault. Do not guess.
• Replace or rebuild the starter if it fails tests. Use quality parts.
• If the starter tests good look at the battery, alternator, fuses, relays, and wiring again.
• Keep tools ready. Wear safety gear. Work slow and steady.

You now have a clear, simple plan. Use it today to diagnose starter motor troubleshooting. You will save time. You will save money. You will feel calm the next time your car will not start.
