How to Check a Condenser Fan Motor: A DIY Troubleshooting Guide From My Workbench

Table of contents

• Introduction: Why your condenser fan motor matters and how I learned to check it the right way
• Safety first: Power down procedures and critical warnings
• No-tool checks: Quick wins before you grab a multimeter
• Tools I actually use for condenser fan motor troubleshooting
• Step-by-step electrical checks with a multimeter
• Access the service panel
• Discharge the capacitor safely
• Test the run capacitor in mfd
• Do a motor winding resistance test
• Check for shorts to ground
• Verify voltage at the motor terminals
• Optional amp draw test
• What your results mean and what to do next
• When I call an HVAC technician and why
• Preventative maintenance tips that actually help
• Understanding motor types and specs in plain English
• Extra context: Why motor construction matters
• Cost and time estimates to help you decide
• Closing thoughts and a quick recap

Introduction: Why your condenser fan motor matters and how I learned to check it the right way

The first time my outdoor AC fan stopped spinning I made the rookie move. I poked the blades with a stick and cheered when it kicked on. Ten minutes later the unit shut down again. It hummed. It buzzed. It refused to cool the house. I learned fast that this isn’t about clever tricks. It’s about safe, step-by-step diagnostics.

Your condenser fan motor does two big jobs. It pulls outside air through the condenser coil and it moves hot air away from the refrigerant loop. When the fan motor fails the AC can’t shed heat. Cooling efficiency drops. The compressor overheats then the overload protector may trip to save it. If you ignore it the compressor can cook itself. That repair hurts.

I’ll show you the exact process I use to check a condenser fan motor. You’ll see how I test the capacitor in microfarads, how I run a condenser fan motor resistance test with a multimeter, and how I check voltage at the motor terminals. I’ll cover the common signs of a bad condenser fan motor. AC fan not spinning. Outdoor unit fan spins slowly. AC fan motor hums but won’t start. Humming, buzzing, or a clicking noise at the contactor. Intermittent fan operation. Bearing noise. A fan blade that won’t turn freely by hand.

Why DIY diagnosis matters. You save money. You make informed decisions. You avoid guessing. Many times the fix is a simple capacitor swap. Other times the motor windings are open or shorted. Sometimes the fan motor is seized. Sometimes the problem sits upstream at the contactor or a blown fuse. I’ll help you sort that out.

One more thing before we start. Safety isn’t optional. I treat every condenser unit like it stores lethal energy because it does. High voltage plus big capacitors can bite. Read the safety section. Follow the steps. Take your time.

Safety first: Power down procedures and critical warnings

I never touch an outdoor unit until I make it dead safe.

• Thermostat to OFF. If the unit is calling for cooling you’ll fight it during testing.
• Disconnect switch at the outdoor unit to OFF. The handle usually pulls straight out.
• Main electrical panel breaker to OFF. I tape it and leave a note. Lockout/tagout prevents surprises.
• Verify with a non-contact voltage tester at the disconnect and inside the service panel. Trust but verify.

Capacitors hold a charge after power is off. You must discharge the run capacitor before handling wires. I use an insulated screwdriver with a resistor across the blade or a proper capacitor discharge tool. Never short a large capacitor directly with a bare screwdriver. The spark is real and the damage is possible.

Personal protective equipment matters. I wear safety glasses and insulated gloves. I use insulated tools. I keep one hand behind my back when checking live voltage to avoid a current path across my chest. If any of this makes you nervous stop here and call an HVAC technician. Live checks are advanced and high risk.

No-tool checks: Quick wins before you grab a multimeter

I start with simple stuff. Many “AC outdoor unit fan not turning” calls end here.

• Thermostat settings. Set to COOL and fan to AUTO. Check the temperature setpoint.
• Tripped circuit breaker. Reset once. If it trips again you have a fault.
• Outdoor disconnect. Make sure the pull-out is seated correctly.
• Listen for diagnostic sounds. A steady hum often points to a bad capacitor. Clicking can be a contactor pulling in and dropping out. Grinding suggests bearing damage. Buzzing without fan motion can be an AC motor locked rotor condition.
• Inspect fan blades from the top grille. Remove debris, leaves, or branches. Look for cracks or bent blades. Airflow obstruction hurts performance.
• Manual fan blade spin test with power OFF. Spin the blades by hand. They should turn freely and coast a bit. If they feel stiff the bearings may be dry or seized. If they wobble you may have excess AC motor shaft play. Don’t lubricate sealed condenser fan motors unless the nameplate calls for it. Many are permanently lubricated and sealed.

If the compressor runs but the fan doesn’t you’ll hear a deeper rumble from the unit. If the fan runs but the compressor doesn’t you may hear a click from the overload then silence. Note what you see and hear. It all helps.

Tools I actually use for condenser fan motor troubleshooting

• Multimeter with Volts AC, Ohms, and microfarad (mfd) settings
• Clamp ammeter for amp draw
• Screwdrivers: Phillips and flathead
• Insulated screwdriver or resistor discharge tool for capacitors
• Nut drivers or a small wrench set
• Needle-nose pliers
• Safety gloves and eye protection
• A camera or phone to photograph wiring before I disconnect anything

These are my core HVAC diagnostic tools for this job. I don’t need a full bench lab. I need reliable meters and safe habits.

Step-by-step electrical checks with a multimeter

This is the backbone of my HVAC fan motor diagnosis. I follow a repeatable process. It keeps me safe and it keeps the data straight.

Access the service panel and find the parts

• Remove the screws on the side panel of the outdoor unit. Lift it off carefully.
• Locate the contactor, the run capacitor, and the condenser fan motor leads. Many AC units use a dual run capacitor with three terminals: C (Common), FAN, and HERM (compressor). Some use a single run capacitor for the fan.
• Take clear photos of the wiring. I refer to them later when I reassemble. If you have an AC fan motor wiring diagram under the panel snap that too.

Discharge the capacitor safely

This step is non-negotiable. Power is OFF at the breaker and disconnect.

• Verify the capacitor terminals with your meter. Voltage should read near zero.
• Discharge across C to FAN first using a resistor discharge tool or an insulated screwdriver with a resistor. Hold for a few seconds.
• For dual run capacitors also discharge C to HERM.
• Confirm zero voltage on the terminals after discharge.

I don’t skip this or rush it. A charged capacitor can deliver a nasty jolt.

Test the run capacitor in microfarads (mfd)

Capacitors fail often. In my experience capacitor failure shows up in 15 to 20 percent of AC service calls. A weak or open capacitor causes the classic symptom. The AC fan motor hums but won’t start or it starts and stops.

• Label and remove the wires from the capacitor terminals. I use masking tape and a marker.
• Set your multimeter to capacitance (mfd).
• For a dual run capacitor test between C and FAN for the fan section. Compare the reading to the rated microfarads on the label. Most allow a tolerance of plus or minus 5 to 10 percent. If the rating is 7.5 mfd and you read 5.5 mfd the capacitor is weak. Replace it. If it reads zero or OL it’s open. Replace it.
• For a single run capacitor test across the two terminals.
• If the capacitor looks swollen or leaks oil replace it without testing.

I keep spares on hand because a failed capacitor is the most common and easiest fix. Match voltage rating and microfarad rating. Never use a lower voltage rating.

Do a motor winding resistance test (Ohms)

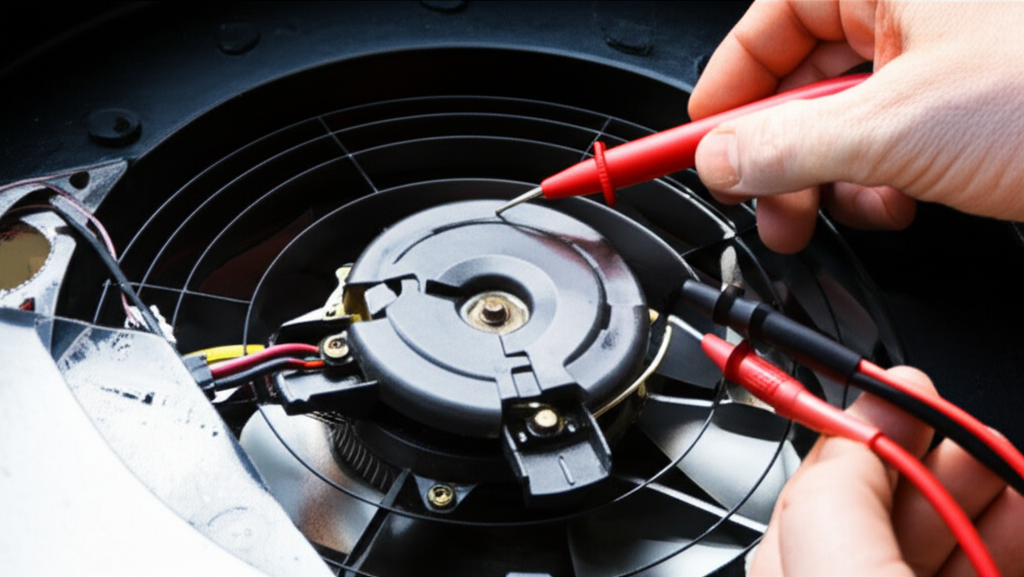

If the capacitor passes I move to the condenser fan motor resistance test. This checks the health of the windings.

• Disconnect the motor wires from the contactor and the capacitor so you isolate the motor.
• Identify the motor leads. Common, Start, and Run are typical on a PSC motor. Colors vary. Your wiring diagram or nameplate helps. Many PSC condenser fan motors use brown and brown/white for the capacitor, black to line, and another colored lead for the other winding. Don’t rely on color alone.
• Set the meter to Ohms.
• Measure Common to Run. Then Common to Start. Then Run to Start.
• You should see finite resistance on all three pairs. Common to Run plus Common to Start should roughly equal Run to Start. Exact values vary. If any pair reads open (OL) you have an open winding. If any reads near zero you have a shorted winding.
• Check motor winding continuity to ground. Place one lead on each motor lead and the other on the motor metal shell. You should read open. Any resistance to ground indicates a short to ground and a bad motor.

This AC motor ohm test tells me if the motor is electrically sound. If it fails you replace the motor.

Check for shorts to ground

I separate this because it matters. Shorts to ground trip breakers and blow fuses. Use a megger if you have one. A regular meter can catch obvious faults. If the motor shows any continuity to the shell or frame it’s done.

Verify voltage at the motor terminals (advanced and risky)

Only do this if you are comfortable with live electrical work. If not skip it and call a pro.

• Reconnect everything as originally wired. Confirm all wires are secure.
• Restore power at the breaker. Keep hands clear.
• Set your multimeter to Volts AC.
• Call for cooling at the thermostat.
• Measure voltage at the motor feed. Most residential units expect 208 to 240 VAC. If you see full line voltage at the motor and the fan doesn’t run the problem is likely the motor or its capacitor. If you see no voltage the fault sits upstream. Look at the contactor, control board, safety switches, or wiring. A faulty fan relay can also block power on some systems.

I never reach into a live panel with both hands. I keep my body away from the cabinet. I take the reading then step back.

Optional amp draw test with a clamp ammeter

This confirms loading under operation.

• Clamp around the fan motor hot lead.
• Compare the measured amps to the motor’s nameplate Full Load Amps (FLA).
• If the amp draw is high the bearings may be tight or the blade may be damaged. If the draw is very low and the fan spins slowly you may still have a weak capacitor under load.

I use this test when the motor runs but the airflow feels weak or the unit overheats. It helps catch motors that pass a static test but fail under load.

What your results mean and what to do next

Here’s how I interpret the common outcomes during air conditioning troubleshooting.

• Bad capacitor. Replace it. This is the top result in my notes. It matches the stat that roughly 15 to 20 percent of AC service calls involve a bad capacitor. A new run capacitor that matches the microfarad rating often brings the fan to life. This is a quick DIY AC repair.
• Open or shorted motor windings. Replace the condenser fan motor. No fix exists for damaged windings. If the motor is under warranty use it. If not you’ll weigh cost to replace condenser fan motor versus a new unit if your system is very old.
• Seized bearings or a stuck shaft. If the fan blades don’t turn freely or the motor squeals you replace the motor. You can try to lubricate an older sleeve bearing motor if it has oil ports. Most modern condenser fan motors are sealed and can’t be lubricated.
• No voltage to motor. Focus on the contactor test, the control circuit, or a blown fuse. Check the low voltage from the thermostat and safety switches. A bad contactor will show coil voltage but no line voltage passing through. An AC fuse blown on the control board will kill the coil and the contactor won’t pull in.
• Good readings yet the fan still won’t run. I’ve seen weak motors that spin by hand and test fine yet stall under heat. Intermittent fan operation points to thermal overload protection inside the motor. It shuts down to protect the windings then resets. Replace the motor.

If your compressor runs while the fan is off turn the system off. The compressor depends on that airflow for cooling. That’s compressor protection 101.

When I call an HVAC technician and why

I love DIY AC repair yet I know my limits.

• I call a pro if I’m not comfortable with live voltage tests.
• I call when diagnostics are inconclusive. I won’t shotgun parts.
• I call when the contactor or control board looks suspect and I don’t have the exact part on hand.
• I call if the system has refrigerant problems. Low charge won’t usually stop the condenser fan although the system may short cycle and act strange. Refrigerant handling isn’t a DIY space.
• I call when the motor uses an ECM or BLDC controller that needs brand-specific setup. Many residential condenser fans are PSC motors. Some high efficiency models use ECM or brushless DC motors that need a different approach.

A good technician has seen every combination. Sometimes you buy speed and certainty.

Preventative maintenance tips that actually help

These simple habits cut problems down.

• Keep the outdoor unit clear. Trim bushes. Clean leaves away. Airflow obstruction hurts the system and stresses the fan motor.
• Clean the condenser coil each spring. Dirty coils force the fan motor to work harder and raise head pressure.
• Inspect the fan blade once a year. Look for cracks or bent blades. Check set screw tightness on the hub.
• Check the capacitor every season with an mfd test if you have a meter that supports it.
• Schedule annual professional maintenance. A quick tune-up catches small issues before they grow.
• Make sure the unit sits level. A tipped unit can load the bearings unevenly.

HVAC maintenance tips sound boring. They save compressors and motors. I learned that the hard way when a mat of cottonwood fluff choked my coil and overheated the system.

Understanding motor types and specs in plain English

I meet three common motor types in outdoor condenser units.

• PSC motors. Permanent Split Capacitor. This is the classic design with a run capacitor. Easy to diagnose with capacitor mfd tests and winding measurements. Most of this guide targets PSC motors.
• ECM motors. Electronically Commutated Motor. These have an internal controller. They can vary speed. Diagnosis focuses on DC power and signals rather than a simple capacitor. ECM motor diagnosis often needs brand documentation.
• BLDC motors. Brushless DC. Similar idea to ECM. These show up on high efficiency units.

Identifying fan motor type helps. The presence of a run capacitor going to the motor is a strong sign of a PSC motor. An ECM or BLDC motor usually has a multi-pin connector and no external run capacitor.

Understanding AC motor specs matters too.

• Voltage. Most residential condensers run 208/230 VAC single phase. Match your replacement motor.
• Horsepower and RPM. Match blade load and speed. Many are 1/5 to 1/3 HP at 825 or 1075 RPM.
• Rotation and shaft size. Check the arrow on the motor. Use the correct rotation or the blade will push air the wrong way.
• Full Load Amps (FLA). Your amp draw test should land at or below this value.
• Capacitor rating. If your motor calls for 5 mfd use 5 mfd. Don’t improvise.

Blower motor vs condenser fan motor. The indoor blower moves air across the evaporator coil and usually runs on lower voltage for PSC or ECM control. The condenser fan lives outdoors and handles hot air and weather. Different environment. Different failure patterns.

Extra context: Why motor construction matters

Understanding what sits inside the motor helps you troubleshoot with more confidence. The stator and rotor make a magnetic circuit. Laminated steel reduces eddy current losses. High quality laminations improve efficiency and keep heat down.

If you want to dig deeper into the guts

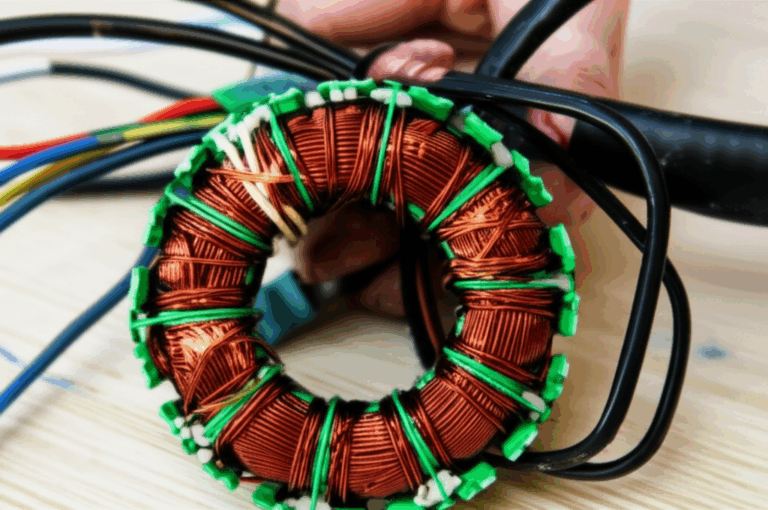

• The stator uses thin stacked steel sheets. The quality of the stator core lamination affects efficiency and heat.
• The rotor also uses stacked steel. Better rotor core lamination reduces losses and keeps torque stable.
• The entire magnetic path depends on precise motor core laminations so winding temperature stays in check during summer peaks.
• The steel itself matters. Low-loss electrical steel laminations help motors run cooler which improves lifespan.

Why should you care as a homeowner. Motors fail when heat wins. Good design fights heat. Your job is to keep airflow clean and electrical parts healthy so the motor doesn’t cook.

Cost and time estimates to help you decide

I like honest numbers. Here’s what I see in the field and at the parts counter.

• Capacitor cost. $15 to $50. I replace them in under 30 minutes once the panel is open.
• Condenser fan motor cost. $70 to $300 for common PSC replacements. Specialty ECM or brand-specific motors can cost more.
• Professional replacement. $300 to $800 for parts and labor. Your market may vary.
• Motor lifespan. Expect 10 to 15 years with decent maintenance. Heavy use, extreme heat, salt air, or dirty coils can shorten it to 5 to 7 years.

If your system is older than the teenagers in your house you may spend more time replacing parts. That’s normal. Diagnose first then decide with clear eyes.

Real-world examples from my notebook

A few quick snapshots to anchor the process.

• AC unit not cooling house and outdoor unit buzzing. The fan didn’t spin. Blades turned freely by hand. Capacitor tested at 3.1 mfd on a 7.5 mfd label. Replaced the capacitor. Fan started instantly. System cooled within minutes. Total time 25 minutes.
• Outdoor unit fan spins slowly and motor gets hot. Capacitor tested within tolerance. Amp draw was high by 20 percent. Bearings felt rough and the motor made a faint growl. Replaced the motor and the capacitor as a pair. Amp draw went back to nameplate. No further trips on thermal overload.
• AC fan motor hums then stops. Winding test showed open between Common and Start. Motor tested grounded to the case. Replaced motor. Verified contactor and supply voltage. Unit ran normally.
• Contactor clicks but fan and compressor don’t start. Breaker trips. Found insulation rubbed through on a motor lead at the chassis. Short to ground. Repaired wiring and replaced the motor since the insulation damage went past repair. Breaker held after that.

These cases all followed the same logic. Basic checks first. Capacitor mfd test. Ohm test. Voltage checks. No guesswork.

Extra troubleshooting tips that save time

• If the fan blades not turning freely the motor is likely gone. Don’t waste time on the capacitor unless you like surprises.
• If the AC unit making noise like scraping or rattling check for a loose blade hub or twigs in the grille.
• If the circuit breaker tripping AC with every start suspect a short to ground, a seized motor, or a miswired capacitor.
• If the AC unit not cooling effectively with the fan running verify condenser coil cleanliness. Dirty coils raise head pressure and beat up the fan and compressor.
• If you need to test condenser fan motor without power do the winding resistance and continuity checks with power off. That’s the safe path.
• Don’t “jump start” the fan with a stick. It can buy time yet it masks a failing part. It also risks fingers.

Common questions I get

Why is my AC fan not working but the compressor is

• Likely a bad run capacitor or a failed fan motor. Don’t keep running it. You’ll overheat the compressor.

How to test AC motor windings quickly

• Disconnect the motor. Do Common to Run, Common to Start, and Run to Start with the meter in Ohms. Check against the rule that CR plus CS roughly equals RS. Then test each lead to the shell to confirm no short to ground.

What about the contactor test

• With power off inspect the contacts. Pitted or burned contacts can block voltage to the motor. With power on check for 24 VAC across the coil when the thermostat calls for cooling. If the coil has voltage and the contactor doesn’t pull in replace it. If the coil has no voltage check the low-voltage circuit and fuses.

Do refrigerant levels impact fan operation

• Not directly for PSC fan control. Low refrigerant impacts cooling performance and compressor behavior. It can cause short cycling which may look like intermittent fan operation. Fix the refrigerant issue with a licensed tech.

How to lubricate AC fan motor

• Most condenser fan motors are permanently lubricated. No oil ports. If yours has oil ports use non-detergent electric motor oil sparingly. When in doubt check the nameplate.

How to check thermostat wire for AC fan

• If the contactor doesn’t pull in check for 24 VAC at the contactor coil when the thermostat calls. If you have no 24 VAC track back to the control board, safety switches, and thermostat wiring.

Putting it all together: a clear decision tree

• AC fan not spinning
• Blades stiff by hand. Replace motor.
• Blades spin freely. Test capacitor. If bad replace. If good go to winding test.
• Winding test fails. Replace motor.
• Winding test passes and capacitor passes. Check voltage at motor during a call for cooling. If no voltage troubleshoot contactor and controls. If full voltage present replace motor.
• Outdoor unit fan spins slowly
• Test capacitor. A weak capacitor is common. If capacitor passes check amp draw and bearing condition. Replace parts as needed.
• Fan motor hums then stops
• Suspect start winding or thermal overload. Test windings and check for shorts to ground. Replace motor if required.

Final safety reminders I live by

• Power OFF before you touch anything. Check it. Then check it again.
• Discharge capacitors every time. Don’t trust the last person’s work.
• Keep one hand away when probing live circuits. Respect electricity or it will teach you a lesson you won’t forget.
• Don’t exceed your comfort zone. HVAC electrical safety beats bravery every day.

Closing thoughts and a quick recap

I’ve checked more condenser fan motors than I can count. The pattern stays the same. Start with basic AC checks. Verify thermostat settings. Confirm the breaker and disconnect. Listen for humming, buzzing, or clicking. Spin the blade by hand with power off.

Move to the meter. Discharge the capacitor. Do a capacitor mfd test. Run a condenser fan motor resistance test. Check for shorts to ground. If needed do a safe live voltage test at the motor terminals. Consider an amp draw test against the motor’s FLA.

Interpret the results and act. Replace a bad run capacitor. Replace a motor with open or shorted windings. Replace a motor with seized bearings or noisy operation. If there’s no voltage to the motor check the contactor and control circuit. Call a pro when the path gets murky or when ECM or BLDC controls enter the picture.

Finally stay ahead of problems. Keep the coil clean. Keep the area clear. Check the capacitor annually. Your AC will thank you with fewer surprises during the hottest week of the year.

With this HVAC repair guide in hand you can handle most outdoor fan troubleshooting with confidence. You’ll avoid guesswork. You’ll protect your compressor. You’ll make smarter decisions about DIY versus calling in a technician. That’s a win in my book.
