Your car heater and AC need the blower to push air. The blower motor resistor controls fan speeds. When it fails you get odd speeds or no air. In this guide I show you how to diagnose it with a multimeter. I keep it simple. You can do this at home and save money.

I also share a trick to test the blower motor itself. I point out what to check next if the resistor is fine. I use real signs and steps so you can fix it fast.

What does a Blower Motor Resistor do

The Blower Motor Resistor sets fan speed by adding resistance in the electrical circuit. Lower speeds use more resistance. High speed uses less or none. The Blower Motor gets the right voltage and amperage for each speed.

Most cars with manual climate control use a resistor pack with small coils and a thermal fuse. Some newer cars use pulse width modulation blower control. That is a small HVAC blower control module that changes power by fast pulses. We call that a digital vs analog blower motor resistor difference. The old style uses simple resistors. The new style uses electronics.

Why do fan speeds matter so much

Fan speeds matter for comfort and safety. Low speeds keep you cool. High speed clears a foggy dashboard fast. You need defrosting in winter. Your HVAC System works best when the ventilation system flows right. A bad resistor hurts Air Conditioning (AC) and the Heating System. It wastes energy. It can even overheat.

Is the Blower Motor Resistor your problem

Problem. Your fan acts up. You ask why it only runs on high or not at all. You may smell something hot near the dash. You feel stressed since you need heat or AC now.

Agitate. You turn the dial and nothing happens at low speeds. You get stuck with loud high speed or no air. The windows fog. The car feels unsafe. You worry about cost. You fear a big bill.

Solution. You can test the blower motor resistor in your driveway. You only need a multimeter and basic hand tools. I show you how to do a blower motor resistor troubleshooting path. You will see if the resistor pack is bad or if the Blower Motor or wiring harness is to blame. You will know if the fan speed switch or Climate Control Module is the cause.

What are the key symptoms of a bad blower motor resistor

Here are the classic signs:

Fan only works on highest speed setting. People ask why their blower motor only works on high. This is the number one clue.
Certain fan speeds are non-functional. For example speeds 1 2 3 do not work yet 4 does. That is a core symptoms of bad blower motor resistor pattern.
Intermittent blower fan operation. It works some days and quits on others.
No fan operation at all. The blower can fail if the thermal fuse blows. That is less common yet still possible.
Burning smell from dashboard. That points to overheating inside the resistor pack or a loose connector.

What tools do you need for testing

You do not need fancy gear. You need:

Digital Multimeter for voltage test blower motor resistor, ohms test, and continuity.
Test Light for a quick power wire test and ground wire test.
Basic Hand Tools: Phillips Head Screwdriver, Flathead Screwdriver, Torx Screwdriver, Socket Wrench, panel tools.
Safety Glasses and gloves.
Flashlight.
A Vehicle-Specific Repair Manual or Wiring Diagram. You can also use a wiring diagram blower motor resistor image from a trusted source.

You can also print a simple diagnostic steps blower motor resistor checklist. It keeps you on track.

How do you stay safe before you test

Work safe. Do this first:

Disconnect the battery. Remove the negative terminal first. That avoids shorts.
Let parts cool. The resistor pack can get hot.
Avoid live wires. Wear Safety Glasses. Protect your hands.
Use a stable light. Set the flashlight where it will not fall.

If your car has automatic climate control be extra careful. The control module can be costly. Do not short the Climate Control Module or the PCM (Powertrain Control Module).

Where is the blower motor resistor located

You can find it close to the Blower Motor. It sits in the air stream to shed heat. Most common spots:

Under the dashboard on the passenger side.
Near the blower in the HVAC housing.
Behind the glove box. Move the door down for easier access.
On the firewall in the engine bay on some older Vehicle Manufacturer designs.

Tips:

Remove the glove box for more room. Many Ford, GM, Honda, and Toyota cars put it right there.
Look for a small wiring harness plug with two to five wires.
The resistor pack mounts with two small screws. Use a Torx or Phillips driver.

Step-by-step: How to test a blower motor resistor with a multimeter

I break this into clear steps. You get simple checks first. Then deeper tests.

Step 1: Visual inspection with power off

Unplug the connector from the Blower Motor Resistor. Look for melted plastic. Look for green corrosion. Look for dark burn marks.
Check the wiring harness for chafed wire. Tug each wire. Make sure the pins sit tight.
Do a visual inspection blower motor resistor board if it is open style.
If it has a thermal fuse you may see a small metal piece. Do not jump it yet. We will test it.

This step already finds many faults. A cooked plug means heat. Heat comes from load. A failing Blower Motor can pull too much amperage. That fries resistors.

Step 2: Test for power at the resistor connector

Now you make sure power gets to the resistor.

Reconnect the battery.
Turn the key to ON. Leave the engine off.
Set the multimeter to DC Volts (VDC).

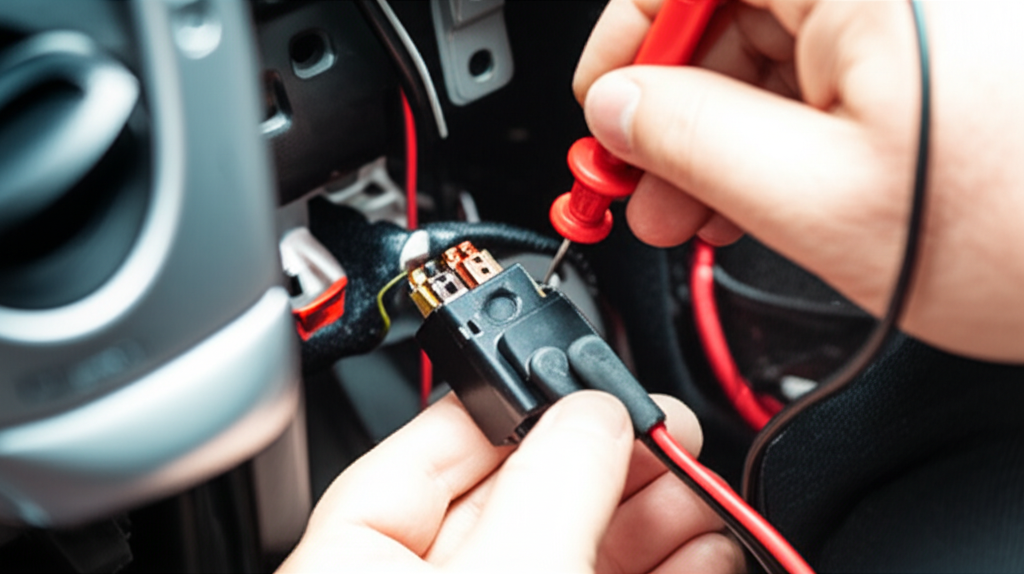

With the resistor removed back-probe the main input wire at the resistor connector. You should see near 12 volts.
Move the fan switch from low to high. On many cars the output wires change voltage. This shows the switch and control panel send the right signals.
Clip the test light to battery positive then touch the ground wire in the plug. The light should glow bright. That proves a good ground.
This is the checking for power at blower motor resistor and power wire test blower motor resistor and ground wire test blower motor resistor step.

Note. This checks if power is getting to the resistor. It does not prove the resistor itself is good.

Step 3: Ohms test on the resistor itself

Disconnect the battery again.
Remove the Blower Motor Resistor from the car.
Set the multimeter to Ohms (Ω). This is your ohmmeter mode.
Identify the input and output pins. Use a wiring diagram or a vehicle-specific manual.
Touch the probes across the thermal fuse. You should see near zero ohms. That is a continuity test blower motor resistor on the fuse.
Next test each resistor coil. Lower speeds should show higher resistance values blower motor resistor. A reading of OL means an open circuit blower motor resistor diagnosis and a bad segment.
Mark your test points. Take a picture before you pull it apart. That helps with installing new blower motor resistor later.

You can also test a ceramic blower motor resistor the same way. The values can vary by model so check your manual for expected readings for blower motor resistor.

Step 4: Advanced. Bypass to test the motor

Sometimes you must confirm the motor itself.

Use two jump wires. Clip the Blower Motor straight to 12V power and a good ground.
The motor should spin strong. If it drags or squeals it is weak.
This is a blower resistor bypass test that isolates the motor.

Warning. Do not run it long. This bypasses speed control and safety.

How do you read the test results

Here is a simple guide.

Resistor shows open on any coil. That means a bad segment. Replace the resistor.
Thermal fuse has no continuity. The blower often dies on all speeds. Replace the fuse only if rated the same. Many choose to replace the whole resistor pack. Never do a thermal fuse bypass blower motor resistor in a live car. That is a blower motor resistor fire hazard.
Power and ground test good yet no speeds work. The fan speed switch or HVAC Control Unit may be bad.
You see power at the resistor connector yet the Blower Motor does not spin. You may have a bad blower motor vs resistor case. Test the power at blower motor connector and ground at blower motor connector.
Voltage drops too much across wires. Do a voltage drop test blower motor resistor and check for a short in blower motor wiring.

Use the table below to plan your test.

Diagnostic cheat sheet

Test Step	Good Reading	Bad Reading	What It Means
12V at input wire	11.5V to 12.6V	Under 10V	Supply issue or fuse or relay
Ground check with test light	Bright	Dim or off	Bad ground
Thermal fuse continuity	0 to 0.5 Ω	OL or very high	Blown fuse inside resistor
Coil resistance low speed	Higher Ω	OL	Open coil segment
Coil resistance high speed	Near 0 Ω	OL	High speed path open
Motor direct 12V test	Spins strong	Slow or dead	Bad motor

What if the resistor tests good

Do not stop. Keep going.

Check the Fuse Box. Do a checking fuses for blower motor resistor step. Replace any blown fuse with the same rating.
Check the Blower Motor Relay if your car has one. Swap with a matching relay to test.
Inspect the wiring harness for a electrical short or corrosion at the connector.
Test the fan speed switch on the control panel. It can fail and mimic a bad resistor.
On cars with automatic climate control the Climate Control Module or the HVAC control unit can fail. Scan for a Diagnostic Trouble Code (DTC). Some cars store codes for the HVAC System.
In rare cases the PCM limits the blower due to system load. Check for other codes.

How to replace a bad blower motor resistor

Replacement is often quick.

Remove the glove box if it blocks the panel. Unplug the connector. Remove two screws. Pull the resistor pack out.
Clean the socket. Do a cleaning blower motor resistor contacts step. Use contact cleaner. Scrub light corrosion on blower motor resistor connector with a brush.
Insert the new part. Tighten the screws. Plug it in. Test all speeds.

Cost talk:

DIY parts can run from 15 to 75 dollars for Aftermarket Part units. OEM Part can run 50 to 150 dollars or more.
Labor cost at a shop can run 50 to 150 dollars. Many cars take under one hour.
Total cost to replace resistor vs motor can range 65 to 300 dollars or more with labor. A Blower Motor can cost more than the resistor.

When should you replace the motor too

If the motor draws too much amperage it can cook new resistors. Check draw with an amperage clamp if you can. Many techs replace both when the plug shows heat damage. That is the when to replace blower motor with resistor call.

Can better parts prevent resistor failure

You can reduce heat and extend life.

Keep the Cabin Air Filter clean. A clogged filter reduces airflow. The resistor runs hotter. That shortens life.
Fix any wiring issues. Loose pins and bad grounds build voltage drop and heat.
Use quality parts. Cheap parts can run hot. OEM parts last longer in many cars.

Want to go deeper on motor design

Good motors use high grade steel stacks that limit eddy losses. That cuts heat. In turn the resistor and module run cooler. You can learn more about quality motor core laminations.
The stator and rotor use thin electrical steel with tight tolerances. Better steel lowers core loss. That means less heat and better torque. See how electrical steel laminations improve motor efficiency.
Many late-model HVAC blowers use brush motors. Some premium models use BLDC motors with electronic control. The stator core matters there too. Check out high quality bldc stator core designs to understand why smooth magnets and tight stacks cut noise.
Even simple brushed motors use a stator ring. Better stacks help them run cooler. Learn how the stator core lamination sets the stage for long life.

These deeper parts live inside the motor. You do not see them. Yet they affect heat. Less heat helps the resistor. It keeps speeds stable.

Extra how-tos and pro tips you can use today

Here are common questions people ask. I fold in quick answers you can use now.

Where is blower motor resistor located. Most times it sits near the blower behind the glove box on the passenger side.
DIY blower motor resistor check. Follow the visual check then do the meter tests.
Test blower motor resistor with multimeter. Set to volts then ohms. Check power ground and coil values.
Heater fan resistor test. Same steps. Heat or AC does not change the test.
Testing ceramic blower motor resistor. Use the same ohms test. Be gentle with the coils.
Checking resistor pack HVAC. Pull the pack and look for burn marks.
Multimeter settings for resistor test. Volts DC for power checks. Ohms for coils and continuity.
How to use a test light for blower motor resistor. Verify power and ground quickly.
Checking for power at blower motor resistor. Probe the input wire with key ON.
Inspecting blower motor resistor for damage. Melted plastic and burned coils are strong clues.
Visual inspection blower motor resistor. Use a bright light and take a close look.
Cleaning blower motor resistor contacts. Use spray cleaner and a small brush.
Can a bad blower motor resistor drain battery. Not usually. A short in the wiring or a stuck relay could drain power though.
Blower motor resistor fire hazard. Heat and shorts can cause smoke. Fix wiring and do not bypass fuses.
Causes of blower motor resistor burning out. High motor draw poor airflow corrosion cheap parts.
How to prevent blower motor resistor failure. Keep filters clean and wiring tight. Replace weak motors.
What kind of resistor is in a car blower motor. A wire-wound resistor pack with a thermal fuse or an electronic module for PWM.
Identifying correct blower motor resistor part. Use your VIN and a parts catalog. Choose OEM when possible.
OEM vs aftermarket blower motor resistor. OEM often lasts longer. Aftermarket can cost less.
Symptoms of a shorted blower motor resistor. Missing speeds and blown fuses are common.
How to test all speeds blower motor resistor. Measure the coils and move the switch through each speed.
Checking continuity through resistor windings. Use ohms and look for low readings. OL means open.
Common resistor pack failures. Burned coils loose plugs and blown thermal fuses.
Understanding blower motor resistor circuit. Power flows from fuse to switch to resistor to motor to ground.
How to read a blower motor resistor wiring diagram. Follow color codes and pin labels.
Safety precautions when testing car electronics. Disconnect the battery and avoid live shorts.
Expected readings for blower motor resistor. Low ohms on high and higher ohms on low. Values vary by car.
What happens if you drive with a bad blower motor resistor. You lose speeds. Defrost may suffer.
Impact of bad resistor on AC performance. Airflow drops and comfort suffers.
When to replace blower motor with resistor. Replace both if the motor draws too much or the plug is burned.
Troubleshooting car heating issues. Start with fuses and the resistor. Then check the motor and the switch.
No blower motor fan speed. Check fuse relay resistor motor ground and the control unit.
Bad ground causing resistor issues. A weak ground heats wires and cuts speed.
How to test blower motor itself. Use the direct 12V test and listen for noise.
Power at blower motor connector and ground at blower motor connector. Back-probe the plug and confirm both.
Checking for a short in blower motor wiring. Look for rubbed spots and melted sections.
Understanding pulse width modulation blower control. The module pulses voltage to vary speed.
Digital vs analog blower motor resistor. Digital uses an electronic module. Analog uses coils.
How to check power at HVAC control unit. Back-probe the output wires from the Control Panel.
Blower motor resistor temperature sensor. Some modules have a temp sensor to avoid overheat.
Common vehicles affected by resistor failure. Many Ford, GM, Honda, and Toyota models show this pattern.
Why is my fan speed erratic. Loose connections or failing resistor coils often cause it.

Troubleshooting with a wiring diagram and expected values

Use a wiring diagram blower motor resistor for your exact car. It shows pin IDs and colors. It helps you do a voltage test blower motor resistor and a continuity test on the right pins.

Here is a fast table to plan your meter settings.

Task	Meter Setting	Leads Go Here	Notes
Check battery feed	VDC	Input pin to ground	Expect near 12V
Check switch output	VDC	Output pins while moving speeds	Voltage should change with speeds
Check ground	Test light or VDC	Ground pin to battery +	Bright light or 12V
Check thermal fuse	Ohms	Across fuse legs	Near 0 Ω means OK
Check resistor coils	Ohms	Input to each output	Low Ω on high higher Ω on low

Realistic lifespan and costs

Many OEM resistors last 5 to 7 years or 75,000 to 100,000 miles under normal use.
Heat vibration moisture and high motor draw can cut that down.
DIY parts cost can range 15 to 75 dollars for an Aftermarket Part. OEM Part can be 50 to 150+ dollars.
Shop labor can range 50 to 150+ dollars based on access and rates.

If your resistor keeps failing do this:

Check the motor amperage draw.
Replace the Cabin Air Filter.
Fix corroded connectors and grounds.
Use better parts and check the Relay if used.

Brand notes and location tips by make

Ford and GM: Often behind the glove box near the blower. Look for two small screws.
Honda: Near the blower on the passenger side behind trim. May use a Phillips driver.
Toyota: In the HVAC housing under the dash. Access often needs glove box removal.

Some trucks place the resistor on the firewall near the HVAC System box. Look for the wiring harness plug to guide you.

PAS in action: a quick story

Problem. My friend had a car AC fan only high speed issue on his old sedan. The cabin was loud. The defrost worked only on high.

Agitate. Winter came. The windows fogged fast at idle. He had to blast the fan every time. Family rides were not fun.

Solution. We did a DIY blower motor resistor check. We found a melted connector and a blown thermal fuse. We replaced the resistor pack and cleaned the contacts. We also changed the Cabin Air Filter. All speeds came back. The car felt new.

Company insight: why design and materials matter

A strong motor and a clean circuit run cool. Cool parts last longer. Good motor cores help this. Many HVAC blowers use stacked laminations inside the Blower Motor. Better stacks cut losses and heat. That helps the resistor pack.

If you want to learn more about the metal stacks that make motors efficient read about motor core laminations. Newer BLDC blowers use advanced stators too. See how a quality bldc stator core design delivers smooth torque. For brushed motors and hybrid designs the stator core lamination quality affects heat and noise. These parts use precision electrical steel laminations that keep losses low. You can dive deeper into this topic here: electrical steel laminations.

These choices matter. Less core loss means a cooler motor. A cooler motor draws less current. The resistor runs cooler too. That can stop repeat failures.

FAQs

How to check if blower motor is bad or resistor. Bypass the resistor and power the motor with 12V. If it runs strong the motor is good and the resistor or control is suspect.
Where is blower motor resistor located. Under the dash on the passenger side near the blower or behind the glove box in most cars.
Can a bad blower motor resistor drain battery. Not by itself. A stuck Relay or a short can cause a drain.
Why is my blower motor resistor always failing. The motor draws too much power or the wiring has high resistance. Fix the root cause.
How long does a blower motor resistor last. Often 5 to 7 years with normal use.
Is there a resistor in cars with automatic climate control. Many use a PWM control module instead of coil resistors.

References

OEM Service Information and Wiring Diagrams. Vehicle Manufacturer portals for Ford GM Honda Toyota.
Standard automotive electrical testing practices. Multimeter use and voltage drop testing.
General industry data from repair shops and mechanics on common HVAC failures.

Key takeaways

The Blower Motor Resistor controls fan speeds with simple coils or a PWM module.
Classic sign of failure. No fan speed except high or missing lower speeds.
Do a visual check first. Look for burned parts and corrosion.
Test with a multimeter. Verify power ground and resistance.
Never bypass the thermal fuse in a live car. It is there for safety.
If the resistor tests good check the Blower Motor, fuses, Relay, fan speed switch, and HVAC Control Unit.
Fix root causes. Clean the Cabin Air Filter and repair weak grounds and wiring.
Choose quality OEM parts when you can. They often last longer.
Better motor core design lowers heat. That helps the resistor live longer.
Take your time. Work safe. You can fix this with basic tools.

How to Check a Blower Motor Resistor: A Step-by-Step DIY Diagnostic Guide
