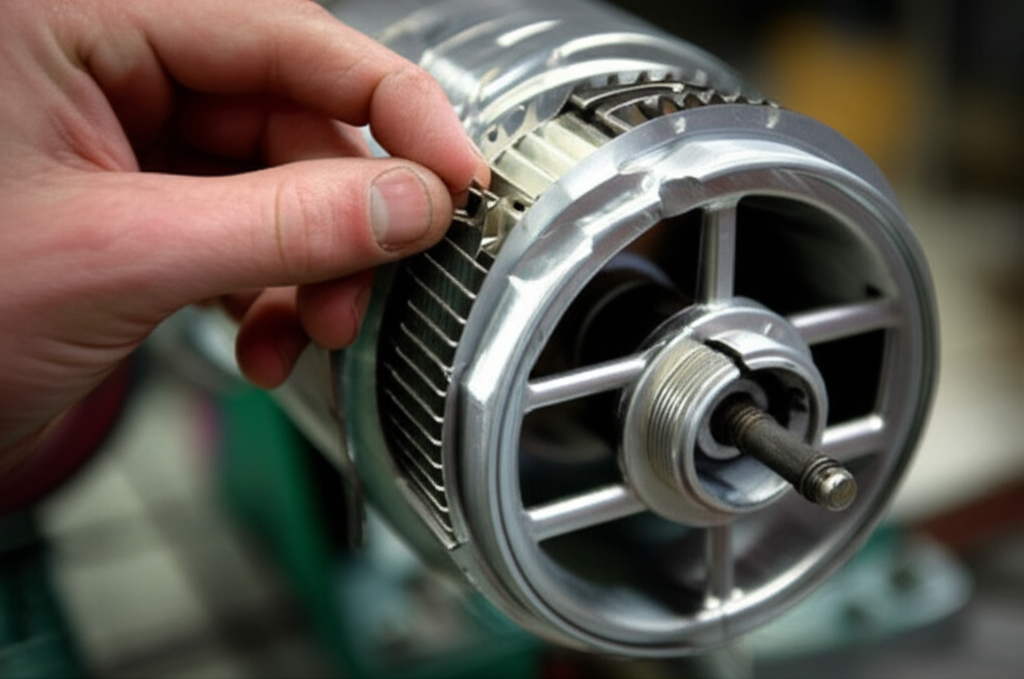

How to Balance a Squirrel Cage Fan: A Step-by-Step Guide to Quiet Your HVAC and Boost Efficiency

This guide shows you how to balance a squirrel cage fan in clear steps. You will cut noise and vibration and save energy. I share what to check first, what tools to use, and how to do static and dynamic balance. You will know when to DIY and when to call a pro.

Table of Contents

• Introduction: Why balance matters
• What is a squirrel cage fan
• Do you hear noise and feel shaking
• What safety steps come first
• What tools do you need
• How to reach the blower and wheel
• How to clean and inspect
• How to do static fan balance
• How to use test weights
• How to reassemble and test
• When to call a pro
• How to prevent problems
• Helpful data and facts
• A short case story
• FAQ
• Key takeaways
• References

Introduction: Why balance matters

You want less noise. You want smooth airflow. You want your HVAC system to last. When the squirrel cage fan gets out of balance it makes noise and shakes the whole unit. That hurts bearings and raises energy use. I have fixed many fans at home and in shops. The fix often starts with cleaning dust and lint. Then I use a simple static balance. You can do it too.

Problem. Your furnace blower noise keeps you up at night. The air handler fan noise rattles the ductwork. You feel excessive fan vibration and you worry about damage.

Agitate. An unbalanced blower wheel can cause fan bearing wear and fan housing vibration. It can lead to decreased HVAC efficiency and premature fan failure. You will pay more for energy and repairs if you let it run this way.

Solution. Follow this simple fan balancing procedure. You will reduce fan noise and extend the motor life. You will improve HVAC system efficiency and comfort.

What is a squirrel cage fan

A squirrel cage fan is a type of Centrifugal Fan. People also call it a blower. It sits in your Furnace or Air Handler inside your HVAC System. The round Blower Wheel has many blades. As it spins it creates Airflow through your Ductwork.

This kind of fan can run in Residential HVAC, Commercial HVAC, and even as an Industrial Fan. When it is in balance it is quiet. When it is out of balance you hear Noise and feel Vibration. That is called Rotational Imbalance. It can cause Resonance in the Housing and the cabinet.

Do you hear noise and feel shaking

Let’s spot unbalanced fan symptoms. You may notice:

• Loud humming, rattling, or thumping
• Cooling fan noise or heating fan vibration
• Furnace fan rattling and air conditioner fan shaking
• Fan housing resonance and cabinet buzz
• Reduced or inconsistent airflow with air flow issues in the fan
• Fan performance issues like weak vents
• Worn fan belt sounds or a loose fan pulley
• Excessive fan vibration felt through the floor or Ductwork
• Fan motor vibration and possible fan motor alignment problems
• Premature wear on Bearings and the Shaft

Why fans vibrate. The most common cause is dirt and debris on the blades. Dirty fan blades act like tiny weights. Bent fan blades and loose components also cause trouble. Broken fan blade parts or fan shaft runout can push the wheel off center. A skewed installation can add more imbalance.

Understanding fan vibration helps you fix it for good. You look for the heavy spot on the wheel. You remove buildup and then add small balancing weights as needed.

What safety steps come first

Safety first every time. You do not want a surprise spin.

• Turn off power to the HVAC unit at the Circuit Breaker or Power Disconnect
• Use a Multimeter to confirm no live power
• Let parts cool down
• Wear Gloves and Safety Glasses
• Keep your workspace clean so you do not drop Screws into the blower

These safety precautions prevent shock and cuts. They also protect the fan motor and controls.

What tools do you need

You can balance a blower with basic tools. Here is a simple list.

• Screwdriver or Nut Driver
• Wrenches for set screws and Pulleys
• Shop Vacuum and soft brush
• Chalk or Marker for marking fan blades
• Small adhesive balancing weights or magnet balancing clips
• A few washers and strong tape as test weights
• Flashlight
• Gloves and Safety Glasses
• Multimeter

For advanced work you may also use:

• Tachometer to check fan speed impact
• Stroboscope to see blade position while spinning
• Accelerometer or a vibration sensor fan kit for vibration analysis

These tools make static fan balance easy at home. Pros use a balancing machine for fans and do field balancing fans with instruments.

How to reach the blower and wheel

• Find the Furnace or Air Handler
• Remove the front panel
• Remove the blower compartment cover

Now you will see the squirrel cage blower. The Blower Wheel sits in the Housing. You will also see the Fan Motor and the Shaft. If you use Belts and Pulleys check them for wear. A worn fan belt or loose fan pulley adds to the shake.

Tip. Take photos as you go. Mark wire positions and note screw sizes. This makes reassembling the squirrel cage fan fast and safe.

How to clean and inspect

Cleaning is the first line of defense. I start here because 70 to 80 percent of the time dirt is the cause.

• Fan blade cleaning: Use a soft brush and vacuum to remove Dust, Lint, and Debris from each blade
• HVAC blower wheel cleaning: Clean both sides of the blades and the end rings
• Cleaning blower components: Wipe the Housing and motor shell
• Check for Rust or Corrosion on the wheel and Housing

Now inspect:

• Inspecting fan blades: Look for bent or broken blades
• Fan component inspection: Check Screws and set screws for tight fit
• Checking fan bearings: Spin by hand and listen for rough spots
• Inspecting fan shaft: Look for wobble that may show fan shaft runout
• Loose components: Gently tug wire harness and motor mounts

If you hear grinding the Bearings may be worn. If the motor hums and will not spin the Fan Motor may need replacement. If the shaft looks bent you may need fan motor replacement or a new wheel.

How to do static fan balance

Static balance is simple and safe. It works well for Residential HVAC and many small fans.

• Rotate the wheel by hand
• Let it stop
• Mark the bottom with chalk
• Repeat several times

If the wheel always stops at the same point that is the heavy spot fan. The goal is to balance the heavy side with a small weight on the opposite side.

This DIY fan balance method uses the trial weight method. You place a tiny weight and test. You adjust until the wheel stops at random points.

How to use test weights

You can use adhesive balancing weights or magnet balancing clips. You can also tape a small washer as a test weight.

• Placement: Add a small weight on the opposite side of the heavy mark
• Re-test: Spin the wheel again and let it stop
• Adjust: If the heavy spot shifts too far you added too much or placed it wrong
• Move the weight along the rim until the wheel stops at random
• Secure: When it feels right secure the weight with strong Adhesives or a clamp that will not fly off

Where to put fan weights. Place them on the flat rim near the blades. Keep them clear of the Housing. Do not block airflow. Start small. It is easy to add more. It is hard to fix if you add too much.

This is balancing a centrifugal blower at rest. If you still feel vibration after you power up you may need dynamic fan balance. That is done at speed.

How to reassemble and test

• Tighten all Screws
• Put the blower back in the Housing
• Set the panels in place
• Restore power at the breaker
• Turn on the fan

Listen. Do you hear fan noise reduction. Feel the cabinet. Is the excessive fan vibration gone. Check vents for steady airflow. If you still hear thumping you may need to repeat your balance steps. If the noise changes as speed changes you may have a resonance problem in the fan housing or duct.

Tip. Use a Tachometer to record speed. If your fan runs too fast it may excite resonance in the cabinet. This can happen in Industrial ventilation maintenance and in Commercial exhaust fan balance jobs. Fan speed impact matters.

When to call a pro

Sometimes you hit a wall. It is okay to call an HVAC Technician.

Call a pro if:

• Persistent vibration after DIY attempts
• Bent Shaft or bent blades you cannot fix
• Bad Bearings or motor hum that points to Fan Motor problems
• You need dynamic balance for high speed fans
• You run Commercial HVAC or an Industrial Fan that must meet strict limits

Pros use Vibration Analysis with an Accelerometer. They find exact angles and weight amounts. They may use a balancing machine for fans. They do field balancing fans on site with a Stroboscope. They can also check fan motor alignment with laser tools. They can correct fan housing resonance with dampers.

You can also get help if you need ventilation fan repair in a big shop or home ventilation fan repair that needs parts.

How to prevent problems

Preventative maintenance fans tasks pay off.

• Replace air filters on time
• Clean the blower wheel every year
• Check Belts and Pulleys for wear and tension
• Tighten loose screws and motor mounts
• Watch energy consumption and comfort level fan noise

A clean and balanced blower can prolong fan life. It can prevent fan damage and extend motor life. You also protect indoor air quality fan performance because airflow stays even.

I like to set a simple schedule. I check my blower in spring and fall. I keep a small log. That is easy predictive maintenance. It helps me spot common fan problems early.

Helpful data and facts

Here are common findings from the field.

A short case story

Last winter my neighbor called me. His furnace sounded like a train. The HVAC system noise echoed through the Ductwork. He feared a big bill. We opened the panel and found a squirrel cage fan caked with Lint and Dust. We did fan impeller cleaning with a soft brush. We checked a few Loose Components. We then did static balance. We marked the heavy spot. We used the trial weight method with a tiny washer and tape. We found the sweet spot and then used adhesive balancing weights to lock it in.

The result. Fan noise reduction was clear. The home felt calmer. He saw lower energy use on his bill. We also talked about preventative steps and how to quiet a noisy fan if it starts again. He keeps spare filters now. Small steps add up.

Do quality parts help cut vibration

Yes they do. The motor and core quality matter. High grade laminations help the motor run smooth. They lower losses. Smooth torque means less shake and less heat. When you choose good motor core laminations you support steady performance in the Fan Motor. The right stator core lamination and the right rotor core laminations help the motor start and run with less buzz. Good electrical steel laminations also cut stray vibration and noise.

I like to say this. Balance the wheel and feed the motor good parts. That is fan system optimization. It keeps Residential HVAC quiet. It helps Commercial HVAC meet comfort goals. It keeps an Industrial Fan in the safe zone.

Step-by-step checklist

Use this fan balancing procedure as your quick guide.

• Turn off power at the Circuit Breaker or Power Disconnect
• Wear Gloves and Safety Glasses
• Remove panels to reach the squirrel cage blower
• Clean dirty fan blades with a brush and vacuum
• Inspect for bent blades and broken parts
• Check Bearings and motor mounts
• Spin the wheel by hand and mark the heavy spot
• Place a small test weight on the opposite side
• Re-test and adjust position and weight
• Secure with Adhesives or magnet clips
• Reassemble and test under power
• If vibration remains check Belts and Pulleys
• If still rough consider dynamic fan balance or call a pro

Extra tips and common pitfalls

• Do not use big weights at first. Start small
• Keep weights clear of the Housing to avoid rubbing
• Use tape only as a test. Use proper adhesive balancing weights to finish
• Check for fan bearing wear if noise remains after balance
• Watch for fan housing vibration that points to cabinet Resonance
• If you see Corrosion or heavy Rust consider a new wheel
• If the Shaft looks bent or has runout do not keep running the fan

Questions I often hear

• What causes fan wobble. Dirt and bent blades cause most wobble. Loose mounts and worn bearings also add wobble
• How to stop fan rattling. Clean the wheel and tighten screws. Balance the heavy spot. Replace worn belts
• How to fix a vibrating fan fast. Clean first. Then static balance. Re-test under power. If it still shakes call a pro for dynamic balance
• How to balance a small fan. Use the same static steps on table fans and small blowers
• Balancing large industrial fans. These need dynamic tools. Use field balancing fans and a trained tech

Where DIY ends and pro work starts

DIY covers cleaning and static balance. You can also swap a worn belt or tighten a loose fan pulley. You can replace simple parts like Screws and Adhesives. This handles common fan problems in homes.

Pro work covers fan motor replacement and bearing swaps. It covers dynamic fan balance and vibration analysis with an Accelerometer and Stroboscope. It covers fixing fan motor alignment and cabinet Resonance. It also includes commercial fan balancing and industrial fan vibration jobs.

PAS in action

• Problem. You hear thumping and see the cabinet shake
• Agitate. The Bearings fail early and bills rise and comfort falls
• Solution. Clean blades and static balance the wheel then test under power. If needed get professional fan balancing

Simple table: Tools and what they do

Company note

Better parts make better fans. If you build or repair motors you already know this. Stable laminations help the motor create smooth torque. Good steel lowers loss and heat. That means the blower wheel does not fight a jerky motor. It spins true and runs quiet.

• Choose high quality motor core laminations for long motor life
• Pick precision stator core lamination for steady fields
• Match with accurate rotor core laminations for smooth spin
• Use proven electrical steel laminations to cut loss and heat

These choices help reduce vibration at the source. They also support predictive maintenance plans in Commercial HVAC and Industrial ventilation maintenance programs.

FAQ

Q: Can I balance a blower without taking it out

A: Yes with care. You can access and clean it in place in many units. You can do static balance by turning the wheel by hand

Q: Do I need a balancing kit for fan work

A: Not always. You can use washers and tape as test weights. Get adhesive weights for the final fix

Q: Will balancing fix all HVAC system noise

A: No. Duct leaks and cabinet panels can buzz. Motors can hum. Check the whole HVAC System

Q: Is dynamic balancing needed for all fans

A: No. Static balance works on many Residential HVAC blowers. High speed or large blowers often need dynamic balancing

Q: How often should I do furnace fan maintenance

A: Check and clean once or twice a year

Key takeaways

• Balance starts with a clean blower wheel
• Static balance solves most home jobs
• Use small test weights and adjust slowly
• Check Belts Pulleys Bearings and the Shaft
• Call a pro for dynamic balance or damage
• Good laminations and motor parts help cut vibration at the source

References

• ASHRAE Handbook HVAC Systems and Equipment
• U.S. Department of Energy resources on fan and motor efficiency
• SKF and other bearing manufacturer guides on vibration and bearing life
• Industry training manuals on centrifugal blower maintenance and balancing

Extra detail to help you win the fight against vibration

Let’s tie it all together with more plain talk and a few more tips that save time.

• Fan balancing weights work best when clean. Wipe the rim before you stick them
• Marking fan blades helps you track changes. I number four points on the rim then I test at each point
• If you see a large heavy spot fan pattern you may have mud or wet debris. Clean again until the metal shines
• If the housing hums you may have fan housing resonance. Try a small rubber pad under the blower mounts
• If the motor moves side to side check fan motor alignment and tighten the base
• If you hear belt squeal you likely have a worn fan belt or a loose fan pulley. Fix belt issues before you balance the wheel
• If airflow feels weak you may have air flow issues in the fan or clogged filters. Fix airflow then balance
• If your building has industrial ventilation maintenance going on ask for a quick vibration sensor fan check. A simple Accelerometer reading can spot trouble early
• For commercial fan balancing in a store or school set a planned downtime window. Dynamic balance is fast when the tech has clear access

Final note on scope and fan types

This how-to covers:

• Squirrel Cage Fan in a Furnace or Air Handler
• Exhaust fan balancing in kitchens and baths
• Ventilation fan repair in small shops
• How to balance a small fan at home

It also points to:

• Balancing a centrifugal blower in big air handlers
• Balancing large industrial fans with dynamic tools
• Field balancing fans in critical rooms

The steps stay the same. Clean first. Inspect. Static balance. Test. Then escalate if needed.

By now you can spot unbalanced fan symptoms and fix them. You can handle troubleshooting fan noise with confidence. You can do DIY fan balance to extend life. You can prevent fan damage and keep comfort high. You can also speak with a tech about dynamic fan balance if you need it. That is how you extend fan operational life and keep your home or shop quiet and efficient.
