How Many Amps Does a Stator Produce? Understanding Stator Output & Performance

Short summary: You want to know how many amps a stator makes. I’ll show you what a stator is, why amps matter, how to test output, and what numbers to expect on motorcycles, ATVs, boats, snowmobiles, and generators. You will learn how to fix low output and how to size your system for lights, heated gear, GPS, winches, and more. This is worth reading because it can save you a dead battery, a tow bill, and a lot of stress.

• Problem: Your battery keeps dying. The lights dim at idle. Your bike or ATV stalls on a ride. You feel stuck.
• Agitate: You charge the battery. It dies again. You replace a part. The problem comes back. You lose time and money.
• Solution: Test the stator. Learn the right amps and volts. Match your load. Pick the right parts. Use quality materials. Ride with confidence.

Table of Contents

• What is a stator and why do amps matter?
• How does a stator produce electricity?
• What affects stator output amps?
• What are normal amp ranges by vehicle?
• How do I find my stator’s amp rating?
• How do I test stator amps and volts?
• What do my test results mean?
• Why is my stator output low?
• How much power can my system handle?
• Should I upgrade my stator or regulator?
• Real case study: low VAC and a dead battery
• Key specs you should know
• FAQs
• References
• Summary

What is a stator and why do amps matter?

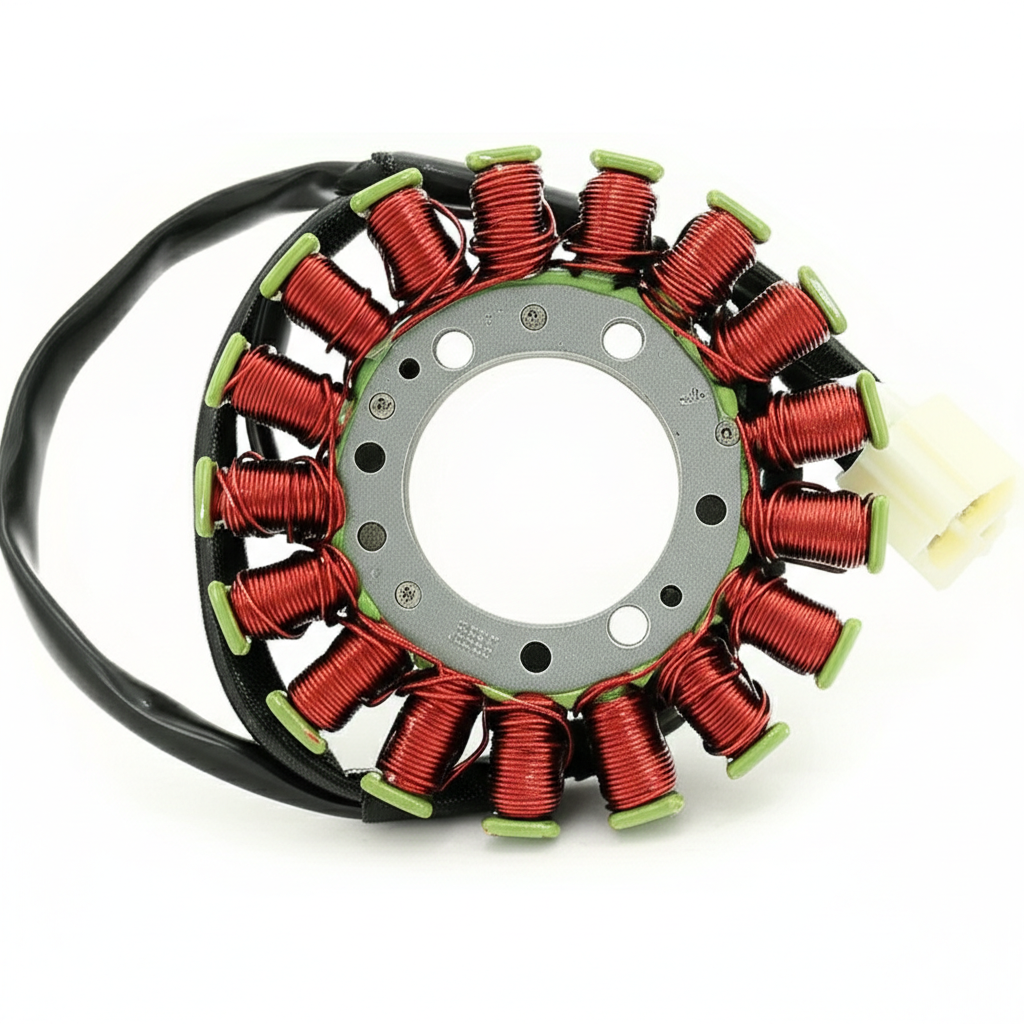

A stator is the fixed set of coils in your charging system. The rotor or flywheel spins around it. The magnets pass over the coils. That motion makes AC electricity. Then the rectifier-regulator turns AC into DC. The DC charges the battery and powers the lights, ECU, CDI, fuel injection, and more.

Why do amps matter? Amps show how much current your stator can deliver. You need enough amps to run your electrical load and to charge your battery. Not enough current leads to a weak battery and a bike that will not start. Too much draw can overload the system and cook the windings.

A stator sits at the heart of your charging system. It feeds your Battery with DC current after the Rectifier-Regulator does its job. That is why stator output amps, stator current output, and charging system amps matter so much.

How does a stator produce electricity?

This happens by electromagnetic induction. The rotor or flywheel carries Permanent Magnets. As the Engine spins, the magnets sweep past the Winding and Coil on the Iron Core. The change in the magnetic field creates AC (Alternating Current). The Rectifier-Regulator uses Diodes and sometimes a Thyristor in a Series Regulator or Shunt Regulator to make DC (Direct Current). That DC charges the Battery and powers the Lighting System, Ignition System, and other Electrical Load.

Some vehicles use a Magneto style setup. Others work like an Alternator stator inside a case. Many modern bikes and ATVs use Three-Phase Power for smooth output. Some small scooters and dirt bikes use Single-Phase Power. The number of phases matters for smoothness and capacity.

You can think of it like a water wheel. The magnets act like buckets on the wheel. The coils act like the generator. More wheel speed means more flow. In a stator, higher RPM (Revolutions Per Minute) means higher AC voltage and more power output of stator.

What affects stator output amps?

• Engine RPM: Output rises with RPM. Stator output at idle can be low. Stator output at higher rpm grows. You often see full charging near cruising speed.
• Stator design and construction: More coils, the number of stator coils, the stator winding configuration, and the wire gauge stator all matter. A thicker Copper Wire with the right turns makes a big change. The stator core material amps capacity matters too. The Iron Core design and core lamination stacks reduce losses. Higher quality stator core lamination and motor core laminations can boost efficiency and cut heat.
• Magnetic field strength: Stronger flywheel magnets or proper excitation give more output. Weakened magnets hurt. A Permanent Magnet or Electromagnetic field can set the limit.
• Load on the electrical system: Heated grips power draw, auxiliary lights power draw, winches, GPS, and a stereo add up. More load pulls more amps. That can push the stator hard.
• Operating temperature: Heat raises Resistance. Hot windings lose efficiency. That can lower stator maximum amperage and stator efficiency.

When you ask how many amps should a stator put out, you need all these parts in view. A high output stator can still fall short if the cooling is poor or if the Rectifier-Regulator cannot pass the needed voltage regulator amps.

What are normal amp ranges by vehicle?

Let’s get to numbers. These are typical stator output specs at cruising RPM. Your bike or ATV may differ. Always check the Manufacturer Specifications.

• Motorcycles:
• Small bikes (125cc to 250cc): 10 to 25 amps. Typical stator amp output is modest for a small electrical system.
• Mid-size bikes (400cc to 750cc): 20 to 35 amps. Many are three phase. They feed lights and small add-ons.
• Large cruisers or touring (1000cc+): 30 to 50+ amps. They power heated gear, stereo, GPS, and more.
• ATVs and UTVs: 15 to 45 amps. It depends on engine size and extras like winches or light bars.
• Snowmobiles: 15 to 40 amps. Cold rides need hand warmers and strong headlights.
• Marine Outboard Motors: 8 to 60+ amps. Bigger motors support more electronics.
• Small Engine Generators (Portable): 10 to 100+ amps. This depends on wattage. A 2000W / 120V unit gives about 16.7A AC.
• Automotive Alternator Stators: 60 to 250+ amps. Cars need big output for modern systems.

What is normal stator output? Many healthy systems show more than 25 to 30 VAC per leg at 3000 to 5000 RPM before rectification. That AC stator output then becomes DC current through the regulator.

How do I find my stator’s amp rating?

Start with the service manual. The manual gives the stator output specs, the open circuit stator test, and the resistance checks. If you lost the manual you can look up your stator output specs on reputable OEM or aftermarket sites. You can also check online parts diagrams or the part page for your specific vehicle model amps.

Sometimes you find stator markings on the part. That is rare but worth a look. Manufacturer Specifications tell the truth. Do not guess. Your electrical system capacity depends on that rating.

When you plan upgrades, you need to know the ideal stator output and the maximum stator output current. That keeps your charging system safe.

How do I test stator amps and volts?

You can measure stator current output in a few ways. Most shops start with AC voltage. It is simple and safe. Here is a quick guide.

Safety first:

• Wear eye protection and gloves.
• Keep loose clothing away from the engine.
• If the manual says to disconnect the Battery, do it. Follow the book.

Tools needed:

• Multimeter with AC Volts and Ohms.
• Clamp meter if you will check actual current on the DC side. A clamp makes testing rectifier amps and dc current output from regulator safer.

AC voltage test:

Resistance (Ohms) test:

You can also test with a clamp meter on the DC side to see battery charging amps under load. Add lights and heated grips. Watch how the system reacts. This shows the load on stator amps in real life.

What do my test results mean?

If your AC voltage is low at the test RPM, your stator may be weak. Low stator amp output and low VAC often go together. If one leg shows much lower AC volts than the others, that leg has trouble. That hints at burnt or damaged windings.

If resistance is too high you may have a bad joint. If resistance is near zero you could have a short. If you read to ground you may have a ground fault. Open circuits or short circuits both cause trouble.

If AC tests pass but the battery still does not charge, check the Rectifier-Regulator next. The voltage regulator amps may be low. Diodes can fail. A bad regulator causes undercharging or overcharging. Both harm the battery. Do not misdiagnose a bad rectifier as a bad stator. Many people do.

Why is my stator output low?

• Burnt or damaged windings: Heat and age take a toll. Insulation cracks. The stator overheats. You may see stator melting symptoms.
• Weakened magnets in the flywheel: A drop in magnetic field cuts output. Flywheel magneto amps suffer.
• Overheating: Poor airflow and high draw build heat. Hot coils lose power.
• Short circuits or open circuits: A damaged Winding or Coil breaks the circuit. That kills output.
• Rectifier/Regulator failure: A failed unit drags down the system. You may blame the stator when the regulator is the problem.

A clean, tight, cool system makes a big difference. The quality of the stator core material amps matters too. Good laminations cut eddy currents and reduce heating. You can see this in well made electrical steel laminations and precise rotor core lamination.

How much power can my system handle?

Think in watts. Watts equal Volts times Amps. The power output of stator depends on RPM, design, and load. If your bike makes 30A at 14V DC, that is about 420W. Subtract what the engine needs to run. The ECU, CDI, fuel injection, and the ignition need their share. The Lighting System takes some too. The rest is for accessories.

Add up your gear:

• Headlights and tail light
• Heated grips power draw and jacket
• Auxiliary lights power draw
• GPS, phone charger, or stereo
• Winch on an ATV or UTV

Compare this to your charging system amps and battery charging amps. Leave headroom. Do not push your stator to the edge. That burns it up.

If your current load is close to the max, you may need an upgraded stator output. A high output stator or a better regulator helps. That is true for a stator for modern ATV amps and a stator for heavy duty applications too.

Should I upgrade my stator or regulator?

If you added many lights or heated gear, your stock stator may fall short. You might seek an upgraded stator output or a stator for electric start on a vintage bike. A stator for vintage motorcycle amps can be low by today’s standards. A stator for scooter amps is often small. Choose a part that matches your load.

Check the number of phases. A three phase stator amps output runs smoother. It can handle more power. Pick a regulator that can pass the current. Some systems use a Series Regulator to reduce heat. Others use a Shunt Regulator. Match the type to your stator and your needs.

Core quality matters. Better laminations can lift efficiency. They also run cooler. That helps in summer heat and in slow traffic. If you build or spec custom parts, look for high grade stator core lamination and tight motor core laminations. The details inside the core matter as much as big wires on the outside.

Real case study: low VAC and a dead battery

A rider on a 2005 Honda CBR600RR had a dead battery again and again. The battery tested fine. The tech ran an AC voltage test at 5000 RPM with the stator unplugged. It read only 15 VAC per leg. The manual called for 45 to 55 VAC. That explained the issue. The stator could not keep up. The bike’s systems and battery needed more. The fix was a new stator. After that the bike charged at the nominal 30 amp output. The lights were bright. The starts were clean. The problem was gone.

This shows why you test first. If you only swap the regulator you miss the true cause. Testing stator amp output and AC volts saves time. It prevents guesswork.

Key specs you should know

You will hear many terms when you test or shop.

• Stator output voltage: This is AC before the rectifier.
• DC output after the regulator: This is what charges the battery.
• Stator winding resistance: It tells you if the coils match the spec.
• Stator current rating: This is the max current. Do not exceed it.
• Stator short circuit amps: In a fault you may see a surge. Good fuses and wiring save you.
• Open circuit stator test: You test VAC with no load. Compare to spec.
• Voltage drop across stator and wiring: Bad connectors or corrosion cause drops. Clean them.
• Number of phases: Single phase stator amps are lower in many small bikes. Three phase stator amps are smoother and higher.

You also need to know why stator output varies. RPM changes output. Heat changes resistance. Load changes duty. The regulator type matters. A shunt unit dumps extra power as heat. A series unit limits current. Both affect operating temperature.

Stator amp output across applications and conditions

What about your exact bike, ATV, or boat?

Every model is different. A stator for specific vehicle model amps will be listed in the service data. A stator for modern ATV amps can be higher than older units. A stator for snowmobile amps needs to feed warmers. A stator for lighting circuit on a dirt bike can be split from the charging line. Some systems use a flywheel magneto amps setup for ignition and a separate coil for lights.

If you add more load you can think about increasing stator output. You can also trim draw. LED lights use less. Turn off heated gear when not needed. Balance the system. That helps your battery charging amps stay strong.

Where do materials and build quality fit in?

The core and laminations matter a lot. Good stacks reduce eddy currents and heat. That helps at idle and at cruise. It helps your stator efficiency. Better steel and tight slots lift performance. If you spec parts for a BLDC motor or alternator, you can look into a stator core lamination matched to your design or a precision motor core laminations stack. Rotor quality also matters, and a clean rotor core lamination layout keeps losses low.

For many builds, you also look at the steel grade. This is where electrical steel laminations help reduce core loss. Lower core loss means less heat for the same power. Less heat means more stable output. That means your stator maximum output current stays closer to the spec over a long ride.

How to test like a pro step by step

• Before you start: Read the service book. It shows the test points and the right RPM. It shows the expected AC volts and the resistance window in Ohms.
• AC test: Unplug the stator. Measure AC between legs. Check each pair on a three phase stator. Raise RPM. Compare to spec. Write down the results.
• Resistance test: Engine off. Probe coil to coil. Check coil to ground. Look for open circuit or shorts.
• Regulator test: Plug the stator in. Measure DC at the battery. Rev to the spec. Most systems charge around 13.8 to 14.6V. If the stator VAC looked good but DC is low, the regulator likely failed.
• Clamp test: Place the clamp around the positive lead at the battery. Turn on loads. Watch battery charging amps change.

Interpreting results is simple once you practice. High AC and low DC points to the rectifier/regulator. Low AC from the stator tells you the coils or magnets are weak. No AC means a broken wire or a short inside.

PAS recap for a clean solution

• Problem: Low stator amp output gives you dead batteries, dim lights, and poor starts.
• Agitate: You miss rides. You lose time. You waste money on guesswork parts.
• Solution: Test. Confirm how many amps does a stator produce on your machine. Use the AC voltage test. Check the stator winding resistance. Read the Manufacturer Specifications. Size your electrical load. If you need more, choose a high output stator. Match a good regulator. Pick quality core materials and laminations to boost efficiency and cut heat.

FAQs

Q: How many amps does a stator produce on a motorcycle at cruise

A: Small bikes often make 10 to 25 amps. Mid-size bikes make 20 to 35 amps. Big touring bikes make 30 to 50+ amps.

Q: What is a good stator amp reading at idle

A: Many systems make much less at idle. Often under 15 amps. Charging improves at 3000 to 5000 RPM.

Q: How do I measure stator current with a multimeter

A: You usually measure AC volts from the stator. Then you measure DC current with a clamp meter after the regulator. A direct in-line current test can be risky if you are not trained.

Q: Can a bad stator overcharge the battery

A: Overcharging usually comes from a bad regulator. A failing rectifier/regulator can allow too high voltage.

Q: What causes low stator output

A: Heat damage, short circuits, open circuits, weak magnets, and poor connections. Sometimes a bad regulator drags the system down.

Q: How many amps to charge a motorcycle battery

A: Most bike batteries charge well with 2 to 6 amps. The system controls this under normal use. Use a smart charger when parked.

Q: Does a three phase stator make more power

A: It can. Three-Phase Power is smoother and can support higher loads with less ripple.

Q: What voltage does a stator produce

A: It produces AC voltage. You test in VAC before the rectifier. Most healthy units show 25 to 30+ VAC per leg at test RPM.

Q: How much power does a stator generate in watts

A: Multiply DC volts by DC amps after the regulator. For example, 14V x 30A is about 420W.

Q: Should I replace the stator or the regulator first

A: Test both. A bad rectifier/regulator can look like a bad stator. Do the AC test and the DC test. Then decide.

References

• OEM motorcycle, ATV, snowmobile, and outboard service manuals for stator output specs and test RPM
• Manufacturer Specifications for rectifier/regulator voltage and current ratings
• Fluke and Klein clamp meter user guides for safe current measurement
• SAE guidelines and basic texts on Electromagnetic Induction and alternator systems

Summary: The big points to remember

• A stator makes AC power that a Rectifier-Regulator turns into DC for your Battery.
• Output depends on RPM, stator design, magnet strength, load, and heat.
• Typical outputs: 10 to 25A for small bikes, 20 to 35A for mid-size, 30 to 50+A for big bikes. ATVs and UTVs run 15 to 45A. Snowmobiles run 15 to 40A. Outboards run 8 to 60+A.
• Test smart. Use the AC voltage test. Use resistance checks. Compare to the book.
• Low AC means a stator or magnet problem. Good AC and low DC means a regulator problem.
• Add up your load. Leave headroom. Do not overload the system.
• Quality laminations and core design help with efficiency and heat. Consider precise stator core lamination, tight motor core laminations, robust rotor core lamination, and high grade electrical steel laminations.
• If you need more current, look into a high output stator and a matched regulator.
